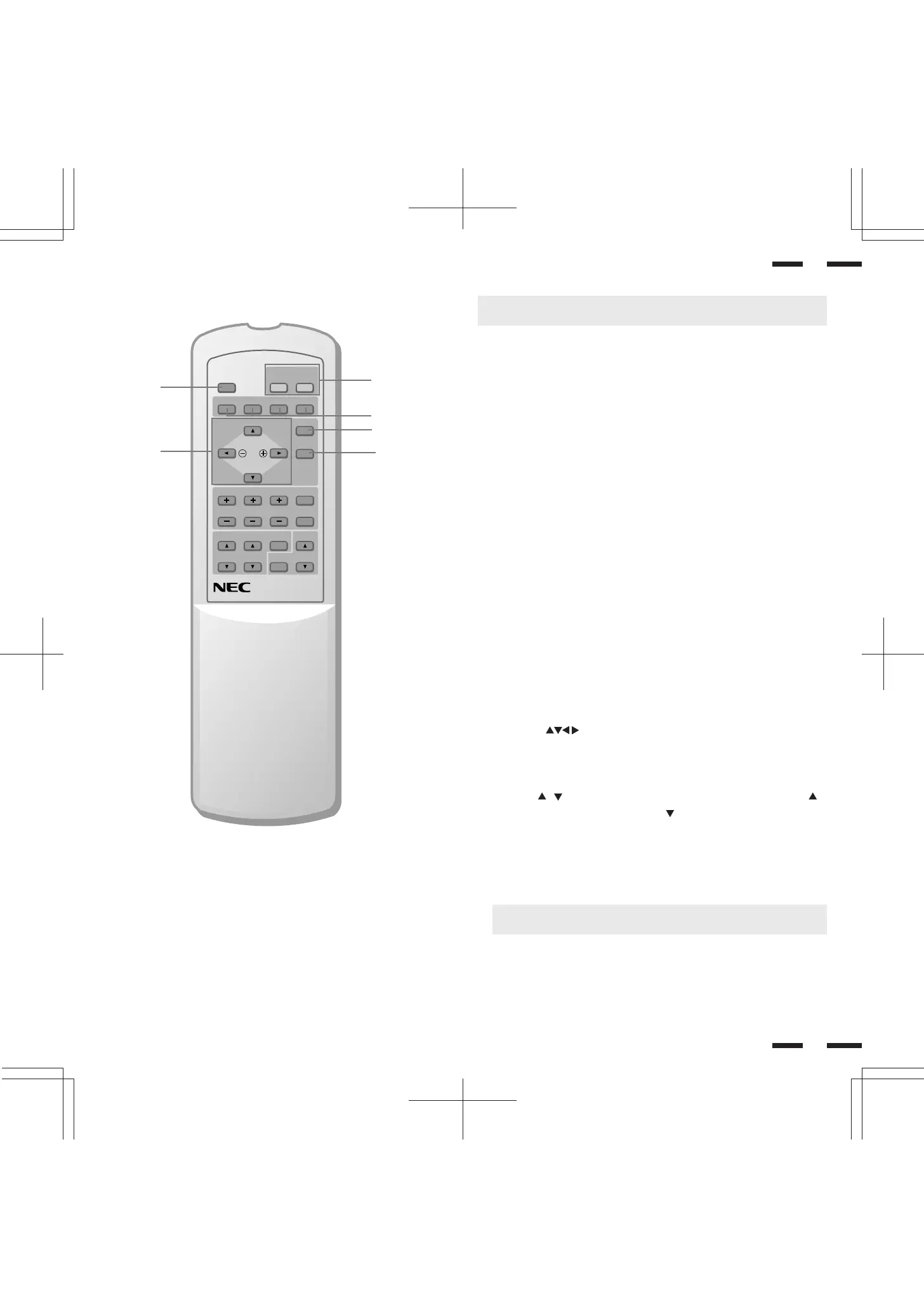

Remote Control Unit
NOTE: When not in use the remote control unit is conveniently stowed in the
holder on the rear panel.
1 POWER ON/OFF
Press POWER ON to turn the monitor on when the POWER/STANDBY
indicator is lit amber.
Press POWER OFF to turn the monitor off and the monitor will go into the
standby condition.
2 DEGAUSS
Press to demagnetize the picture tube in the manual operation. See also
page 27.
3 Input Select
VIDEO 1 ..... Press to select an NTSC, PAL, SECAM or M-NTSC
compatible video source from a VCR, laser disc player, document camera,
or an S-Video source from a VCR connected to the VIDEO 1 IN terminal.
VIDEO 2 ..... Press to select an NTSC, PAL, SECAM or M-NTSC
compatible video source from a VCR, laser disc player, document camera,
or an S-Video source from a VCR connected to the VIDEO 2 IN terminal.
RGB 1 ....... Press to select an RGB video source from a computer
connected to the RGB 1 IN terminal.
RGB 2 ....... Press to select an RGB/Component video source from a
computer, NEC scan converter or Y,PB,PR/Y,CB,CR signal source
connected to the RGB 2 IN terminal.
3
4
OSM Control
4 POSITION/CONTROL
POSITION( ) ...... Adjusts the vertical position of the image up and
down, and the horizontal position of the image from left to right.
CONTROL ( + / - ) .....Moves the bar in the + or - direction to increase or
decrease the adjustment in an OSM menu.
CONTROL( / )..Select one of the controls in an OSM menu. Press to
select a higher item in the menu; press to select a lower item in the menu.
5 PROCEED
Press to access OSM.
6 EXIT
Press to exit the OSM mode. When an adjustment item is selected, a press
of this button returns to its icon selection screen.
NOTE: The direct keys such as BRIGHT, CONTRAST, WIDTH, HEIGHT,
SIDE PIN can access each control while in the OSM mode.
2
1
5
6
