NEC MultiSync XP29, XM29 Xtra - Installation; Wiring Diagram

15
DIP SW REMOTE
EXT SPEAKERS
SPEAKERS MUST HAVE
MORE THAN 5WATT RATING
IMPEDANCE 8 OHM
AC IN
SPEAKER SELECT
RIGHT LEFT
INT EXT
BNC
IN
IN
R L(MONO)
AUDIO
VIDEO 1
S
1 2 3 4 5 6 7 8
ON
RGB1
PC / EXT CTL
BNC
IN
IN
R L(MONO)
AUDIO
VIDEO 2
S
IN
IN
OUT
L(MONO)
IN
R
75
HIGH
75
HIGH
75
HIGH
75
HIGH
75
HIGH
RGB AUDIO RGB 2
THROUGH
OUT
THROUGH
OUT
THROUGH
OUT
THROUGH
OUT
THROUGH
OUT
THROUGH
OUT
THROUGH
OUT
IN
R/C
R /P R G/Y/Y B/C B P B H/CS V
EXTERNAL
CONTROL
PROCEED VIDEO 1
EXIT
VIDEO 2 RGB 1 RGB 2
POWER
/STANDBY
▼
▼

−
＋
19
20
Document camera, VCR, Video copy stand
or Multimedia application
IBM XGA/SuperVGA/VGA or
Compatibles or Macintosh G3 series
Installation
To Mini D-SUB 15 Pin input
To R,G,B,H, V
inputs (BNC)
To EXTERNAL CONTROL
(Mini D-SUB 15 Pin input)
XP29Xtra/XM29Xtra
NEC IPS 4000
Image Processor
XP29 Xtra/XM29 Xtra
Macintosh or
Compatibles
RGB Cable (supplied)
To Mini D-SUB 15 Pin input
RGB Cable (supplied)
To VIDEO IN R, L, inputs

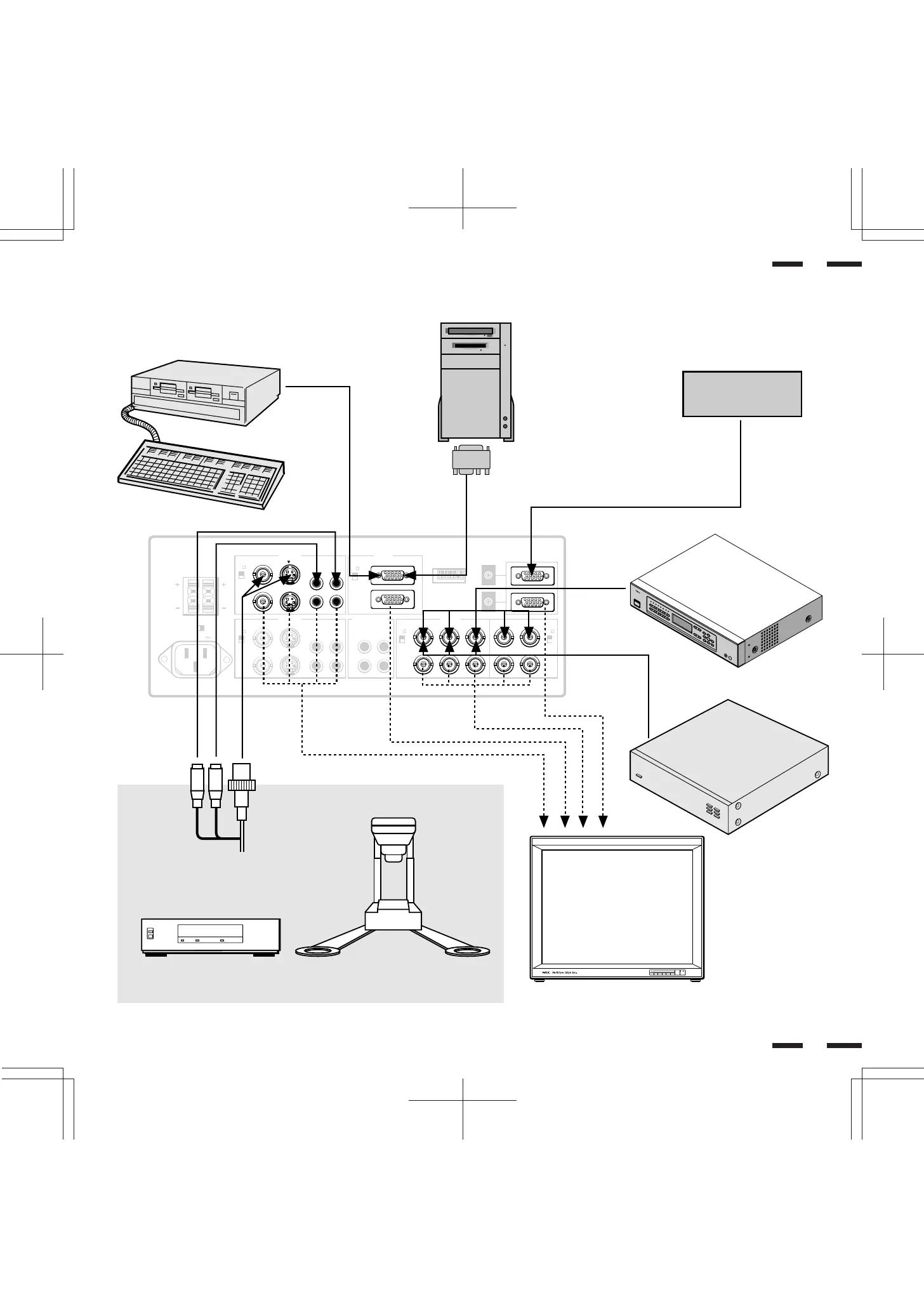

Wiring Diagram
Pin adapter for Macintosh
(supplied)
DTV Tuner
or
DVD Player
To Y/CB/CR,Y/PB/PR inputs (BNC)
