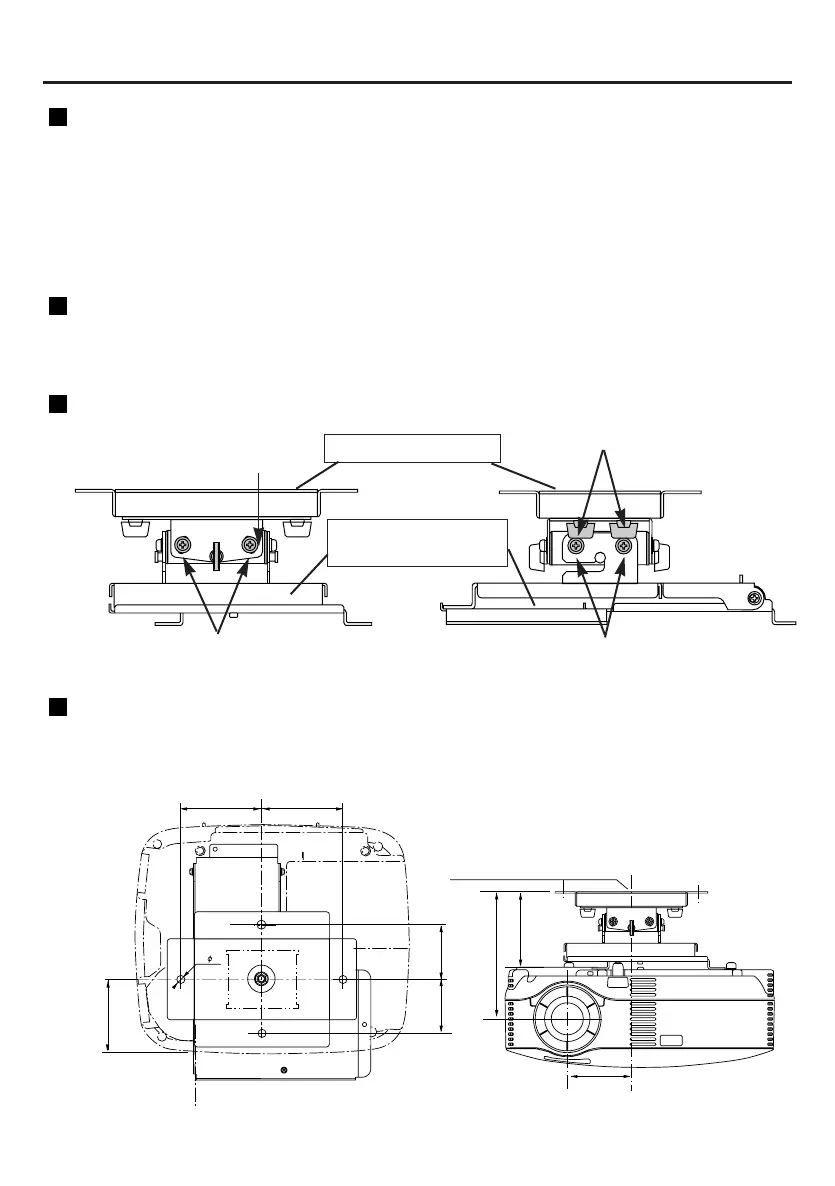

NEC NP03CM - Preparation; List of Packaged Parts; Required Tools; Names of the Parts

4
•
Distance to lens end
Center line of fixed ceiling part
Lens center
70
105.2
162.5
90 90
60 60
80.4
104 -
Preparation
List of Packaged Parts
Fixed ceiling part ...1
Projector mounting adapter ...1
Projector mounting screws (M 4)...3
Up-down angle adjustment screws (M5 ) ...4
Installation and adjustment manual ..........1
Required Tools
Phillips screwdriver
Names of the Parts
Inclination axis screws
Fixed ceiling part
Projector mounting
adapter
Left-right angle adjustment
screws
Inclination adjustment screws
Up-down angle adjustment screws
Dimensions
Fixed Ceiling Part Bolt Hole
Position Dimensions
Fixed Ceiling Part and Lens
Center Dimensions Diagram
(Unit: mm)
•
•
•
NP03CME07.3.122:15PMページ4
