1. Introduction

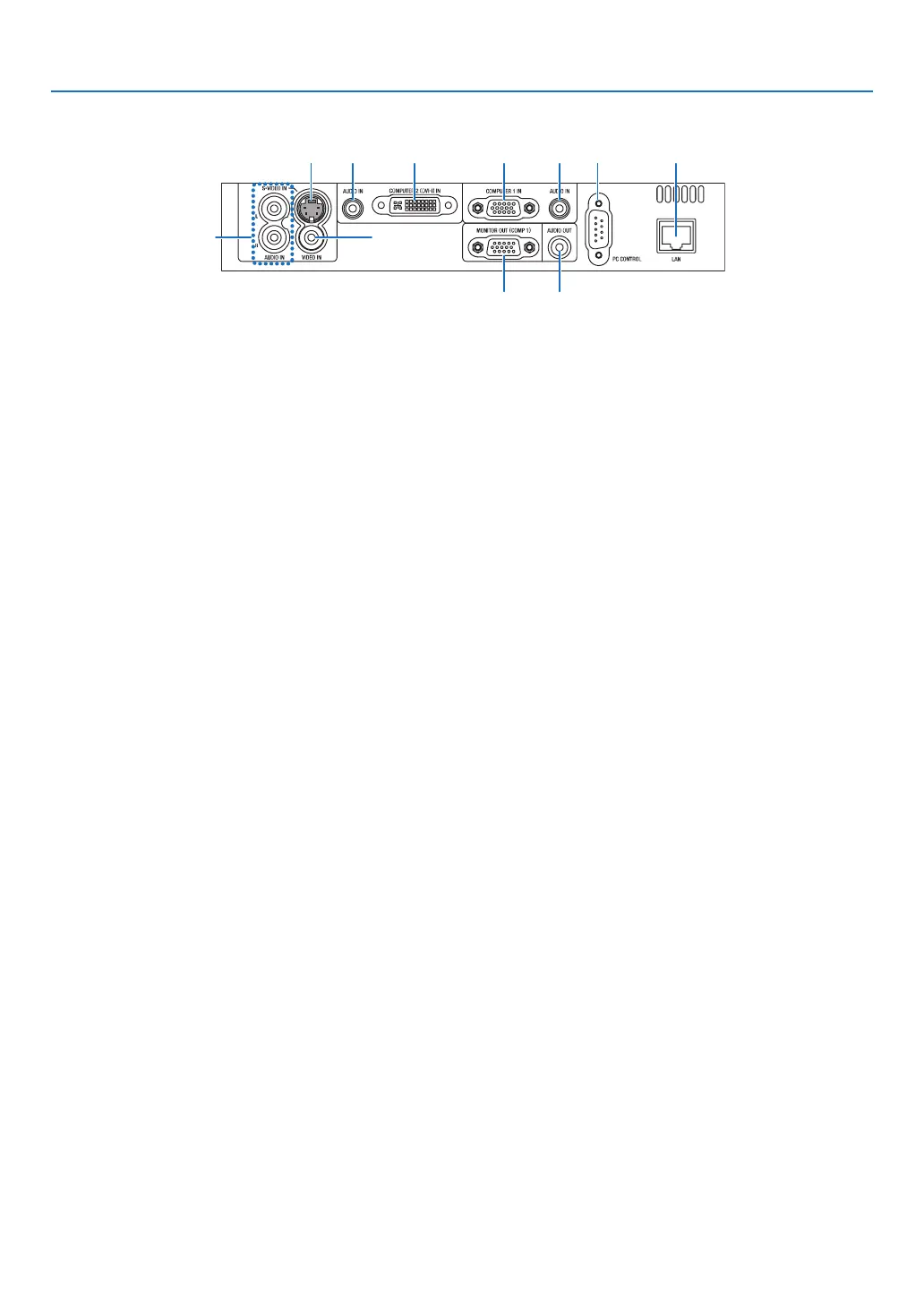

Terminal Panel Features
6
8 7
3 32 1
5 4
9 10
1. COMPUTER 1 IN/ Component Input Connector
(Mini D-Sub 15 Pin)
(→page 17, 20, 22)
2. COMPUTER 2 (DVI-I) IN Connector (29 Pin) (HDCP
compatible)
(→page 19, 20)
3. AUDIO IN Mini Jack (Stereo Mini)
(→page 17, 19, 22)
4. AUDIO OUT Mini Jack (Stereo Mini) (→page 21)
5. MONITOR OUT (COMP 1) Connector (Mini D-Sub
15 Pin)
(→page 21)
6. S-VIDEO IN Connector (Mini DIN 4 Pin)
(
→page 23)
7. VIDEO IN Connector (RCA)
(→page 23)
8. AUDIO Input Jacks L/R (RCA) (→page 23)
9. PC CONTROL [PC CONTROL] Port (D-Sub 9 Pin)
(→page 93)
Use this port to connect a PC or control system.
This enables you to control the projector using serial
communication protocol. If you are writing your own
program, typical PC control codes are on page 93.
10. LAN Port (RJ-45) (→page 24)
