2. Installation and Connections
[NP500WS]

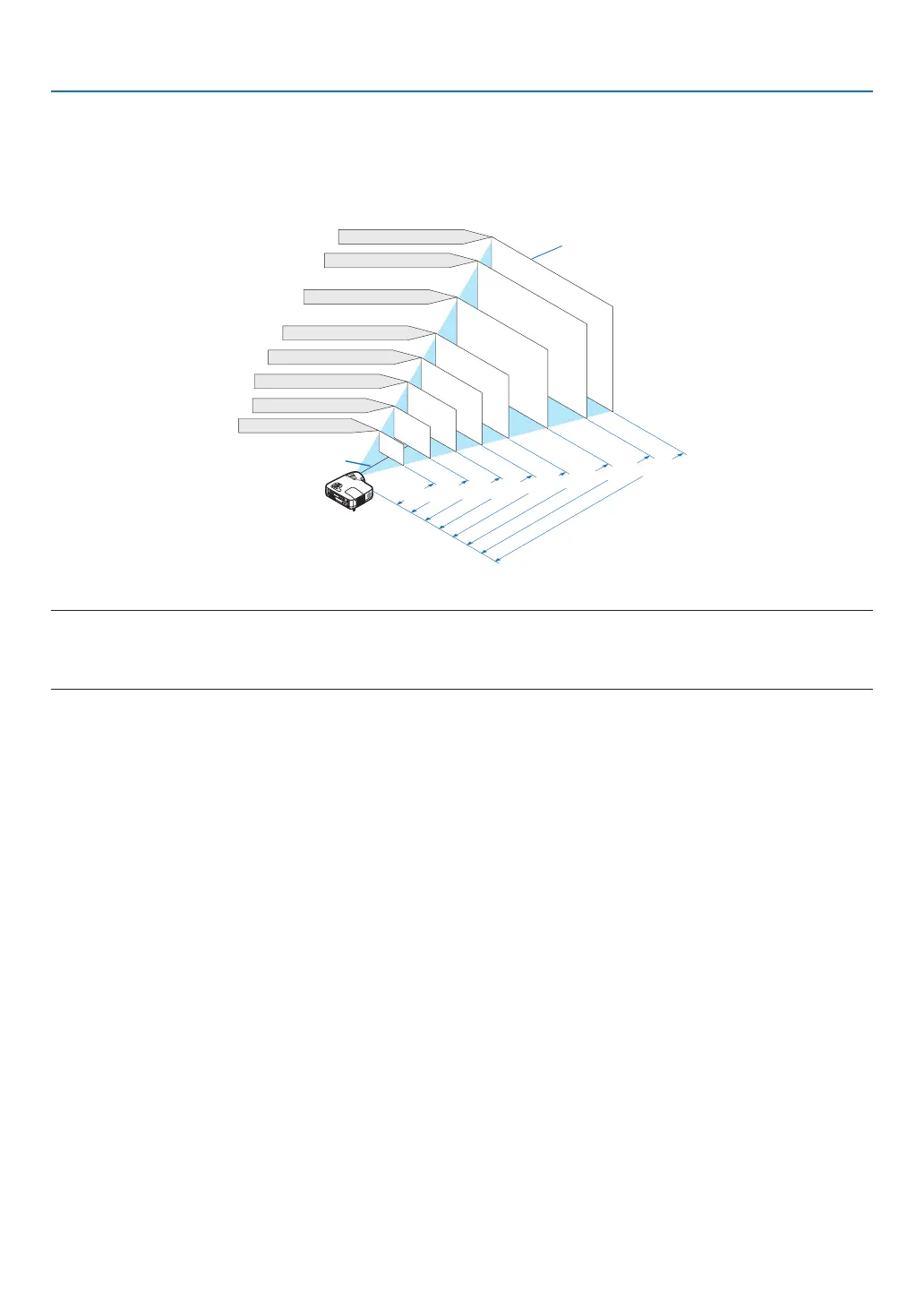

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is ap-
proximately 57" (1.45m) measured diagonally when the projector is roughly 36 inches (0.9 m) from the wall or screen.
The largest the image can be is 104" (2.6m) when the projector is about 66 inches (1.7 m) from the wall or screen.
104"
Distance
(U
nit:
m/inch
)
Lens center
Screen Size
Screen Size (Unit: cm/inch)
224.0(W)�140.0(H)/88(W)�55(H)
215.4(W)�134.6(H)/85(W)�53(H)
193.9(W)�121.2(H)/76(W)�48(H)
187.4(W)�117.1(H)/74(W)�46(H)
172.3(W)�107.7(H)/68(W)�42(H)
150.8(W)�94.2(H)/59(W)�37(H)
129.2(W)�80.8(H)/51(W)�32(H)
122.8(W)�76.7(H)/48(W)�30(H)
100
"
90
"
87"
80"
70
"
1.67/66"
1.60/63"
1.44/57"
1.39/55"
1.28/50"
1.11/44"
0.95/37"
0.90
/36"
57
"
60
"
S
E
L
E
C
T
M
E
N
U
E
X
I
T
E
N
T
E
R
S
T
A
T
U
S
L
A
M
P
A
U
T
O
A
D
J
.
S
O
U
R
C
E
F
O
C
U
S
TIP:
• Digital Zoom can result in a blurry image due to the electronic zoom.
• The Digital Zoom function adjusts the image size by up to -20%. (
→ page 32)
• For more details on throw distance, see page
16.
