NEC Display Solutions of America, Inc.
P452W/P452H/P502W/P502H Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com P452W/P452H/P502W/P502H Page 4 of 9
Lens Shift Adjustable Range
Lens Shift Range for Desktop and Ceiling Mount Application

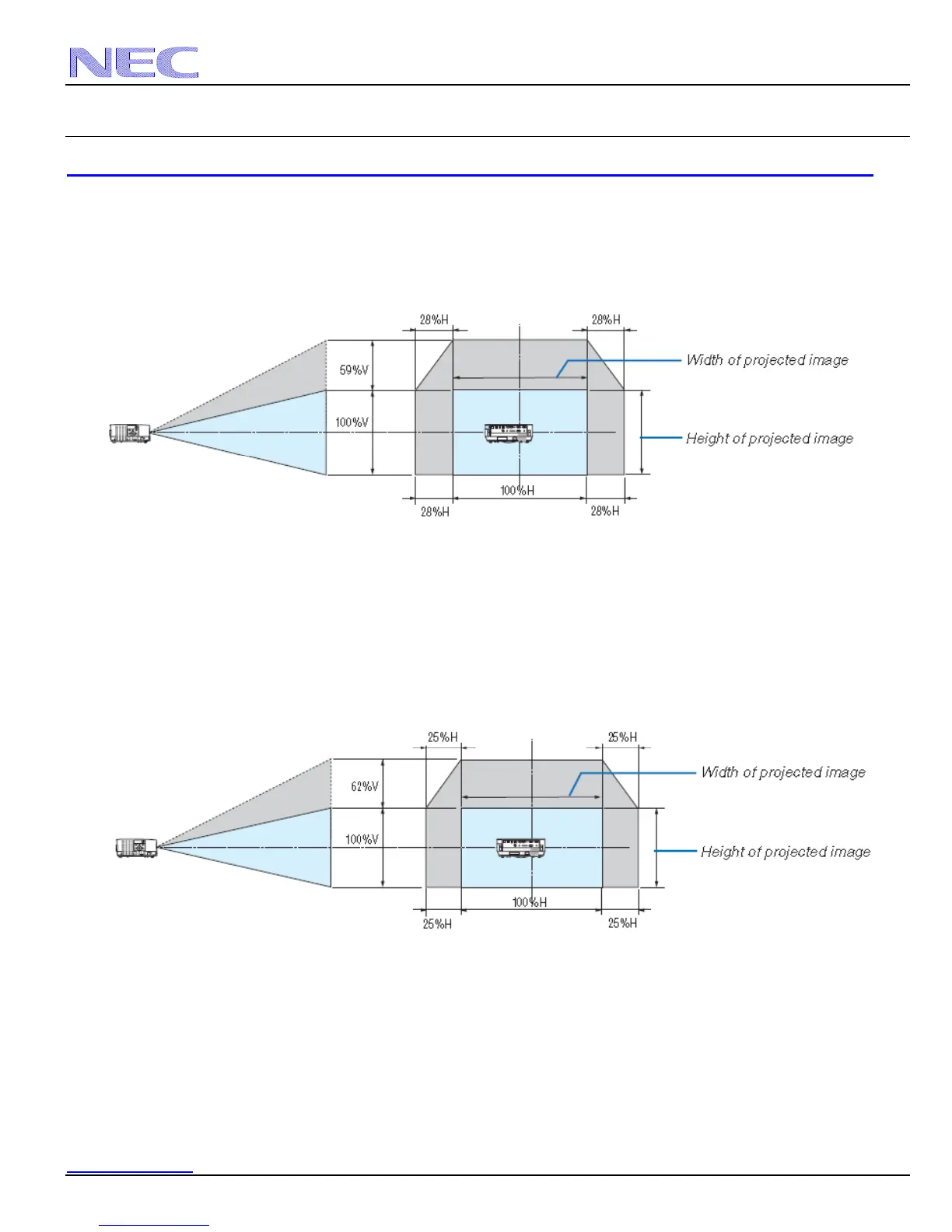

The diagram below shows the location of the image position in the lens for the P452W/P502W. The P452W/P502W has a maximum
horizontal lens shift range of +/- 28% and a maximum vertical lens shift of + 59%. The lens can be shifted within the shaded area
as shown using the normal projection position as a starting point.
Lens Shift Range for Desktop and Ceiling Mount Application
The diagram below shows the location of the image position in the lens for the P452H/P502H. The P452H/P502H has a maximum
horizontal lens shift range of +/- 25% and a maximum vertical lens shift of + 62%. The lens can be shifted within the shaded area
as shown using the normal projection position as a starting point.
Note: Projector is set out of the box at center position, which is how it is depicted above.
(H: width of projected image, V: height of projected image)
