NEC PA653U - Ceiling Mount Installation; Desktop Installation

NEC Display Solutions of America, Inc.
PA653U/PA803U/PA853W/PA903X Installation Guide
Desktop and Ceiling Mount Rev 1.5
www.necdisplay.com PA653U/PA803U/PA853W/PA903X Page 5 of 14

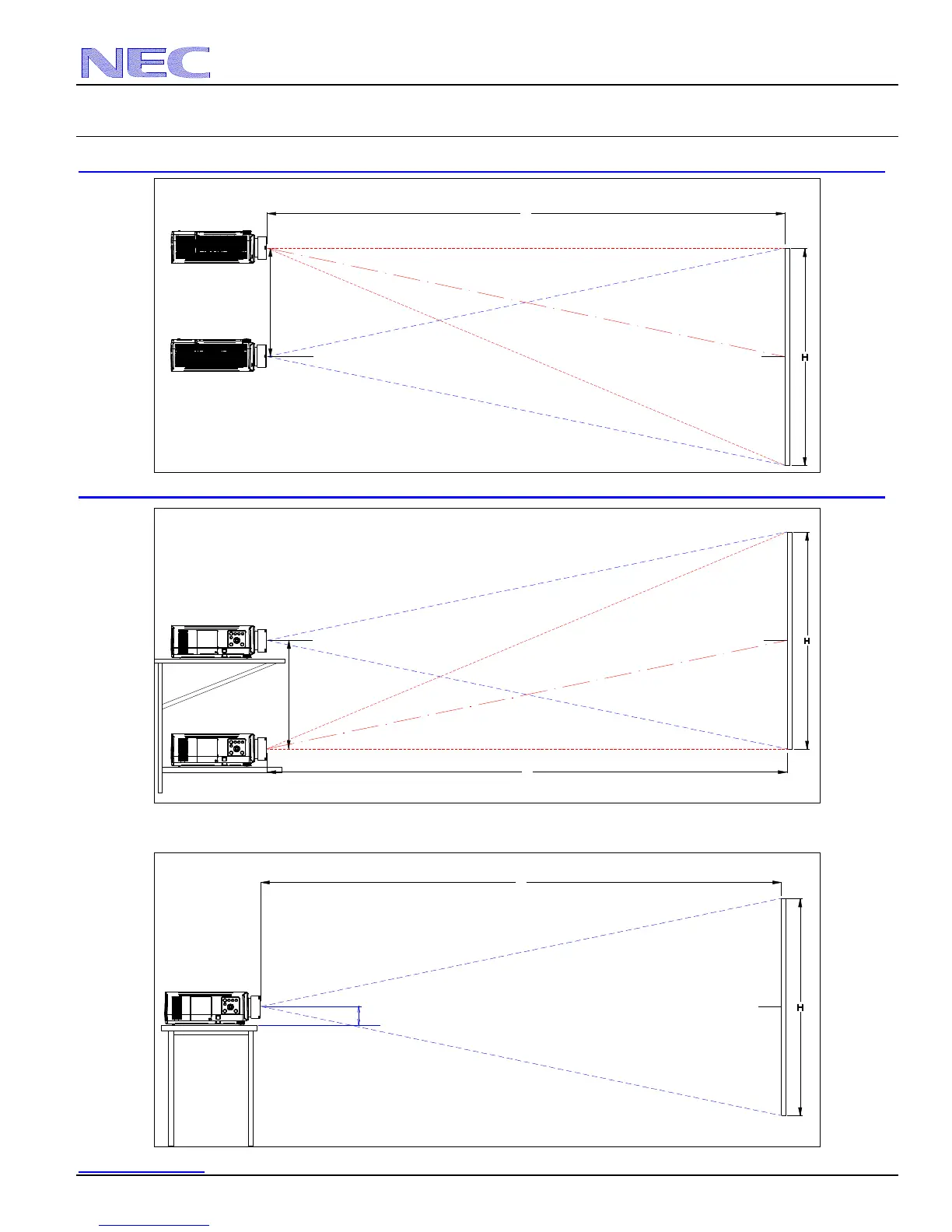

Ceiling Mount Installation
Desktop Installation
Note: Lens Shift Feature is not available to NP11FL. This lens should only be used for “zero degree”/”no-offset” applications. See
below
Screen Center
Screen Top
Shift Range
C
Screen Center
Shift Range
Screen Bottom
C
ONLY FOR NP12ZL, NP13ZL, NP14ZL, NP30ZL, NP40ZL, NP41ZL and NP42ZL LENSES
Screen Center
C
3.54
FOR USE WITH NP11FL ONLY
