Important Information

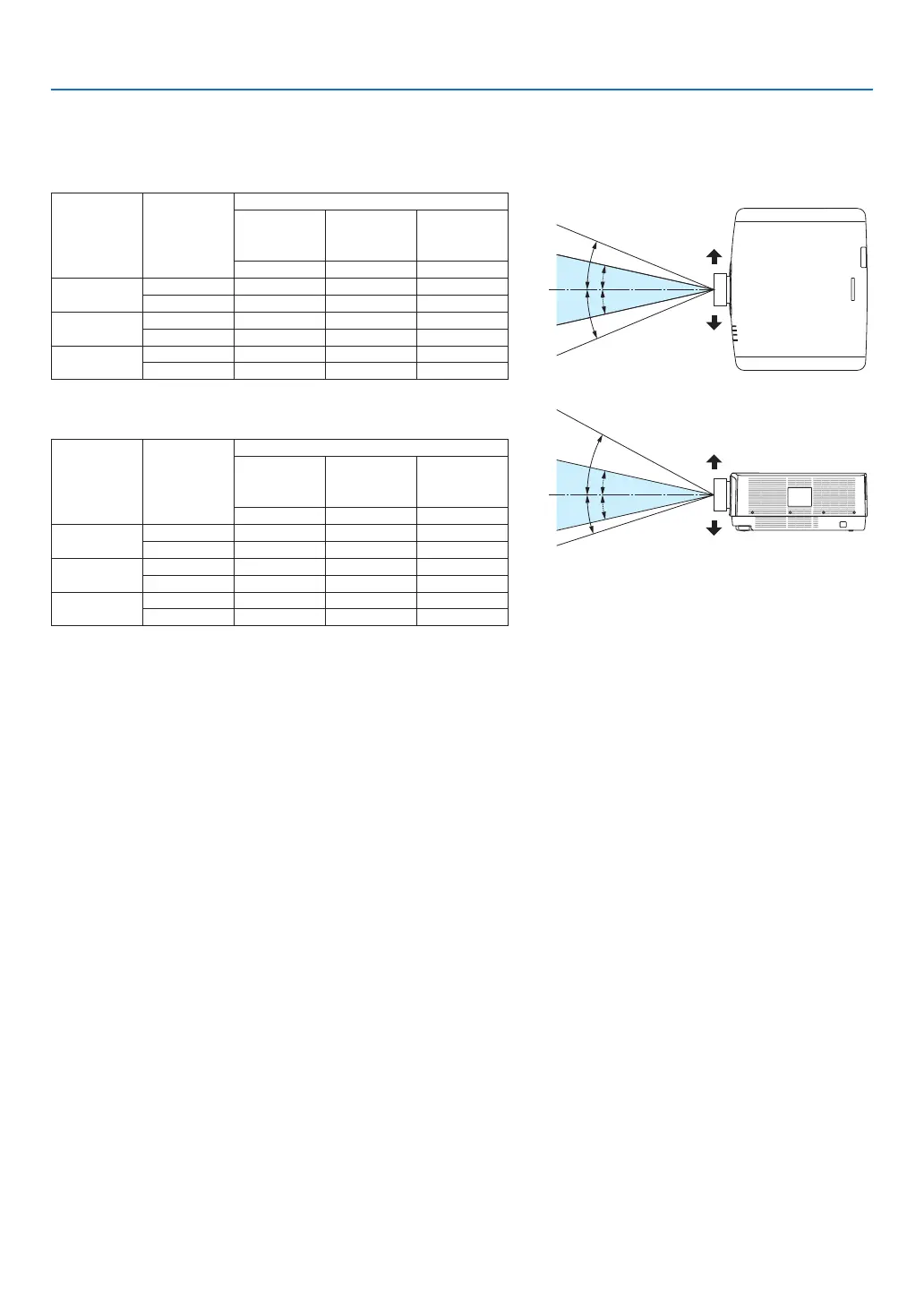

Laser light radiation range
The gure below shows the maximum radiation range of the laser light.
Horizontal angle (unit: degree)
Lens unit Zoom
Lens position
Right most
Center
(Reference
value)
Left most
HR HC HL
NP40ZL
Tele 31.7 23.8 31.7
Wide 41.0 31.9 41.0
NP41ZL
Tele 12.8 9.2 12.8
Wide 27.7 20.6 27.7
NP43ZL
Tele 6.6 4.7 6.6
Wide 12.9 9.3 12.9
Vertical angle (unit: degree)
Lens unit Zoom
Lens position
Upper most
Center
(Reference
value)
Lower most
VU VC VD
NP40ZL
Tele 29.3 18.3 21.6
Wide 38.4 25.0 29.2
NP41ZL
Tele 11.7 6.9 8.3
Wide 25.6 15.7 18.7
NP43ZL
Tele 6.0 3.5 4.2
Wide 11.8 7.0 8.4
VC
VC
HC
HC
VU
VD
HR
HL
Lower
Left
Upper
Right
