Carefully check the terminals for position and type before making any connections.
The illustration of the external equipment may be different depending on your model.
Loose connectors can result in image or colour problems. Make sure that all connectors are securely inserted into their
terminals.
Refer to the operating manual of the external device as well.
When connecting an external device, turn the power off to avoid any issues.

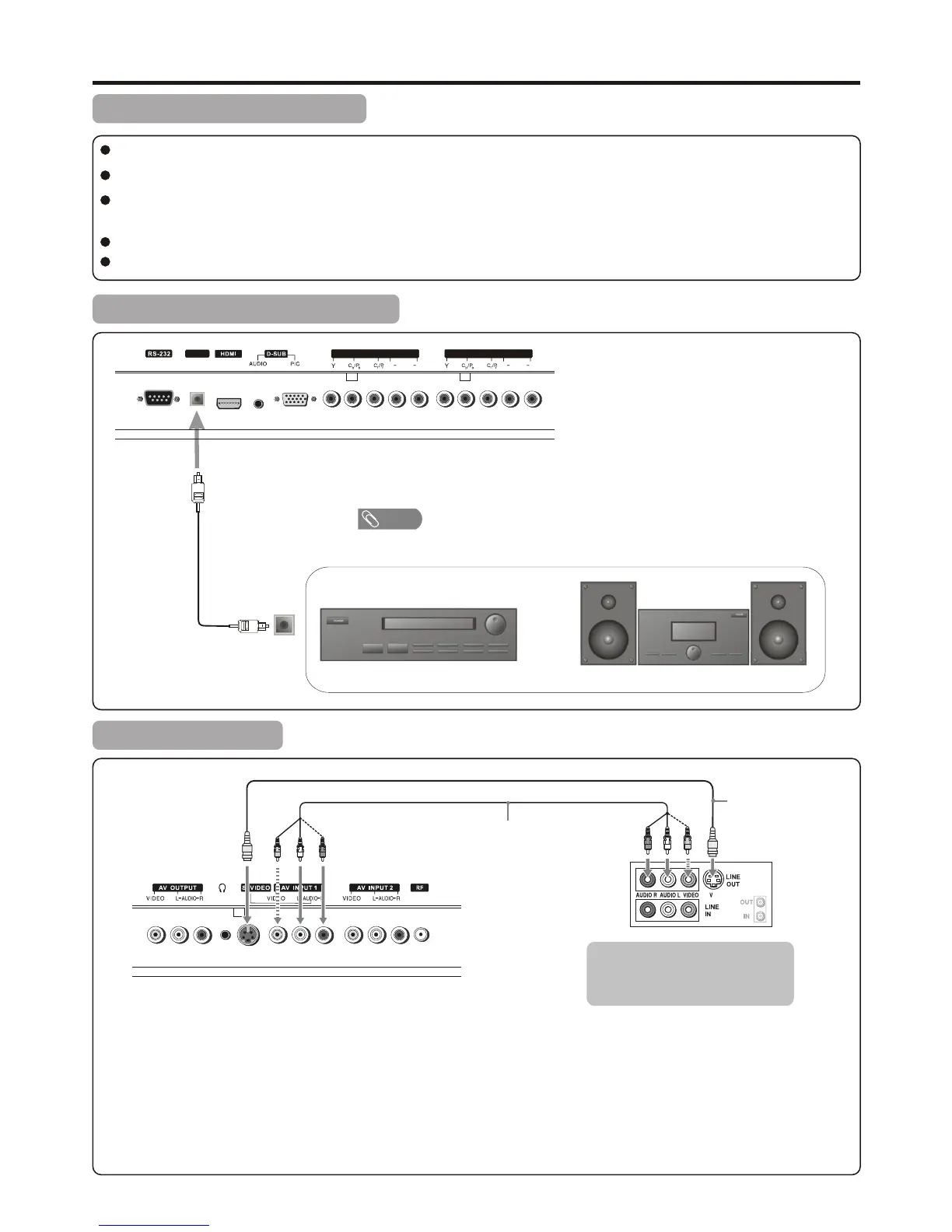

Cautions before connecting
Connections
Connecting digital optical audio
For a full Home Theater sound experience, you must connect your Hi-Fi or
Audio processor to the S/PDIF OUT(Optical) terminal on the TV rear.
The S/PDIF OUT terminal only can output digital TV program’s audio.
Audio Processor
HIFi System
OR
S/PDIF IN
(Optical)
Optical cable
COMPON ENT INPUT 1
LR
AUDIO
COMPON ENT INPUT 2
LR
AUDIO
S/PDIF
Note
Connecting a VCR
VCR
AV cable
S-VIDEO
S-VIDEO
cable
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and VCR.
Note: For better video, you can use the S-video terminal if your source supports it.
How to connect:
1. Turn on your TV, then press Source button. The Source menu opens.
2. Press 5or6to select AV1(or S-Video if using S-VIDEO terminal), then press OK to confirm.
3. Turn on your VCR , insert a videotape and press the Play button.
To play VCR
TV REAR
TV REAR
10
