4
1. Introduction

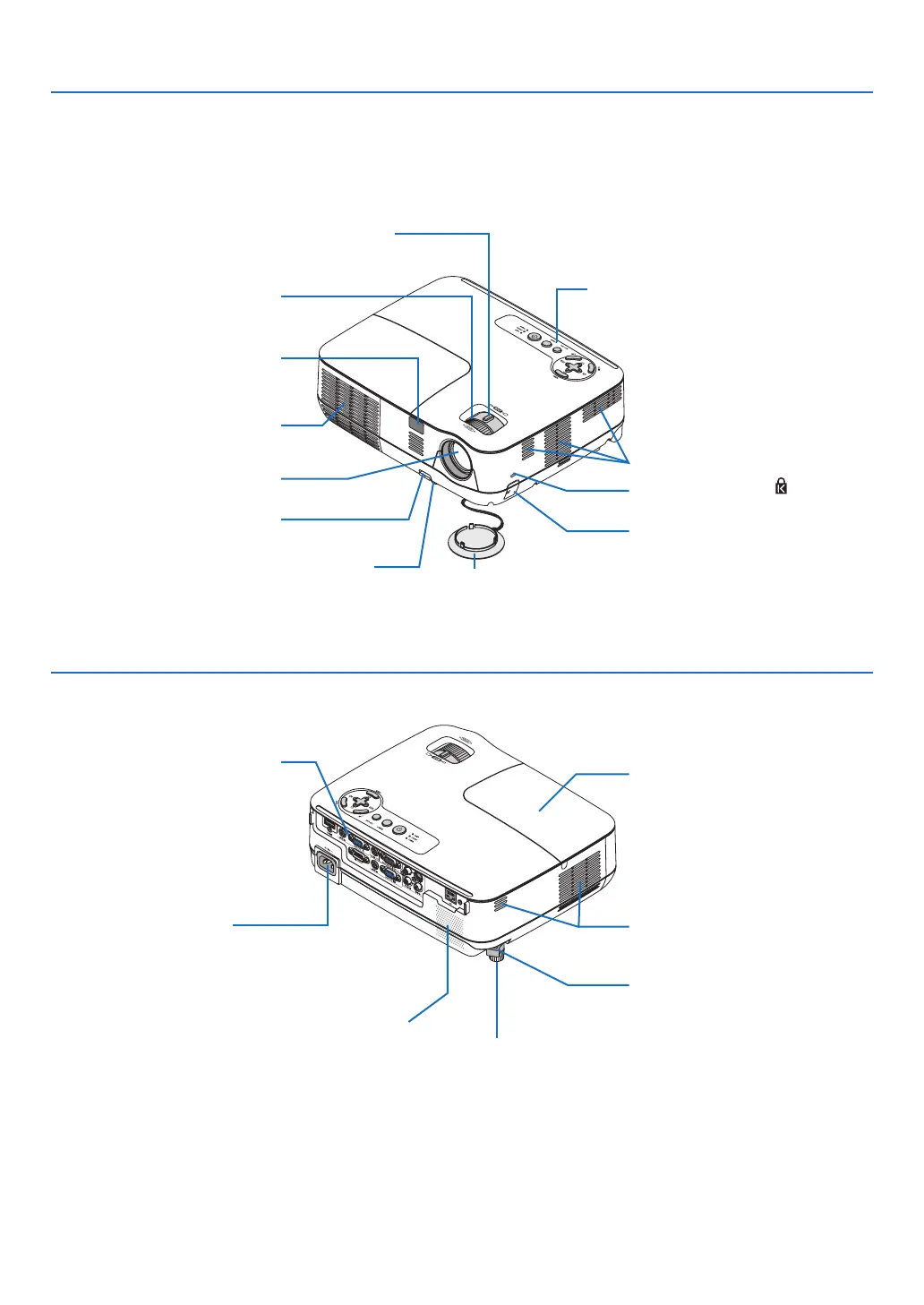

❸ Part Names of the Projector
Zoom Lever
(→ page 25)
Controls
(→
page 5)
Lens
Lens Cap
Built-in Security Slot ( )*
Adjustable Tilt Foot Lever
(→ page 24)
Adjustable Tilt Foot
(→ page 24)
Remote Sensor
(→ page 8)
Front/Top
AC Input
Connect the supplied power
cord’s three-pin plug here, and
plug the other end into an active
wall outlet. (→ page 19)
Terminal Panel
(→ page 6)
Rear
* This security slot supports the MicroSaver
®
Security System.
Ventilation (outlet)
Heated air is exhaust-
ed from here.
Ventilation (inlet)
Lamp Cover
(→ page 82)
Focus Ring
(→ page 25)
Ventilation (inlet)
Monaural Speaker (7W)
Rear Foot
(→ page 24)
Security chain opening
Attach an anti-theft device.
The security chain opening accepts
security wires or chains up to 0.18
inch/4.6 mm in diameter.
Spacer (black rubber)
To fine-adjust the height of the rear
foot, remove the spacer and rotate
the rear foot to the desired height.
