NEC VT460 - Connecting Older Video Sources; VCR;Laser Disc Player Connection; Power Cable Connection

E-16
AUDIO OUT
LR
AUDIO IN
LR
VIDEO OUT
S-VIDEO OUT
VCR/ Laser disc player

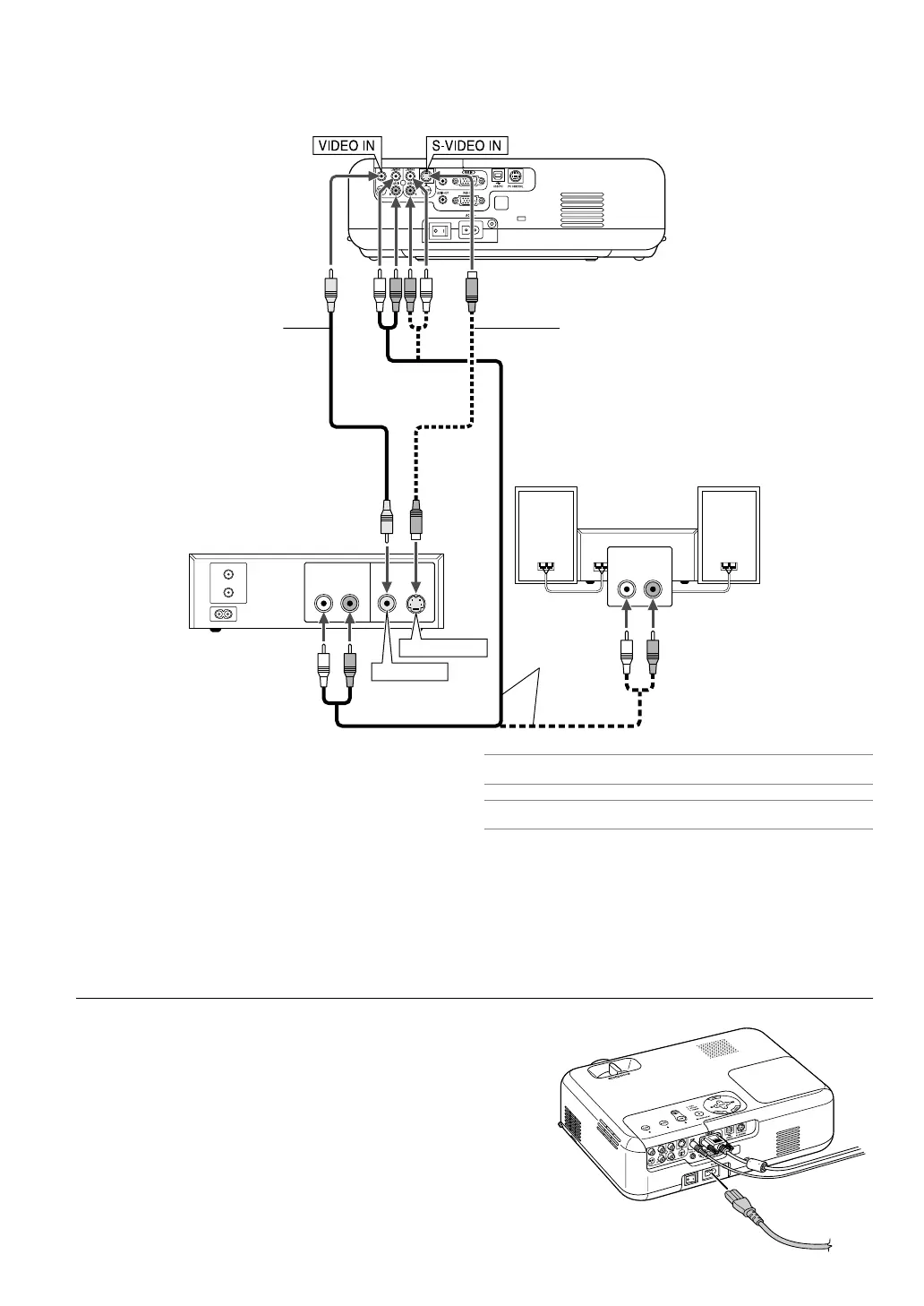

Connecting Your VCR or Laser Disc Player
Audio equipment
S-Video cable (not supplied)
Video cable (not supplied)
Audio cable
(not supplied)
Use common RCA cables (not provided) to connect your VCR, laser
disc player or document camera to your projector.
To make these connections, simply:
1. Turn off the power to the projector and VCR, laser disc player or
document camera.
2. Connect one end of your RCA cable to the video output connector on
the back of your VCR or laser disc player, connect the other end to
the Video input on your projector. Use an audio cable (not supplied)
to connect the audio from your VCR or laser disc player to your audio
equipment (if your VCR or laser disc player has this capability). Be
careful to keep your right and left channel connections correct for
stereo sound.
3. Turn on the projector and the VCR or laser disc player.
NOTE: Refer to your VCR or laser disc player owner's manual for more informa-
tion about your equipment's video output requirements.
NOTE: An image may not be displayed correctly when a Video or S-Video source
is played back in fast-forward or fast-rewind via a scan converter.
Connecting the Supplied Power Cable
Connect the supplied power cable to the projector.
First connect the supplied power cable's two-pin plug to
the AC IN of the projector, and then connect the other
plug of the supplied power cable in the wall outlet.
