NEC VT460 - APPENDIX; Projector Cabinet Dimensions; RGB Input Pin Assignments

E-35
APPENDIX

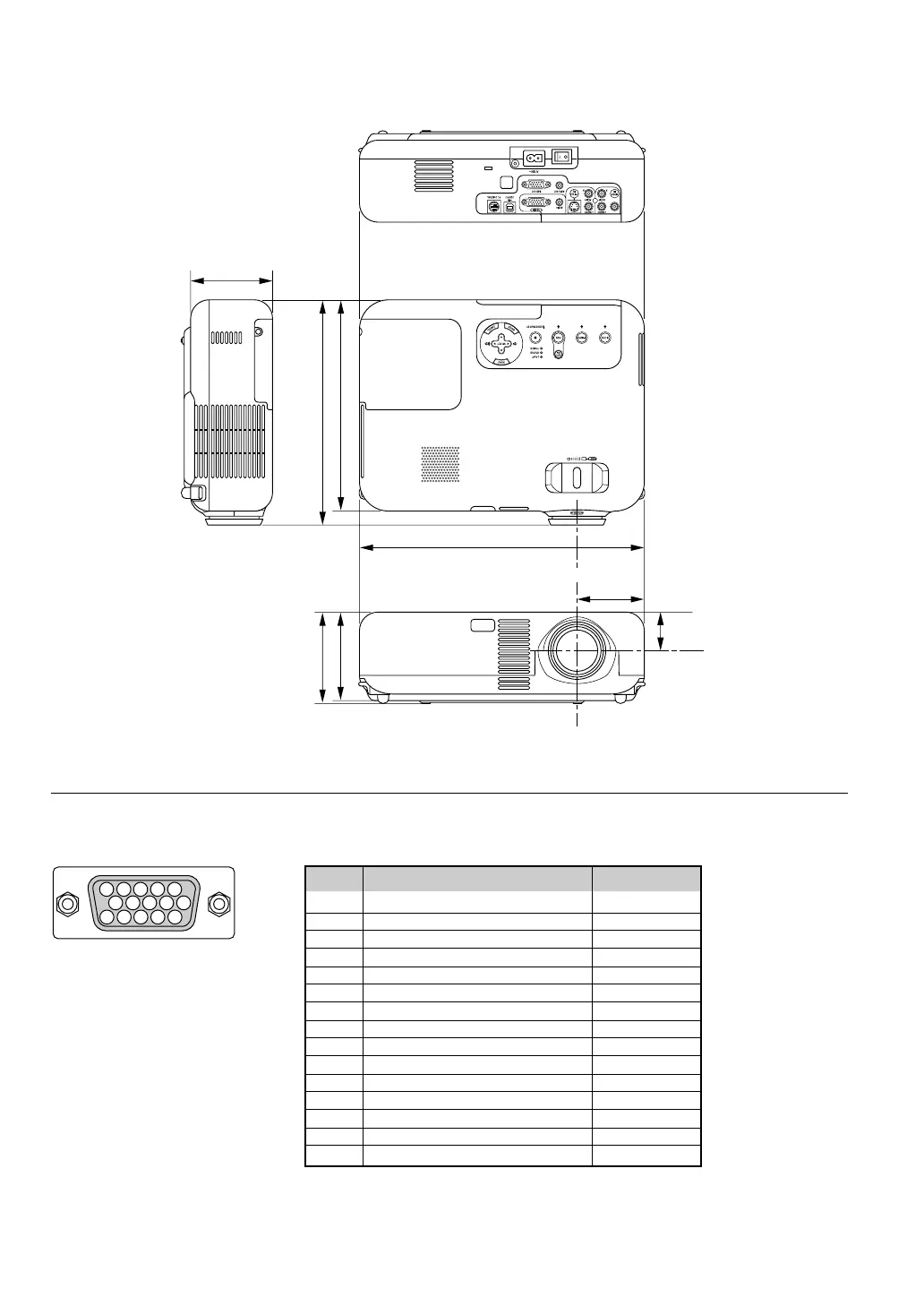

Cabinet Dimensions
Unit = mm (inch)
Mini D-Sub 15 Pin Connector
Pin Assignments of D-Sub RGB Input Connector
Pin No. RGB Signal (Analog) YCbCr Signal
1 Red Cr
2 Green or Sync on Green Y
3 Blue Cb
4 Ground
5 Ground
6 Red Ground Cr Ground
7 Green Ground Y Ground
8 Blue Ground Cb Ground
9 No Connection
10 Sync Signal Ground
11 SCART Sync Sync
12 Bi-directional DATA (SDA)
13 Horizontal Sync or Composite Sync
14 Vertical Sync
15 Data Clock
Signal Level
Video signal : 0.7Vp-p (Analog)
Sync signal : TTL level
51423
10
1112131415
6978
99.2(3.9")
96(3.8")
230(9.1") 245(9.6")
89(3.5")
73.5(2.9")
310(12.2")
41.7
Lens center
Lens center
(1.6")
