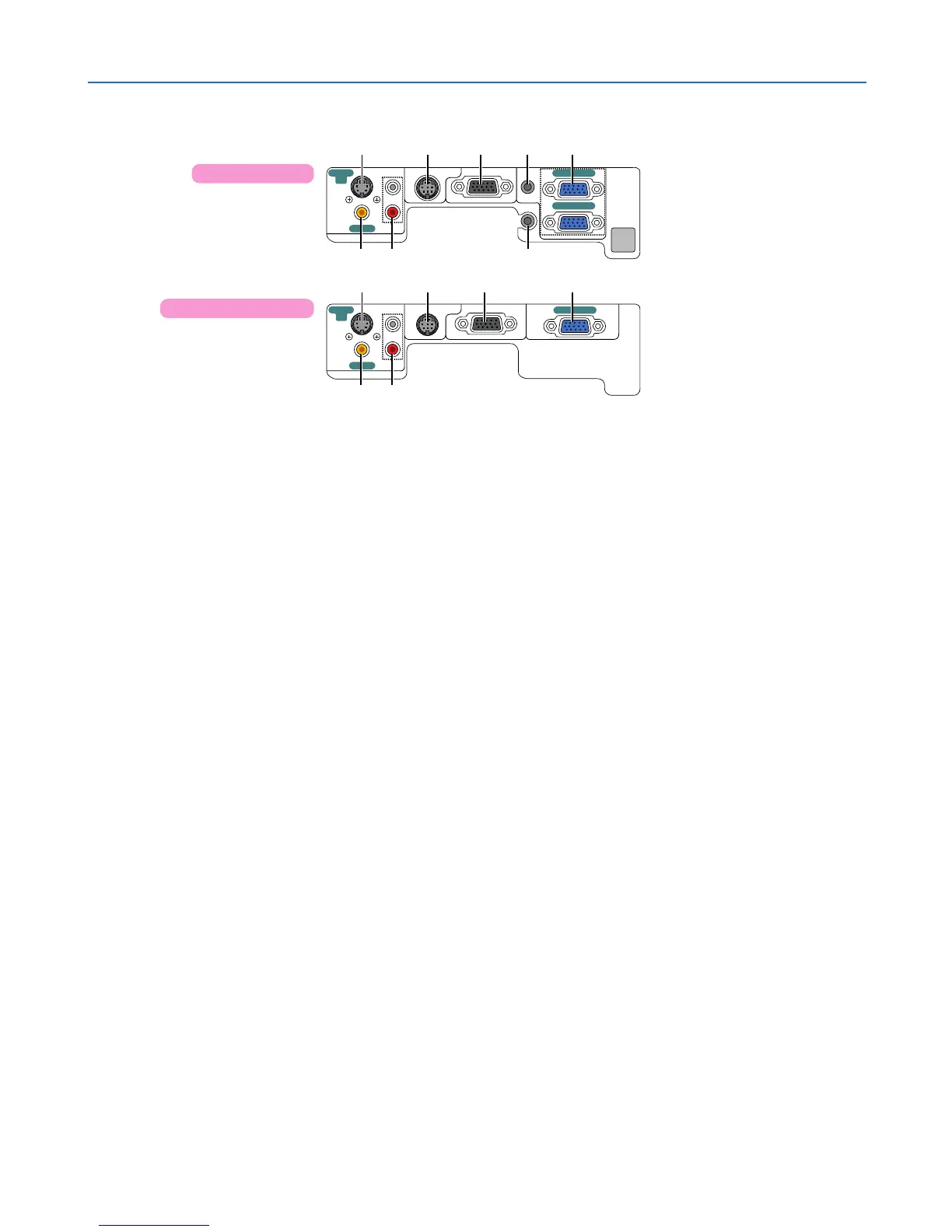

Terminal Panel Features
1. COMPUTER 1 and 2 IN/ Component Input
Connector (Mini D-Sub 15 Pin)
(VT580/VT480) (→page 13,14,16)
COMPUTER IN/ Component Input Connector
(Mini D-Sub 15 Pin)
(VT58/VT57/VT48) (→page 13,14,16)
2. AUDIO IN Mini Jack (Stereo Mini) (→page 13,15,16)
(Not available on VT58/VT57/VT48)
3. AUDIO OUT Mini Jack (Stereo Mini) (→page 15)
(Not available on VT58/VT57/VT48)
4. MONITOR OUT Connector (Mini D-Sub 15 Pin)
(→page 15)
5. S-VIDEO IN Connector (Mini DIN 4 Pin)
(→page 17)
6. VIDEO IN Connector (RCA) (→page 17)
7. AUDIO Input Jacks L/R (RCA) (→page 17)
8. PC CONTROL Port (DIN 8 Pin) (→page 62,63)
Use this port to connect a PC or control system.
This enables you to control the projector using serial
communication protocol. If you are writing your own
program, typical PC control codes are on page 62.
