Necci Lock 160 - Page 10

8
LINT TRAY

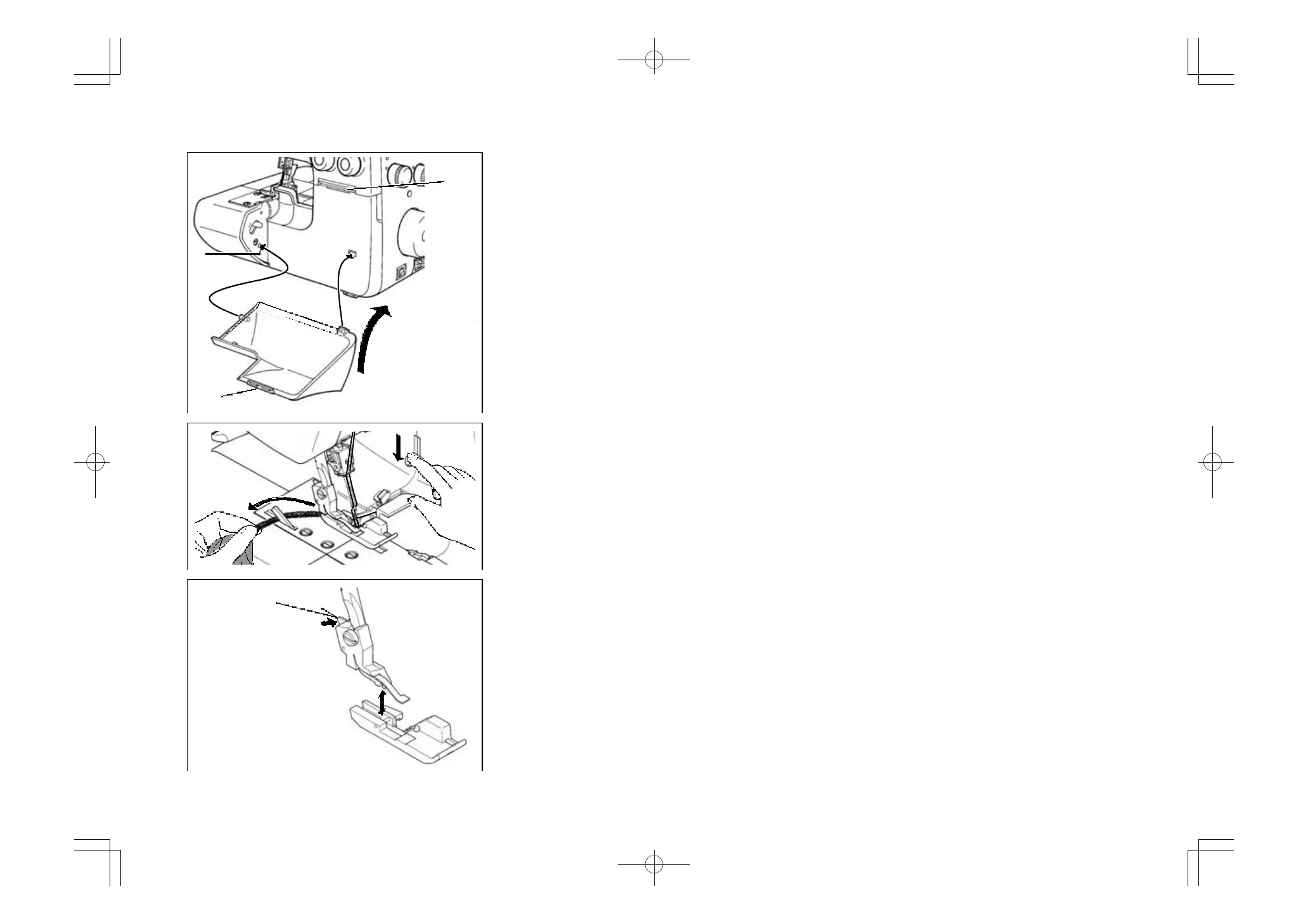

With the lint tray located in this position it will collect all your
waste material.
After completion of work if you then turn tray upwards in
direction shown, finger Ref C will locate in slot D and left
hand pin will slide into lower hole B.
THREAD CUTTER (Model 056 only)
Thread cutter is built in needle plate and thread can be
easily trimmed near end of fabric by pushing down the lever
as illustrated.
CHANGING PRESSER FEET
Be sure needle is in the up position. Raise presser foot
lever.
1. Push foot release lever to remove the foot.
2. Place the desired foot on the needle plate aligning
needle holes.
3. Lower the presser foot lever and push foot release lever
so that the foot holder snaps on the foot.
Foot release lever
D
C
B
Turn upwards
