Necta Korinto Espresso - Deep Cleaning Procedures; Mixer Deep Cleaning and Reassembly; Dispensing Spouts Cleaning; Dispensing Spouts Carrier Plate Assembly

D EEP CLEANING
1 2

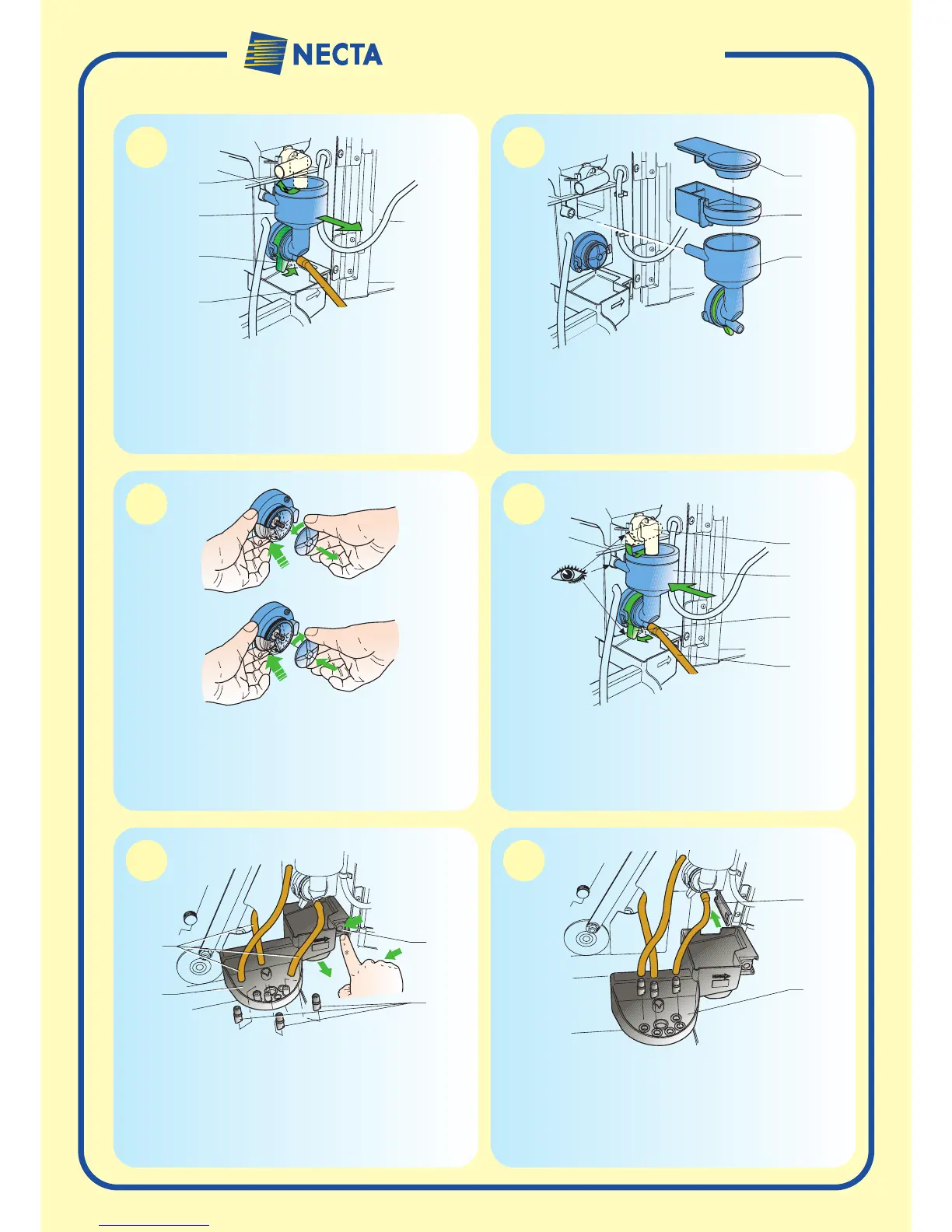

Removing and sanitising the mixer:
• Detach tube (D) from mixer.
• Rotate the product dispensing nozzle (A) upwards.
• Rotate the lever (C) anticlockwise.
• Take hold of the mixer assembly (B) firmly, and pull.
Removing and sanitising the mixer:
• Separate all the mixer assembly components: product funnel (A),
powder deposit drawer (B), mixing bowl (C).
3 4
Removing and sanitising the mixer:
• To remove mixer impellers, use a finger to hold the cogged disk
fitted on the mixer shaft below the mixer chamber.
• Unscrew the impeller.
• Thoroughly wash, rinse and dry all of the removed components.
• Reassemble the impeller.
Reassemble the mixer:
• Reassemble all the mixer (B) components.
• Rotate the lever ring (C) clockwise to lock the mixer onto the dis-
penser.
• Rotate the product dispensing nozzle (A) back down again.
• Connect the tube (D) to the mixing bowl.
5 6
Cleaning the dispensing spouts:
• Detach the tubes (A) from the dispensing spouts.
• Press pushbutton (B) to release the dispensing spouts carrier
plate (C).
• Detach the dispensing spouts (D) from spout holder (C).
• Thoroughly wash and dry all the relative components.
Assembling of the dispensing spouts carrier plate:
• Insert the dispensing spout holder (A) into guide (B) and press
until it clicks.
• Reinsert the dispensing spouts onto the spout holder and connect
the tubes onto their spouts.
KORINTO ESPRESSO
