Necta KORO PRIME ES - Mixer Cleaning and Assembly; Mixer Disassembly; Mixer Component Detachment; Mixer Impeller Maintenance

KORO PRIME ES
A
A
A
C
C
C
B
B
B

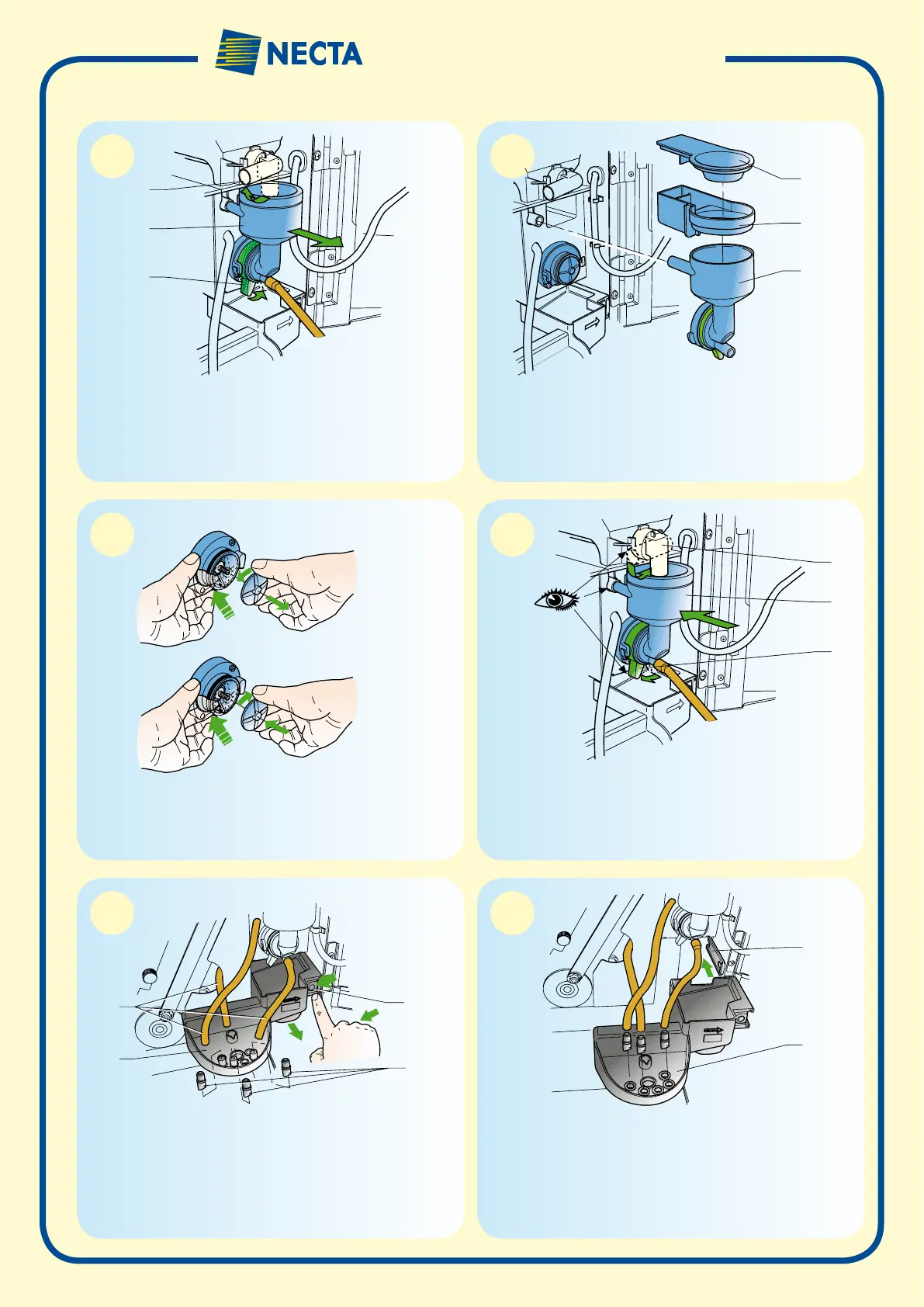

Disassemble the mixer
• Detach the tube from the mixer.
• Turn the product dispensing port (A) upwards to facilitate the oper-
ation.
• Turn the lever (C) counterclockwise.
• Take the mixer unit (B) and pull.
• Detach all components: product funnel (A), powder deposit drawer
(B), water funnel (C).
• Disassemble the mixer impeller
• Use a finger to hold the toothed disk mounted on the whipper
motor firm and unscrew the mixer impeller.
• Wash and rinse all disassembled parts carefully.
• Re-assemble the impeller.
MixEr clEaNiNG
Assemble the mixer:
• Re-assemble all mixer components (B).
• Turn the lever (C) clockwise to secure the mixer.
• Turn the port A) of the instant product downwards
• Re-connect the tube with the mixer.
B
D
A
C
Clean the nozzles:
• Detach the tubes (A) from the nozzles.
• Press the button to release the nozzle support (B).
• Detach the nozzles (D) from the support (C).
• Wash and dry all the parts carefully.
B
A
Nozzle support assembly:
• Insert the nozzle support (A) into the guide (B) and push until
you hear a click.
• Re-insert the nozzles in the support and re-connect the tubes
with the relative nozzles.
