Motor protector, fan
Push the button X.
Activated input: JP1: 6
Set OFF, NC or NO with the 0/1-button.
OFF NC NO
High dust level
Push the button X.
Activated input: JP1: 3
Set OFF, NC or NO with the 0/1-button.
OFF NC NO
Pressure switch, compressed air
Push the button X.
Activated input: JP1: 2
Set OFF, NC or NO with the 0/1-button.
OFF NC NO
Pressure switch
high dP / low airflow
Push the button X.
Activated input: JP1: 4
Set OFF, NC or NO with the 0/1-button.
OFF NC NO
Push the control box button and OFF, NC or NO comes up
on the display.
OFF: The selected input is not activated.
NC = Normally closed: The selected input is activated.
NO = Normally opened: The selected input is activated.
Select NC or NO depending on type of contact on the
connected accessory. Make a note of the setting which
has been selected.
WARNING!
Risk of personal injury!
Electric power connected!
The inputs or outputs should be activated when
accessories have been connected. Push the button (X)
on the back of the control box cover to activate actual
input/output. The LED’s indicate, where appropriate,
with red blinking lights.

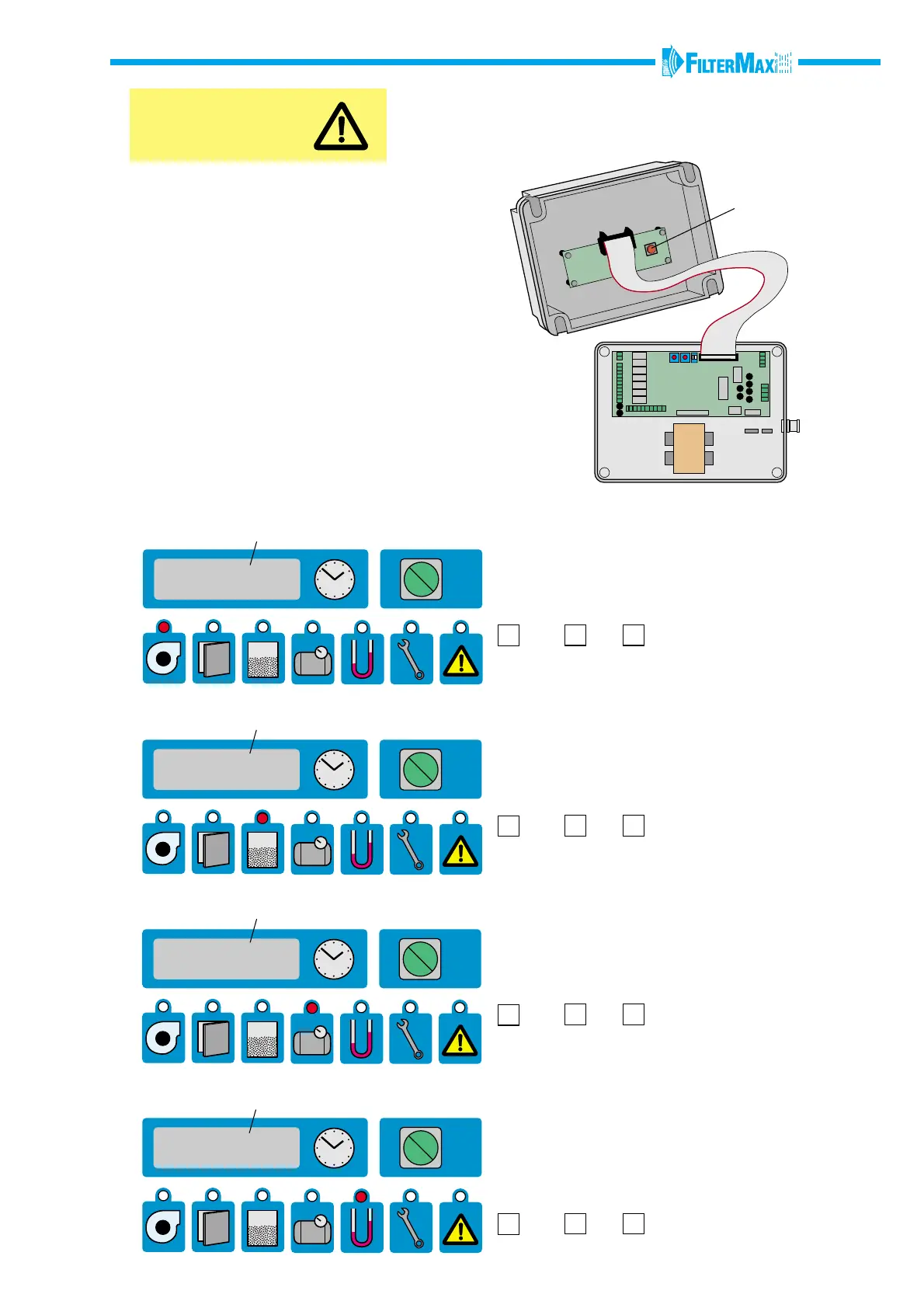

The inputs are activated in the following order:
or NC or NO
or NC or NO
or NC or NO
Blinking
Blinking
Blinking
Blinking
ACTIVATING INPUTS AND OUTPUTS
Selecting OFF, NC or NO
X
