17

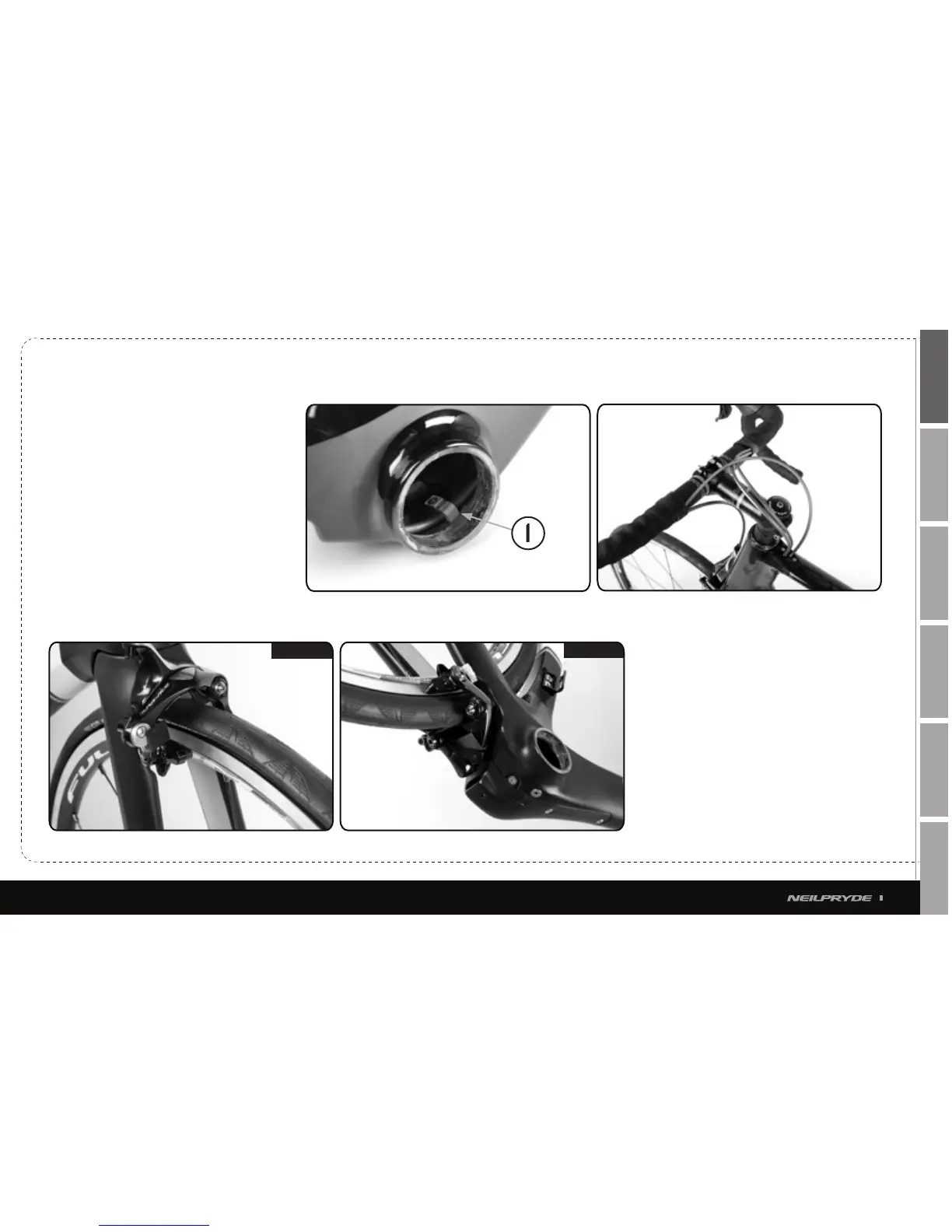

When using a mechanical shifting system the alumi-
num cable retainer no.1 should be used. This allows
the cable to be held against the inside surface of the
frame so that the cable housing can be routed under-
neath the bottom bracket. The maximum torque for
the bolt is 3Nm. When using the Shimano Di2 elec-
tronic shifting system the aluminium cable retainer
no.1 is not needed.
Refers to the recommended cable routing for the
Rear Brake (RB), the Front Derailleur (FD) and the
Rear Derailleur (RD) to ensure that cables are routed
smoothly through the cable guide in the toptube and
that the brakes and the gears operate properly.
Refers for the type of front brake that can be installed
onto the NAZARE 2 frameset. Only Shimano BR-5710F,
BR-6810F and BR-9010F brakes can be installed on the
frame. Installation of any other brake would present a
danger to the rider and would void the warranty.
Refers for the type of rear brake that can be installed
onto the NAZARE 2 frameset. Only Shimano BR-5710R,
BR-6810R and BR-9010R brakes can be installed on the
frame. Installation of any other brake would present a
danger to the rider and would void the warranty.
Front brake Rear brake
