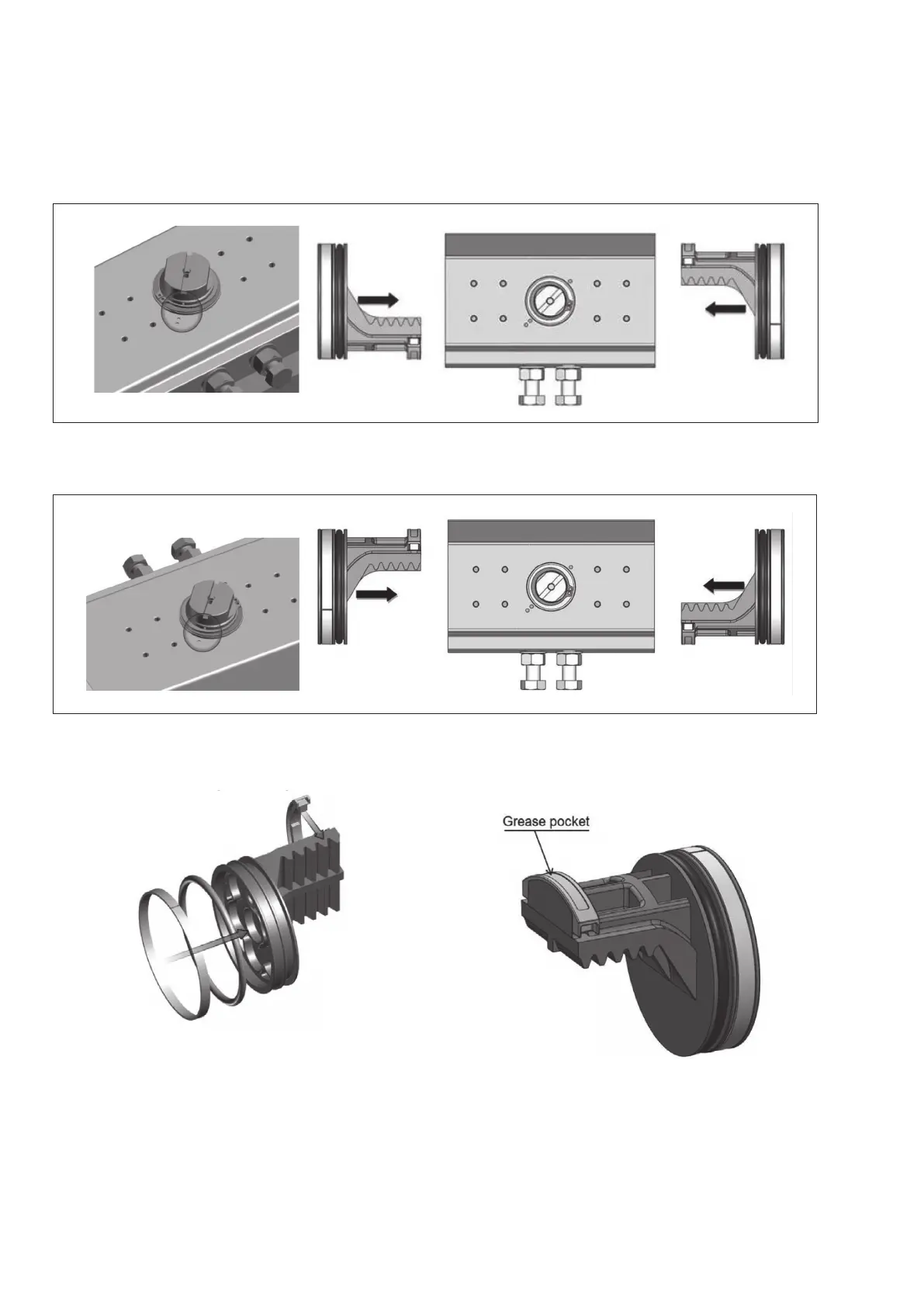

g. Rotate the pinion so that the dot on the pinion is positioned close to the two dots on the top pad of the actuator body
for accurate pinion alignment.
For counterclockwise (CCW) assembly dot on the pinion is positioned close to the two dots on the top pad of the actuator body,
then assemble piston.
For clockwise (CW) assembly dot on the pinion is positioned close to the single dot on the top pad of the actuator body,
then assemble piston
h. Fit rack bearing in piston with rack. i. Apply grease on outer surface of rack bearing and put some
grease in pocket
