17IMO-218 EN - Issue 8/2020

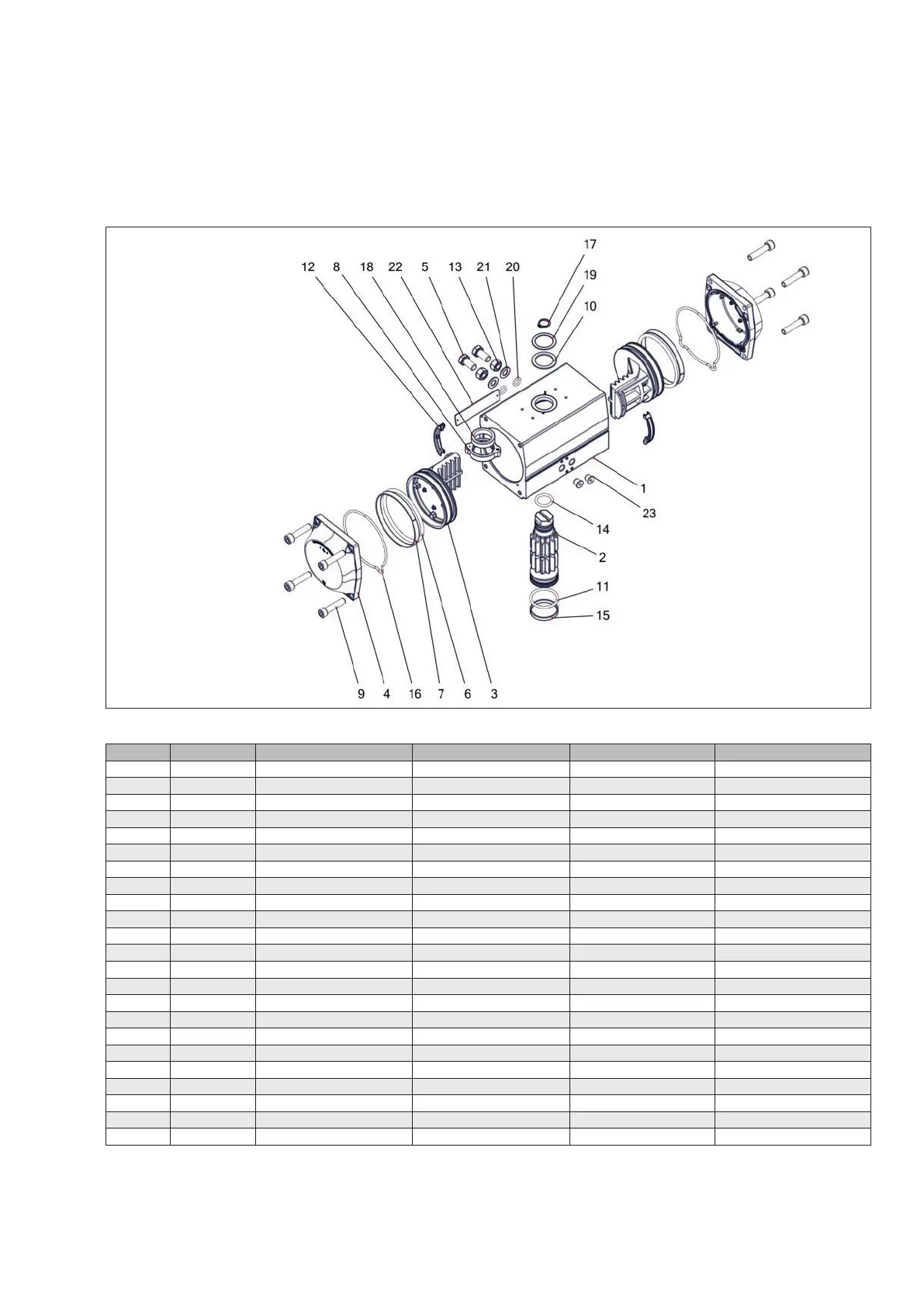

12. EXPLODED VIEWS AND PARTS LIST
12.1 DOUBLE ACTING VERSION
DOUBLE ACTING RNP 40...110 DA
BILL OF MATERIALS AND PARTS LIST
ITEM NO. UNIT QTY. PART DESCRIPTION MATERIAL SPECIFICATION CORROSION PROTECTION
1 1 BODY ALUMINIUM 6063T5/T6; 6005-T6/T5 HARD ANODISED
2♦ 1 PINION STEEL EN8 ZINC FLACKING
3♦ 2 PISTON WITH RACK ALUMINIUM LM13 HARD ANODISED
4♦ 2 COVER ALUMINIUM LM6 EPOXY POWDER COATED
5 2 STOPPER BOLT STAINLESS STEEL AISI304
6*# 2 O-RING (PISTON) NITRILE RUBBER NBR 70SHORE A
7# 2 PISTON STRIP POLYACETAL -
8♦ 1 CAM CAST CARBON STEEL ASTM A216 GR WCB OLIVE PASSIVATION
9 8 COVER BOLT STAINLESS STEEL AISI304
10 1 WASHER (PINION) POLYACETAL -
11*# 1 O-RING (PINION BOTTOM) NITRILE RUBBER NBR 70SHORE A
12 2 RACK BEARING POLYACETAL -
13 2 NUT (STOPER BOLT) STAINLESS STEEL AISI304
14*# 1 O-RING (PINION TOP) NITRILE RUBBER NBR 70SHORE A
15 1 PINION STRIP POLYACETAL -
16# 2 COVER SEAL NITRILE RUBBER NBR 70SHORE A
17 1 CIRCLIP (PINION) SPRING STEEL EN47-GR.3 ZINC FLAKING
18# 1 BEARING BUSH (CAM) POLYACETAL -
19 1 WASHER (PINION) STAINLESS STEEL AISI304
20*# 2 O-RING (STOPER BOLT) NITRILE RUBBER NBR 70SHORE A
21 2 WASHER (STOPER BOLT) STAINLESS STEEL AISI304
22 1 NAME PLATE POLYESTER ALUMINIUM -
23 2 DUST CAP PLASTIC -
NOTE. 1 * Marked components are the parts of the seal kit
2 # Marked components are the parts of repair kit.
3 ♦ Marked components are critical components.
To Next Page
