3.5 SETTING
All actuators are factory set to 0 and 90 degrees. Even minor
adjustments of the stroke adjustment screws (5A and 5B) will result
in over travel or incomplete travel of the pinion.
Loose nut #13 and rotate screw 5A in counter clock wise direction
(CCW) to set over travel (close)
Loose nut #13 and rotate screw 5A in clock wise direction (CW) to
set under travel (close).
Loose nut #13 and rotate screw 5B in counter clock wise direction
(CCW) to set over travel (open).
Loose nut #13 and rotate screw 5B in clock wise direction (CW) to
set under travel (open).

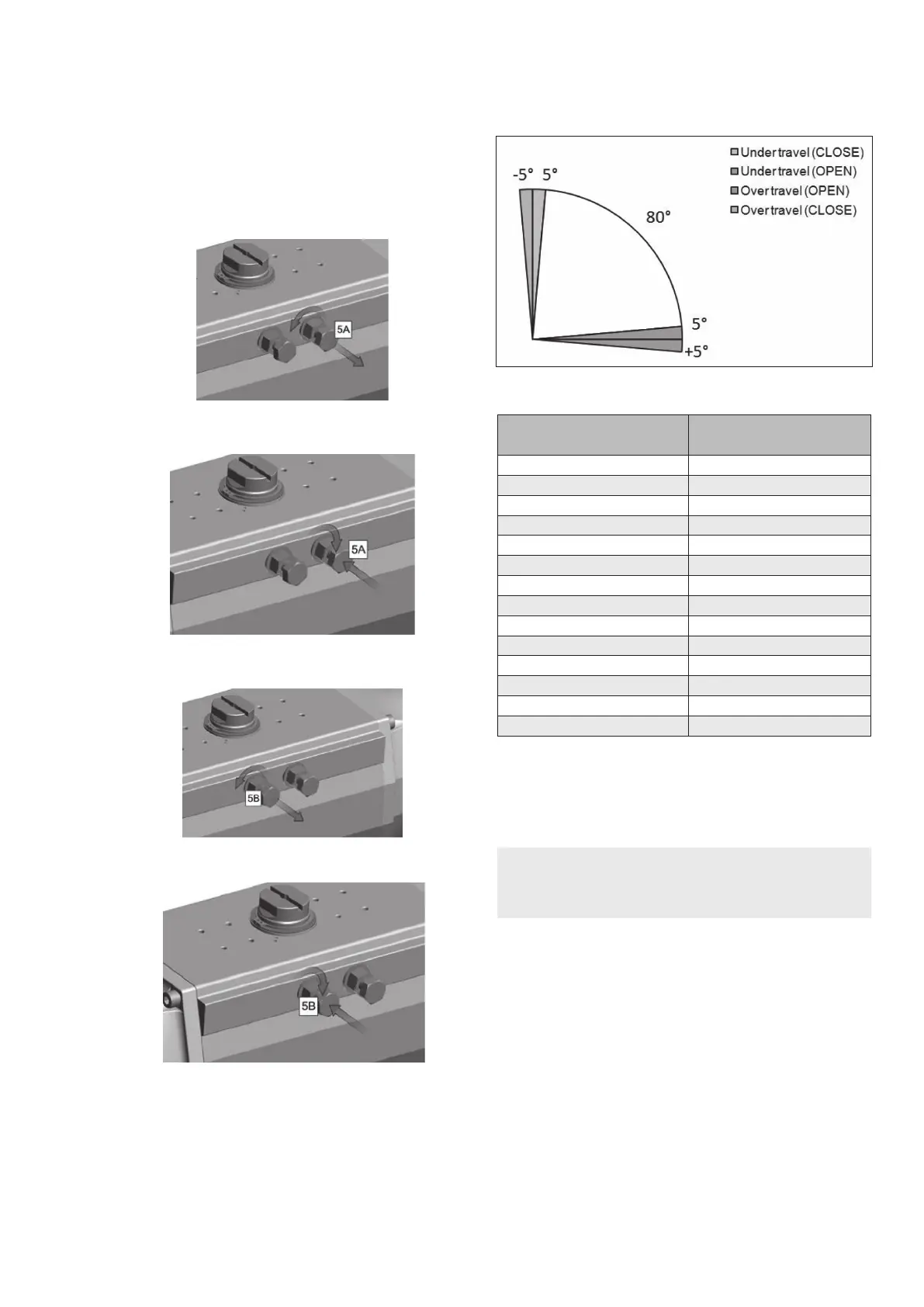

Pie chart below shows the exact degree of pinion travel.
Table below shows required revolution of the bolts for 1° travel of
pinion for each actuator.
Actuator
size
Revolution of bolts
for 1° travel of pinion
RNP 40 Half quarter turn
RNP 50 Half quarter turn
RNP 63 Half quarter turn
RNP 80 Quarter turn
RNP 90 Quarter turn
RNP 100 Quarter turn
RNP 110 Quarter turn
RNP 125 Quarter turn
RNP 150 Quarter turn
RNP 175 Quarter turn
RNP 200 Quarter turn
RNP 250 Quarter turn
RNP 300 Quarter turn
RNP 350 Quarter turn
4. MAINTENANCE
4.1 MAINTENANCE GENERAL
CAUTION:
OBSERVE THE SAFETY PRECAUTIONS MENTIONED IN
SECTION 1.7 BEFORE MAINTENANCE!
Although Neles actuators are designed to work under severe
conditions, proper preventative maintenance Can signicantly help
to prevent unplanned downtime and in real terms reduce the total
cost of ownership. Neles recommends inspecting the actuators at
least every ve (5) years. The inspection and maintenance interval
depend on the actual application and process condition. The
inspection and maintenance intervals can be specied together with
your local Neles experts.
During this periodic inspection the parts detailed in the Spare Part
Set should be replaced. Time in storage should be included in the
inspection interval.
If maintenance assistance is required, please contact your local
Neles o󰀩ce. The part numbers in parentheses () in the text refer
to the exploded view and to the parts list in Section 8, unless
otherwise stated.
