Neles Easyflow RNP Series User Manual

25IMO-218 EN - Issue 8/2020

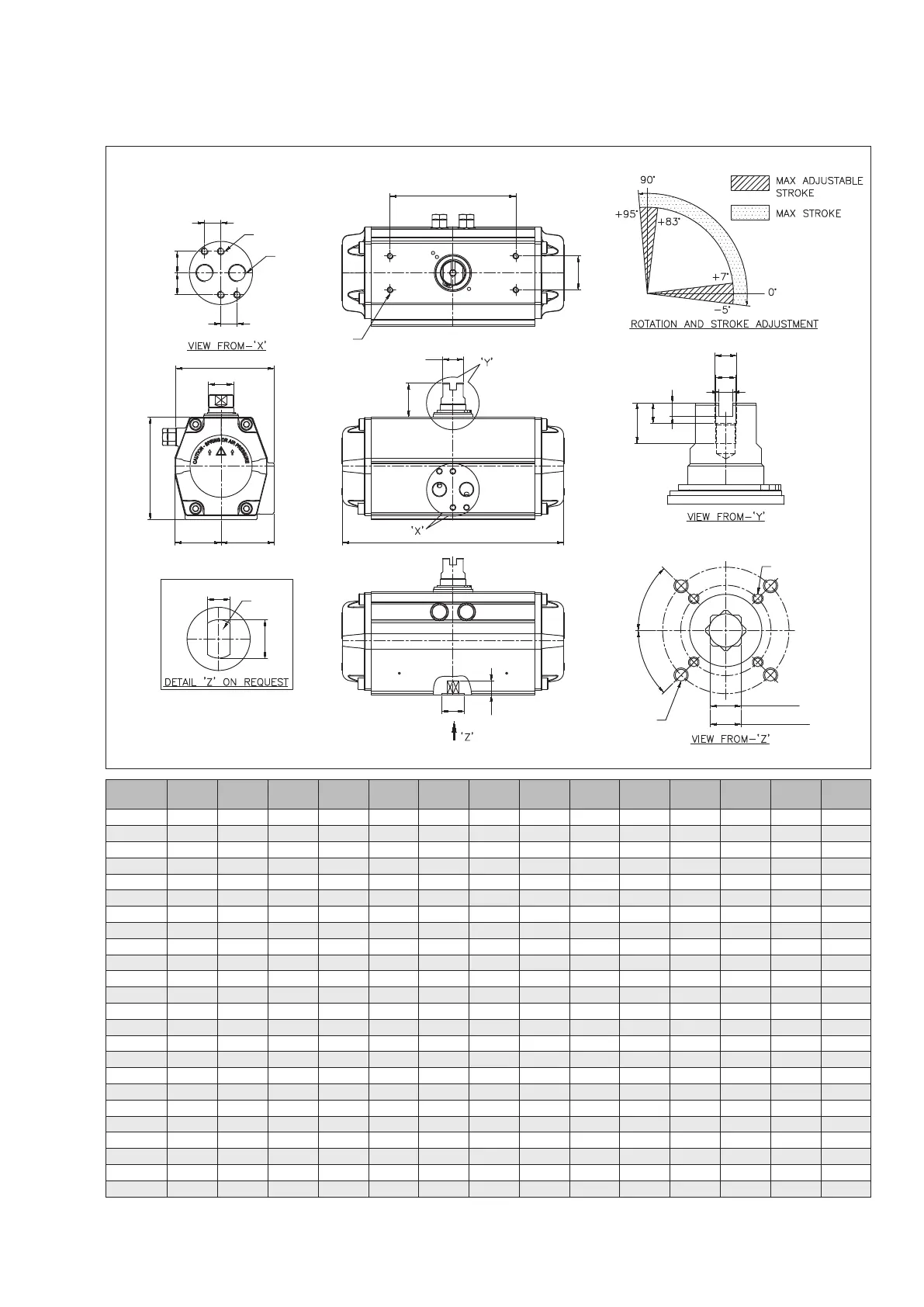

13. DIMENSIONS
M5 x 8 DEEP
`A'
N
P
D
G
H
I
O
C
B
L M
CH-90°
W1xY1 deep
ON 'Q1' PCD
CH-1, 180°
45°
45°
W x Y deep
ON 'Q' PCD
4
6.1
12
4
6
M6
SS
R
R
M5 x 8 DEEP
T
V
Z
DEPTH-X
ACTUATOR
MODEL
RNP40 RNP50 RNP63 RNP80 RNP90 RNP100 RNP110 RNP125 RNP150 RNP175 RNP200 RNP250 RNP300 RNP350
A 162 175 196 208 238 274 284 395 412 511 550 695 634 773
B 72 81 91 106 126 139 146 161 191 199 253 253 360 360
C 68 76 88 102 115 124 132 149 176 189 264 264 373 373
D 80 80 80 80 80 80 80 80 80 80 130 130 130 130
G 30 30 30 30 30 30 30 30 30 30 30 30 30 30
H 30 30 40 42 42 55 58 70 70 90 90 122 90 122
I 12.5 12.5 17 19 19 25 25 25 33 46 45 63 57 57
L 30 34 41 49 58 62 66 73 88 93 132 132 187 187
M 38 42 47 53 57 63 67 76 88 96 157 157 207 207
N A/F 12 14 18 18 23 26 28 32 36 41 41 41 41 41
O 14 16 20 20 27 30 33 36 42 48 60 60 60 60
P 20 20 20 20 20 20 20 30 20 20 30 30 30 30
Q 36 36 50 50 - 70 70 102 102 102 102 - - -
Q1 50 50 70 70 70 102 102 125 125 125 140 140 165 165
FLANGE F03 F03 F05 F05 F07 F07 F07 F10 F10 F10 F10 F14 F16 F16
FLANGE F05 F05 F07 F07 - F10 F10 F12 F12 F12 F14 - - -
R 12 12 12 12 12 12 12 12 12 12 12 12 20 20
S 16 16 16 16 16 16 16 16 16 16 16 16 22.5 22.5
T 1/4” 1/4” 1/4” 1/4” 1/4” 1/4” 1/4” 1/4” 1/4” 1/4” 1/4” 1/4” 1/2” 1/2”
CH-90° 11 11 14 17 17 22 22 22 27 27 36.11 46.11 46 55
W M5 M5 M6 M6 - M8 M8 M10 M10 M10 M10 M10 - -
Y 8 8 8 8 - 10 10 12 12 12 12 - - -
W1 M6 M6 M8 M8 M8 M10 M10 M12 M12 M12 M16 M16 M20 M20
Y1 8 8 10 10 10 10 15 20 20 20 16 20 20 20
