DOUBLE ACTING RNP 125...175 DA

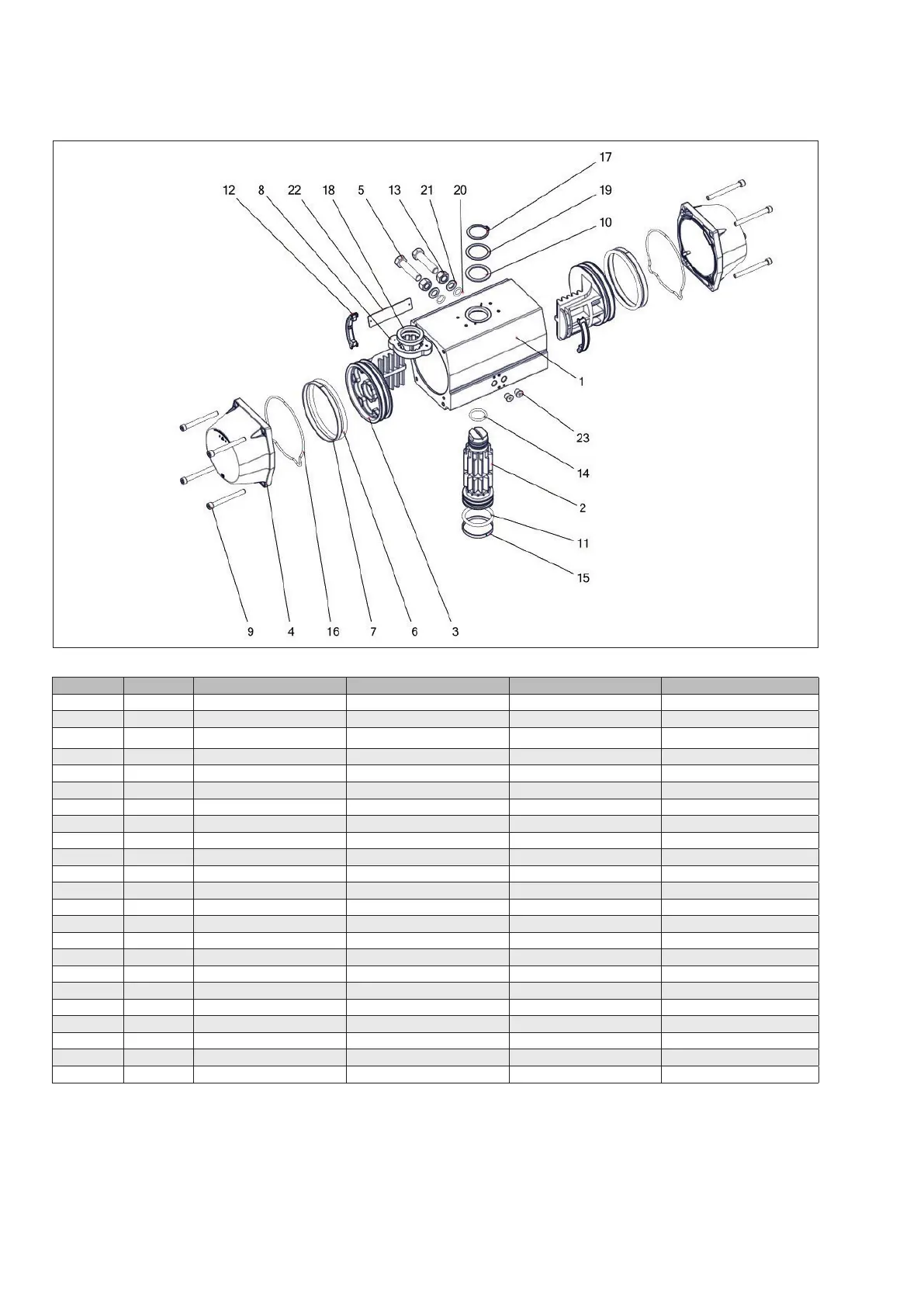

BILL OF MATERIALS AND PARTS LIST
ITEM NO. UNIT QTY. PART DESCRIPTION MATERIAL SPECIFICATION CORROSION PROTECTION
1 1 BODY ALUMINIUM 6063T5/T6; 6005-T6/T5 HARD ANODISED
2♦ 1 PINION STEEL EN8 ZINC FLACKING
3♦ 2 PISTON WITH RACK ALUMINIUM LM13 HARD ANODISED
4♦ 2 COVER ALUMINIUM LM6 EPOXY POWDER COATED
5 2 STOPPER BOLT STAINLESS STEEL AISI304
6*# 2 O-RING (PISTON) NITRILE RUBBER NBR 70SHORE A
7# 2 PISTON STRIP POLYACETAL -
8♦ 1 CAM CAST CARBON STEEL ASTM A216 GR WCB OLIVE PASSIVATION
9 8 COVER BOLT STAINLESS STEEL AISI304
10 1 WASHER (PINION) POLYACETAL -
11*# 1 O-RING (PINION BOTTOM) NITRILE RUBBER NBR 70SHORE A
12 2 RACK BEARING POLYACETAL -
13 2 NUT (STOPER BOLT) STAINLESS STEEL AISI304
14*# 1 O-RING (PINION TOP) NITRILE RUBBER NBR 70SHORE A
15 1 PINION STRIP POLYACETAL -
16# 2 COVER SEAL NITRILE RUBBER NBR 70SHORE A
17 1 CIRCLIP (PINION) SPRING STEEL EN47-GR.3 ZINC FLAKING
18# 1 BEARING BUSH (CAM) POLYACETAL -
19 1 WASHER (PINION) STAINLESS STEEL AISI304
20*# 2 O-RING (STOPER BOLT) NITRILE RUBBER NBR 70SHORE A
21 2 WASHER (STOPER BOLT) STAINLESS STEEL AISI304
22 1 NAME PLATE POLYESTER ALUMINIUM -
23 2 DUST CAP PLASTIC -
NOTE. 1 * Marked components are the parts of the seal kit
2 # Marked components are the parts of repair kit.
3 ♦ Marked components are critical components.
