C-Series 1" & 1-1/4" WS1 Manual

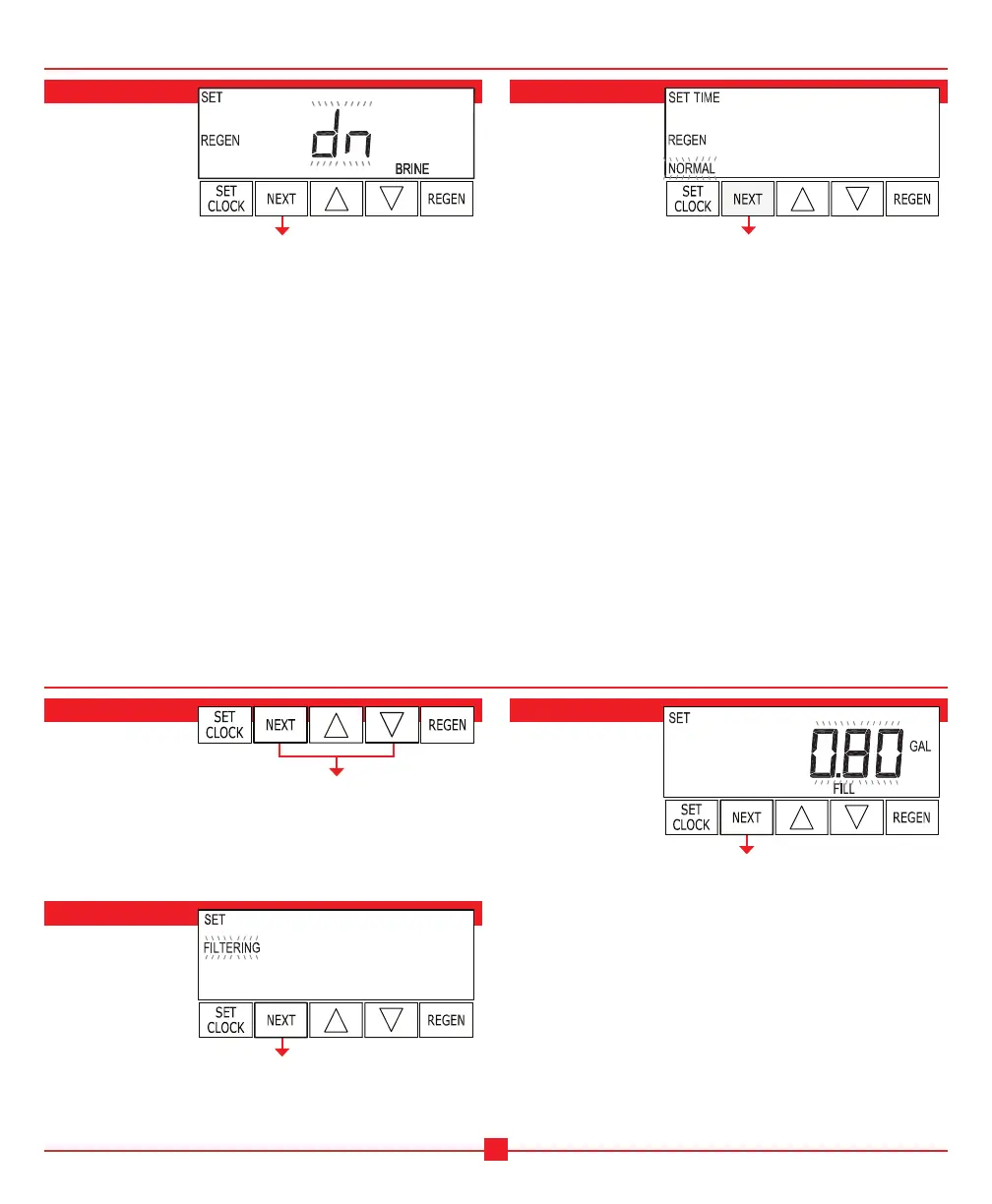

WS Controller - Soener System Setup
STEP 8S
Set regenerant
downflow or
upflow using
q or p:
• “dn” if the
regenerant is to
fl ow downward through the media; or
• “UP” if the regenerant is to flow upward through
the media.
Prior to selecting a regenerant flow direction, verify the
correct valve body, main piston, regenerant piston, and
stack are being used, and that the injector or injector
plug(s) are in the correct locations. See Valve Body
Compliance Table in “C-Series” Installation Manual.
Press NEXT to go to Step 9S.
Press REGEN to return to previous step.
STEP 9S
Set Regeneration
Time Option using
q or p:
• “NORMAL”
means
regeneration
will occur at the
preset time;
• “on 0” means regeneration will occur immediately when
the gallons capacity reaches 0 (zero); or
• “NORMAL + on 0” means regeneration will occur at
• one of the following:
•• the preset time when the gallons capacity falls below
the reserve or the specified number of days between
regenerations is reached which ever comes first; or
•• after 10 minutes of no water usage when the gallon
capacity reaches 0 (zero).
See Setting Options Table for more detail.
Press NEXT to exit Softener System Setup.
Press REGEN to return to previous step.
RETURN TO NORMAL MODE
WS Controller - Filter System Setup
STEP 1F
Press NEXT and
q simultaneously
for 3 seconds. If
screen in Step 2F does not appear in 5 seconds the lock
on the valve is activated. To unlock press q, NEXT, p,
and SET CLOCK in sequence, then press NEXT and q
simultaneously for 3 seconds.
STEP 2F
Choose Filtering
using q or p.
Press NEXT to go
to Step 3F.
Press REGEN to
exit Filter System Setup.
STEP 3F
Enter “oFF” if
regenerant is
not used (i.e.
backwash only)
or enter the refill
volume (in gallons)
using q or p. Prior to selecting oFF or regenerant
volume, verify the correct valve body, main piston,
regenerant piston, and stack are being used, and that the
injector or injector plug(s) are in the correct locations.
See Compliance Table in “C-Series” Instruction Manual,
Page 22.
Press NEXT to go to Step 4F.
Press REGEN to return to previous step.
