75-201
CAUTION: Before using the appliance, read these instructions
carefully and keep them for future reference. Failure to observe the
safety precautions in this manual may result in damage to the
appliance and may cause personal injury.
WARNING: Do not look directly into the laser beam!
The following safety rules must be observed:
• No modifications may be made to the unit.
• Use the laser device in accordance with the manufacturer's
recommendations.
• Never intentionally point the laser beam towards people or
animals.
• Do not point the laser beam towards the eyes of bystanders or
animals. Laser radiation can damage the eye.
• Always ensure that the laser light is not directed at reflective
surfaces. The reflective surface of the laser beam could then,
reflect such a beam towards the operator, or towards third parties.
• Do not allow children to operate this appliance. Do not allow
children in the work area during set-up and use of the appliance.
• Store unused equipment in a dry place out of the reach of children.
• Do not replace the laser unit with another type. All repairs should
be carried out by the manufacturer's service department.
• The unit is equipped with a Class 2 laser in accordance with EN
60825-1:2014.
PURPOSE
The device is intended for private use only. It can be used to
measure distances as well as area and volume. In addition, the
rangefinder has an indirect measuring function (in accordance
with Pythagoras' theorem) that allows height or distance to be
calculated. Dynamic measuring allows continuous
measurement. In addition, the device is equipped with an
automatic spirit level, making it possible to read the angle of the
device in real time. In addition, the device has a USB port to
easily recharge the batteries of the device.
During operation, act strictly in accordance with the following
instructions to ensure the best possible performance of the device.
Any use other than that described below is not permitted and may
lead to damage to the product.
Under unfavourable conditions such as too much sunlight,
measurement to a poorly reflective surface (e.g. black, matt surfaces)
or too high an ambient temperature, the measurement error may
increase (error values in brackets apply to measurements taken
under unfavourable conditions).

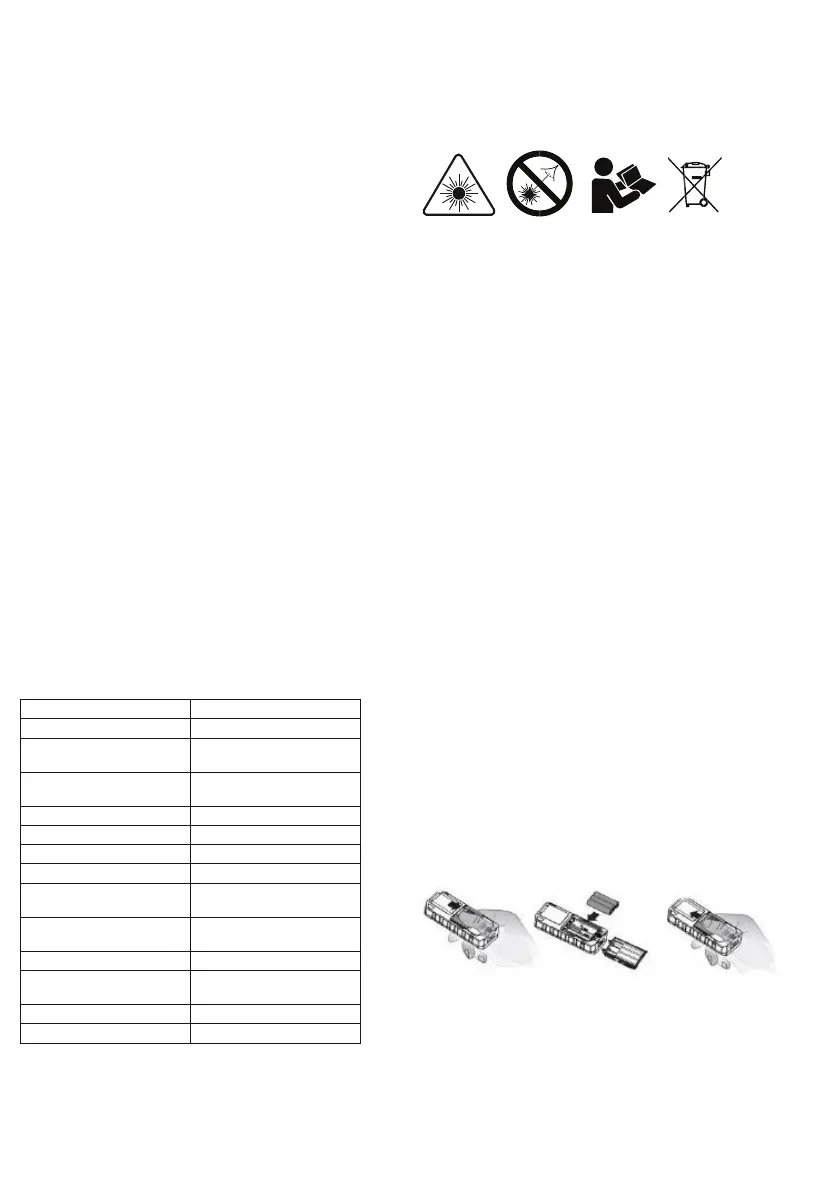

EXPLANATION OF THE PICTOGRAMS USED
1. Caution laser radiation!
2. Caution laser radiation - do not look into the beam
3. Read the Operating Instructions and observe the
warnings and safety conditions contained therein.
4. Selective collection
DESCRIPTION OF THE GRAPHIC PAGES
The numbering below refers to the components of the unit shown on
the graphic pages of this manual:
1. MEAS button
2. Change function button
3. Button for changing the reference point UNIT
4. Screen
5. Addition/subtraction button
6. Mute/memory device
7. Switch/CLEAR
8. Battery cover
9. Tripod thread
* There may be differences between the drawing and the product
EQUIPMENT AND ACCESSORIES
• Material case
• USB cable
• 3 AAA rechargeable batteries of type NI-MH
Use NI-MH rechargeable batteries. Using this type of battery will
allow you to charge them safely via the USB port the device is
equipped with. Never mix batteries with rechargeable batteries.
When using batteries, never use the USB port to charge the
device!
Battery/battery replacement
• To unlock the battery cover (10) push down the top of the cover.
The cover should fit tightly to the device, carefully tilt it away
from the top side.
• Insert 3 new AAA rechargeable batteries/batteries, paying
attention to their correct polarity.
• Close the battery cover, then lock it by sliding the top of the
cover upwards.
Batteries/batteries can leak, catch fire or explode if they are heated
to high temperatures or short-circuited. Do not heat the unit to
temperatures above 50°C or store it in the car during hot and sunny
days.
