BASIC PARTS OF THE MACHINES
5

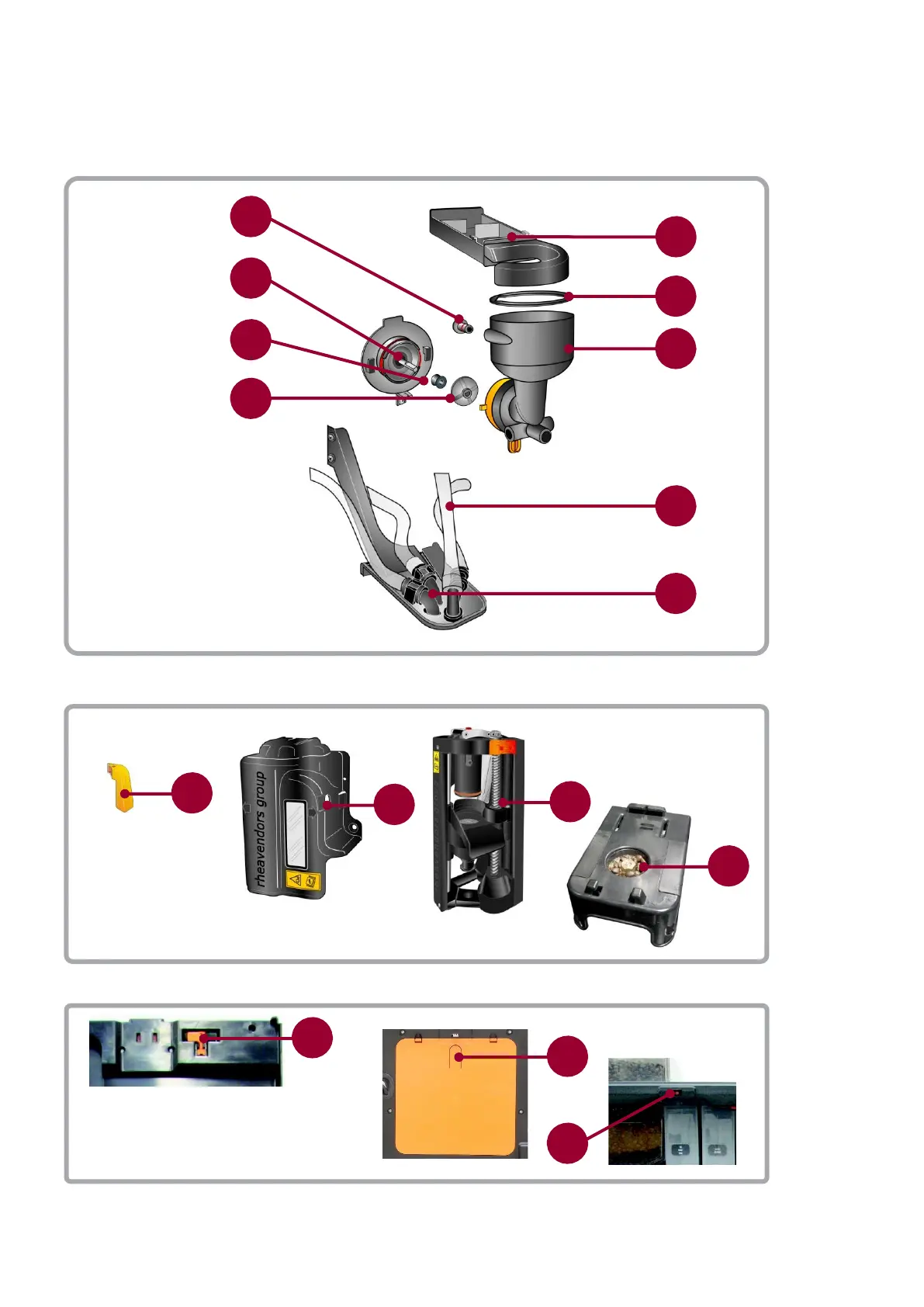

Mixing bowl and detailed parts
20. Steam trap
21. Upper ring
22. Water inlet
23. Mixer motor shaft
24. Gasket
25. Mixer fan
26. Mixing bowl
27. Dispensing tube
28. Dispensing nozzle
Variflex
®
Coffee brewer and Grinder
33. Key clip
34. Programming button
35. Programming key connector
30
25
23
22
21
26
27
28
29. Ground conveyor
30. Carter
31. Variflex
®
Coffee Brewer
32. Grinder
29
32
Programming
33
31
24
34
35
