NMC-DC
INSTALLATION MANUAL
Page: of 109 pagesRevision: 01 IDoc. Name: NMC-DC I Installation Manual
Crop Management Technologies
Dip switches for each input as
needed according to location

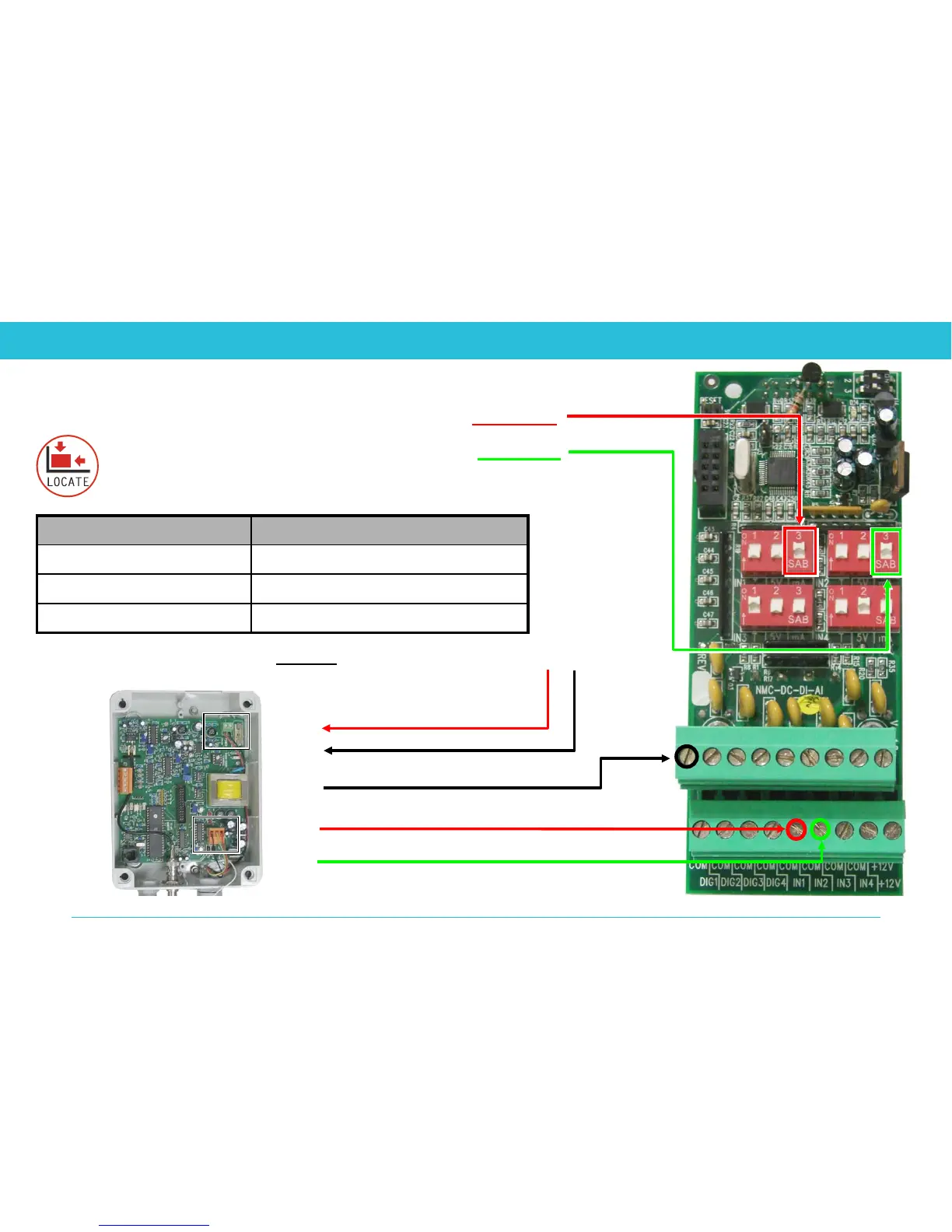

1. EC – pH Sensor Connection
Sensor typeJumper positioning
Temperature sensor (30kΩ)Temp
Humidity, Radiation, Pressure…0-5V
EC, pH4-20mA
COM
EC
pH
24VAC
Transmitter
Terminals
EC – IN 1 :
Dip Switch position
pH – IN 2 :
Cable type
COM/EC/pH- 3x0.5mm
2
(20AWG) Shielded
24VAC- 2x0.5mm
2
(20AWG)
