Netafim SCREENGUARD

SCREENGUARD AUTOMATIC SCREEN FILTERS OPERATION, INSTALLATION AND MAINTENANCE GUIDE • 19

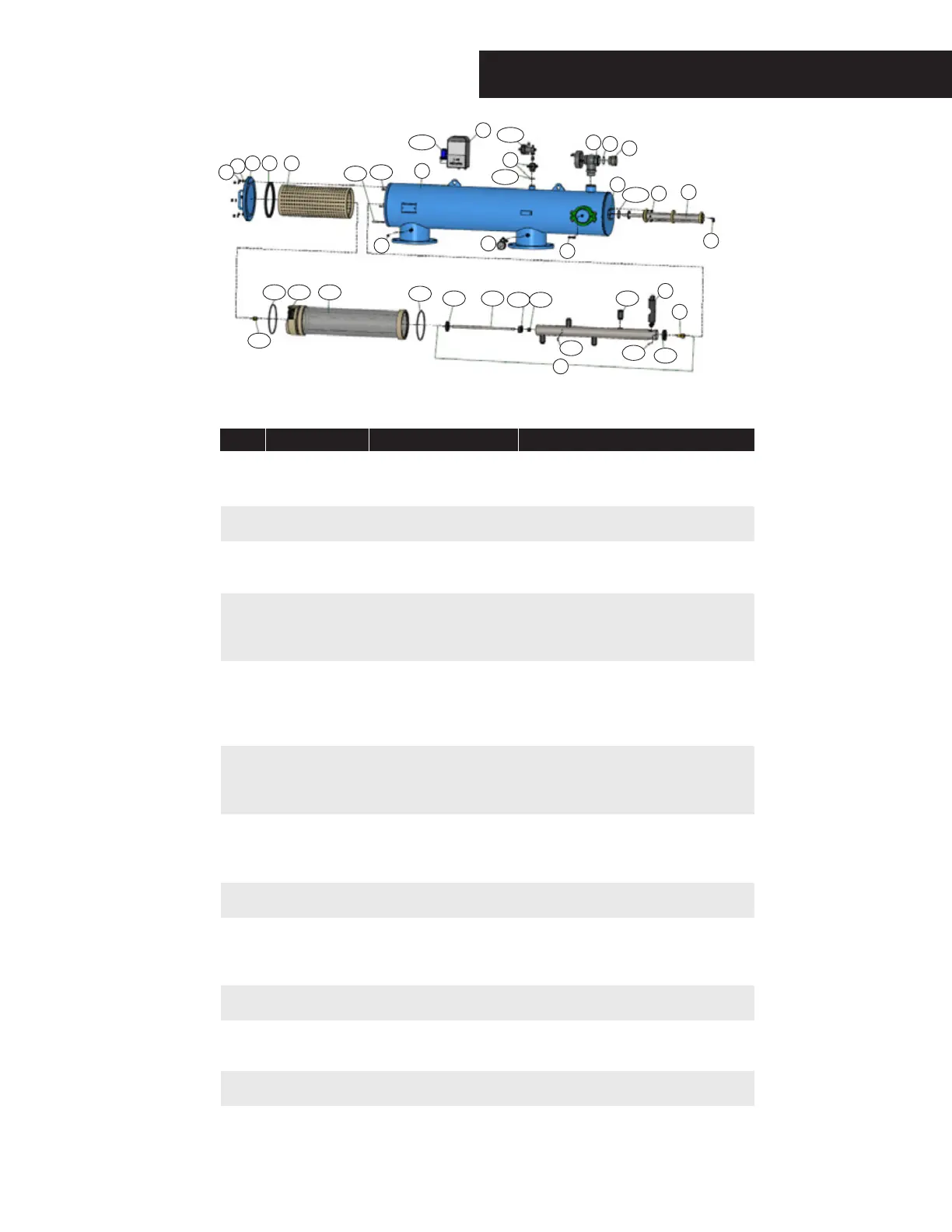

REPLACEMENT PARTS
1
2 3
5
6
7
9
10
11
12
13
14
15
16
17
8.1
8.2
9.1 9.2
16.1
16.2
18
19
4.1
4.2
21.2
21
22
23
14.1
20
9.8
9.5
9.7
8.4
9.6
9.3 9.4
8.38.1
NOTE: Substitute *** with desired mesh.
Filter Body
Filter Cover
Cover O-Ring
Stud 3/4” NC 73 SS304
Stud 3/4” NC130 SS304
Washer M20 SS304
Nut 3/4“ Galvanized
Coarse Screen for 10”
Service Cover Gasket
Coarse Screen 10“
Screen Wheel
Dirt Collector Screen Bearing
Dirt Collector Assembly
Dirt Collector Upper Plug
Dirt Collector Shaft
Dirt Collector Middle Plug
Dirt Collector Shaft Tightening Nut
Flat Head Screw SS304
Oval Head Screw SS304
Suction Nozzle
Dirt Collector Lower Plug
Hydraulic Motor
Dirt Collector Head Bearing
Stud 5/16” SS304
Nut 5/16” Brass
Hydraulic Piston
Hydraulic Piston O-Ring
Backflush Valve Galit
Repair Kit for Backflush Valve
Double Distributor
Accelerator Pilot O-Ring
Pilot 25300
Pressure Gauge Set
Plug 1/4“ Plastic
Male Branch Tee 1/4”
Male Elbow 1/8“
Netafim Backflush Controller DCL
Aquative DCL with 1 Bracket
BSP to NPT Adapter Coupling 2”
O-Ring, BSP to NPT Adapter Coupling 2”
Item Number Model Number
DescriptionKey
1
2
3
4.1
4.2
5
6
7
8.1
8.2
8.3
8.4
9
9.1
9.2
9.3
9.4
9.5
9.6
9.7
9.8
10
11
12
13
14
14.1
15
-
16
16.1
16.2
17
18
19
20
21
21.2
22
23
-
-
72000-009595
72000-018398
72000-018396
72000-008509
72000-008501
72000-105000
72000-016945
-
72000-018520
72000-018567
72000-027987
72000-010582
72000-018593
72000-017414
72000-018584
72000-008558
72000-008557
72000-018329
72000-107053
72000-018924
72000-018595
72000-018402
72000-008502
72000-018350
72000-016965
72000-015520
-
72000-090250
72000-016905
72000-007040
72000-017350
72000-008545
72000-019240
72000-019250
00105-006250
35500-002020
-
-
Not Sold Separately
Not Sold Separately
79COVERORING10
79STUD3473SS30410
79STUD34130SS30410
79WSHRM20SS30410
79ASFNUT34GALV10
79ASFCOARSESCR10
79SCGASKET10
79ASFSCRONLY10-***
79ASFSCRWHEEL10
79ASFDCOLLSCRBRG10
79ASFDCOLL10
79ASFDCOLLUPRPLG10
79ASFDCOLLSHFT10
79ASFDCOLLMDLPLG10
79ASFDCOLLSHFTNT10
79ATCHSCRW34FLT10
79ATCHSCRW34OVL10
79ASFSCTNOZ10
79ASFDCOLLPLUGLWR
79ASFHYDMOTOR10
79ASFDCOLLHDBRNG10
79STUD51629SS30410
79NUT516NCBRSS10
79ASFHYDPISTON10
79ASFHYDPSTORNG10
79ASFBACKFLUSHVLV
61GALIL2RKIT
79ASFDOUBLEDIST10
79ASFACCORING10
61PIL25300
79ASFPRESSGAUGE
79ASFPLG46810
79ASFBRANCHT14468
79ASFMALEELL18468
31NBCDCL2
61AQTVDCL1
79ASF2BSPNPTADTR
79ASF2BSPNPTADORNG
SCREENGUARD AUTOMATIC SCREEN FILTER PARTS
10” Size
