Netafim SCREENGUARD Installation Manual

SCREENGUARD AUTOMATIC SCREEN FILTERS OPERATION, INSTALLATION AND MAINTENANCE GUIDE • 7

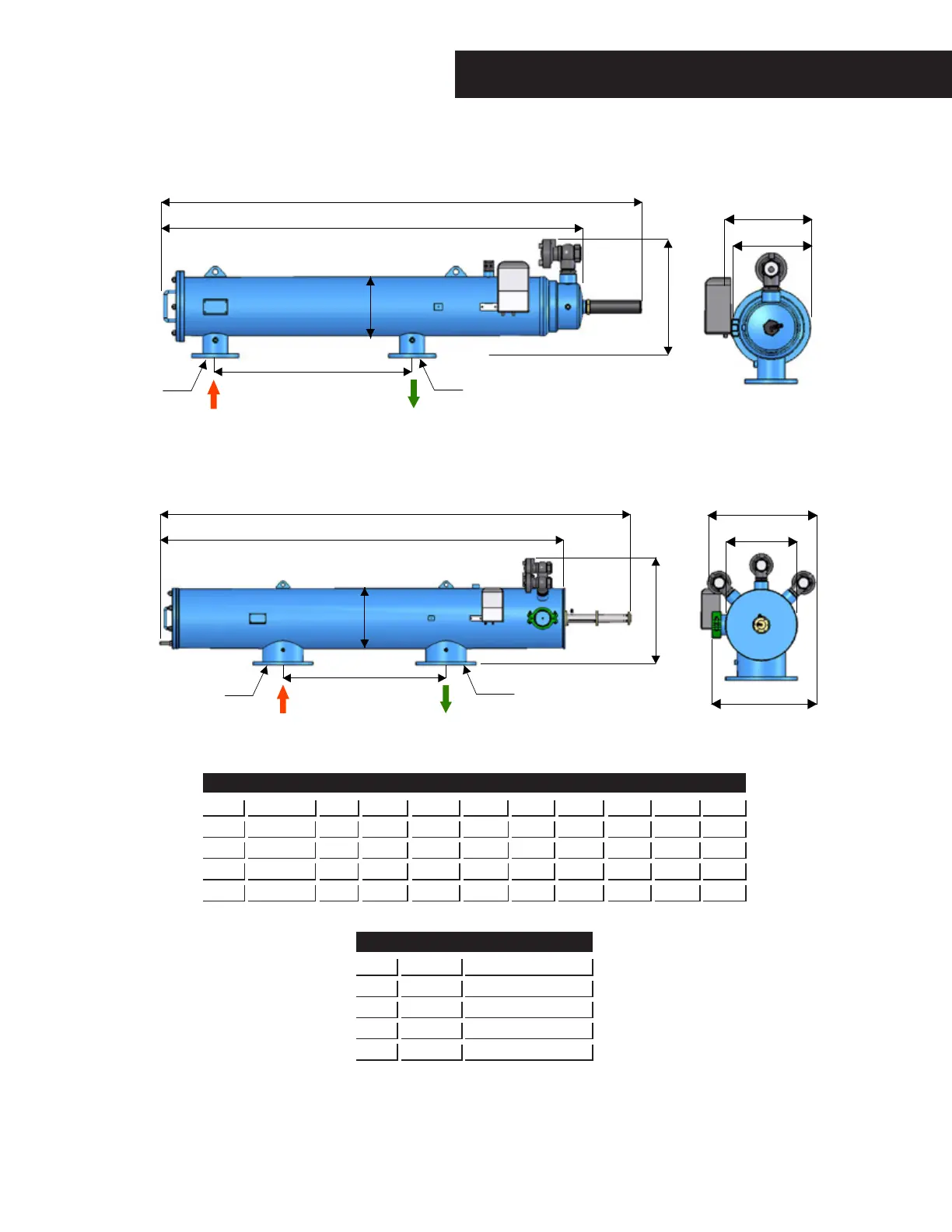

DIMENSIONS & WEIGHT
L1
L
D D
X
H
D1
L1
L
H
D1
D
X
D
10” FILTER
4”, 6” AND 8” FILTERS
W1
W
W3
W2
W
DIMENSIONS
SIZE
4”
6”
8”
10”
L
76.02”
78.78”
86.26”
106.29”
L1
85.83”
88.58”
96.08”
125.2”
X
35.43”
35.43”
35.43”
43.31”
D1
10”
10”
12”
16”
H
21.44”
21.84”
22.81”
28.35”
W3
-
-
-
23.93”
W
12.79”
12.79”
12.79”
16.0”
W1
12.95”
12.95”
13.77”
-
W2
-
-
-
24.16”
D (IN/OUT)
4”
6”
8”
10”
WEIGHT & PACKAGING
SIZE
4”
6”
8”
10”
WEIGHT
340 LBS.
346 LBS.
412 LBS.
893 LBS.
PACKAGING
7.9’ L X 2.5’ W X 1.9’ H
7.9’ L X 2.5’ W X 1.9’ H
8.5’ L X 2.9’ W X 2.1’ H
11.1’ L X 3.3’ W X 2.4’ H
