SPECIFICATIONS

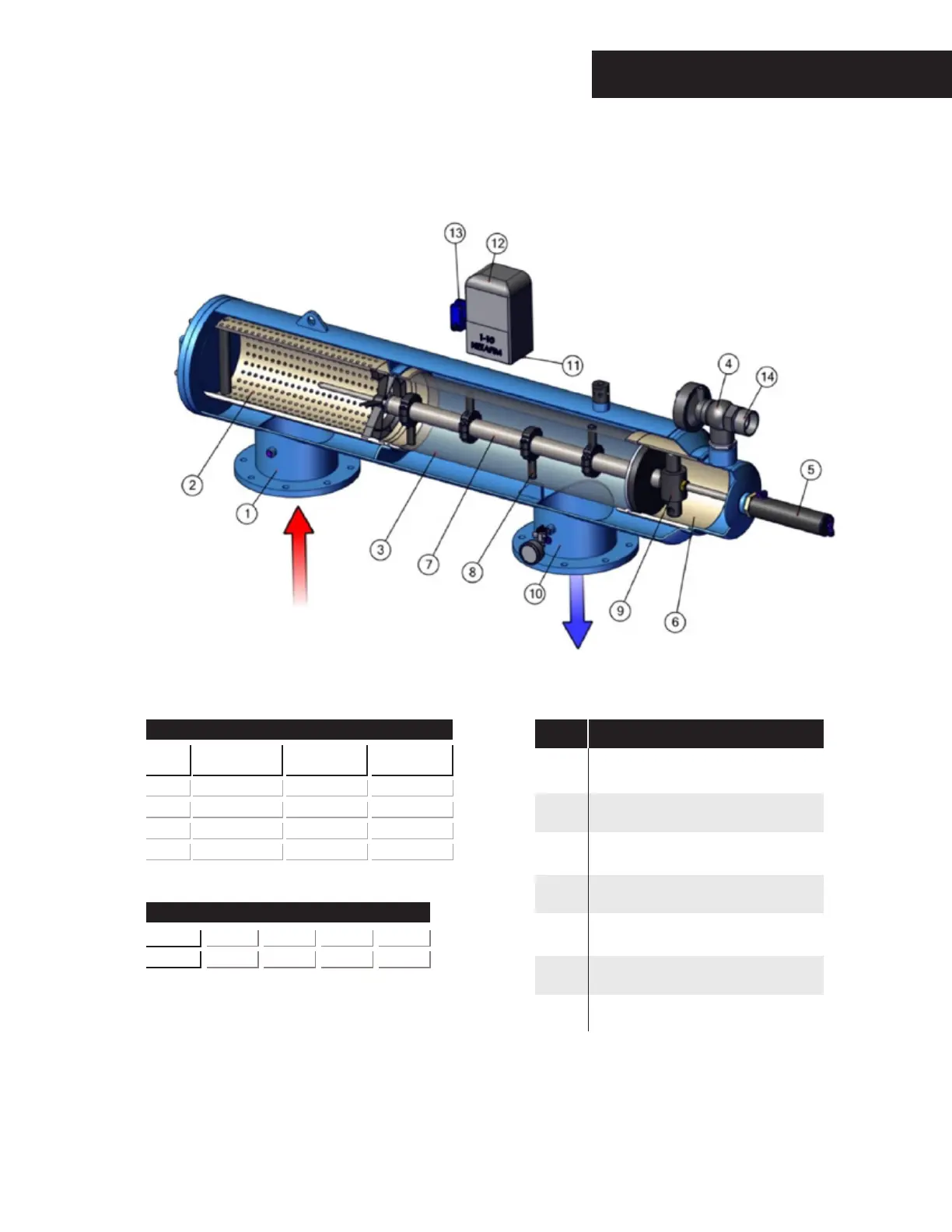

FIGURE 1
1 Inlet
2 Coarse Screen
3 Fine Screen
4 Flushing Valve
5 Hydraulic Piston
6 Flushing Chamber
7 Dirt Collector
8 Suction Nozzle
9 Hydraulic Motor
10 Outlet
11 Electronic DP Unit
12 Control Unit
13 Solenoid Valve
14 Adapter 2”
KEY DESCRIPTION
AUTOMATIC SCREEN FILTERS
MESH / MICRON
MESH
MICRON
80
200
120
120
150
100
200
80
SPECIFICATIONS
SIZE
4”
6”
8“
10”
1,300 SQ. IN.
1,300 SQ. IN.
1,300 SQ. IN.
1,815 SQ. IN.
SCREEN AREA
132 GPM
132 GPM
132 GPM
396 GPM
BACKFLUSH
FLOW RATE
440 GPM
700 GPM
1,320 GPM
2,000 GPM
MAXIMUM
FLOW RATE
The ScreenGuard self-cleaning filter enables high quality filtration from 80-200 mesh from various types of fluid
sources such as sewage, reservoirs, rivers, lakes, and wells.
