6. Pull the cam handle downward and begin to slide the controller module out of the chassis.
Make sure that you support the bottom of the controller module as you slide it out of the chassis.
Step 2: Move the boot device
You must locate the boot media and follow the directions to remove it from the old controller and insert it in the
new controller.

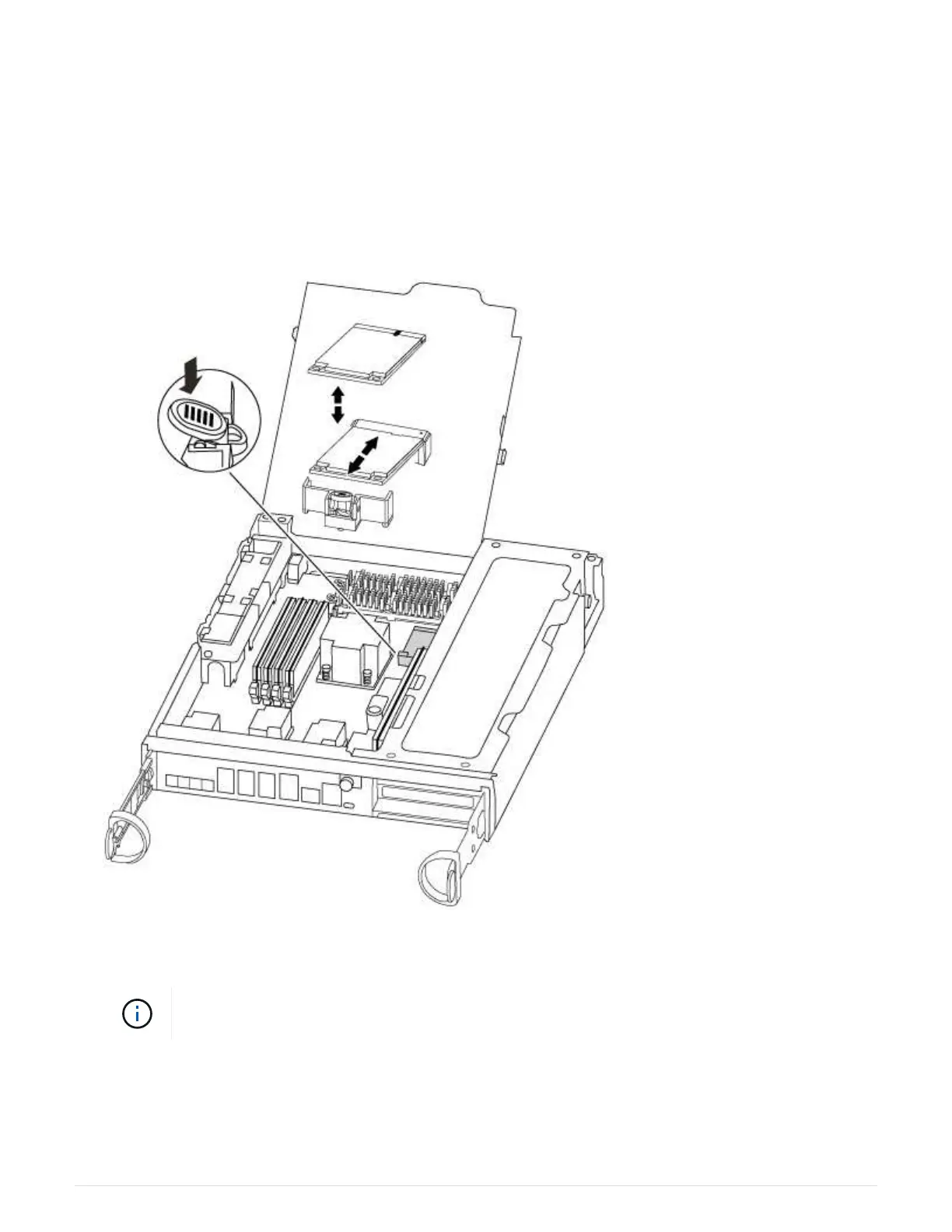

1. Locate the boot media using the following illustration or the FRU map on the controller module:
2. Press the blue button on the boot media housing to release the boot media from its housing, and then
gently pull it straight out of the boot media socket.
Do not twist or pull the boot media straight up, because this could damage the socket or the
boot media.
3. Move the boot media to the new controller module, align the edges of the boot media with the socket
housing, and then gently push it into the socket.
4. Check the boot media to make sure that it is seated squarely and completely in the socket.
