Step Perform on each controller module
Cable controller A to the shelf
Cable controller B to the shelf:
2. To complete setting up your system, see Step4: Completing system setup and configuration.
Option 4: Cable the controllers to two drive shelves

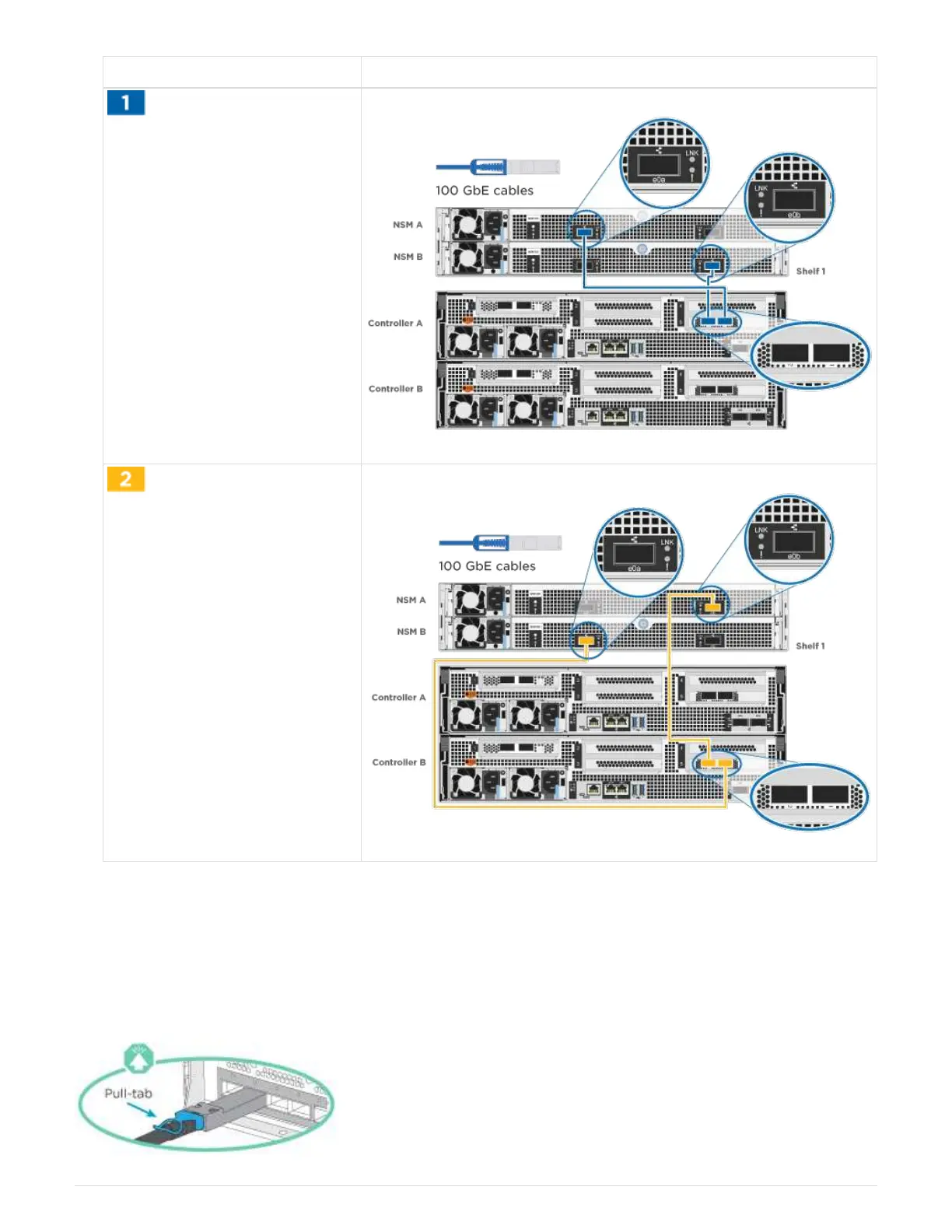

You must cable each controller to the NSM modules on both NS224 drive shelves.
Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.
11
