As you insert the connector, you should feel it click into place; if you do not feel it click, remove
it, turn it around and try again.
1. Use the animation or the step-by step instructions to complete the cabling between the controllers and to
the switches:

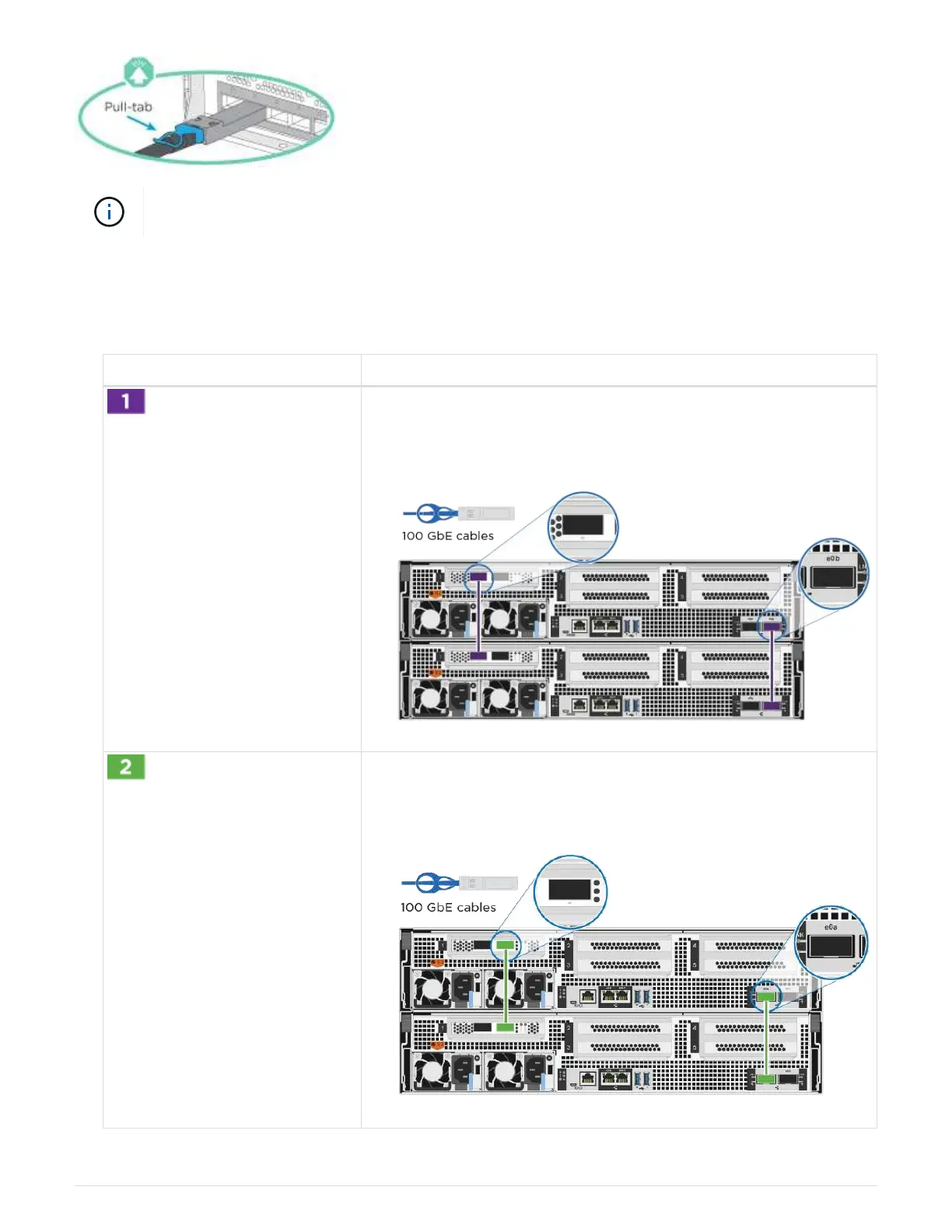

Cabling a two-node switchless cluster
Step Perform on each controller module
Cable the HA interconnect ports:
• e0b to e0b
•
e1b to e1b
Cable the cluster interconnect ports:
• e0a to e0a
•
e1a to e1a
5
