NetApp DS224C User Manual

c. While holding both release levers, pull the drive drawer toward you.
d. Remove the drive drawer from the drive shelf.
Installing a drive drawer
Installing a drive drawer into a drive shelf entails sliding the drawer into the empty slot,
installing the drives, and replacing the front bezel.
Before you begin
• You have obtained the following items:
◦ Replacement drive drawer
◦ Flashlight
Steps
1. From the front of the drive shelf, shine a flashlight into the empty drawer slot, and locate the lock-out
tumbler for that slot.
The lock-out tumbler assembly is a safety feature that prevents you from being able to open more than one
drive drawer at one time.

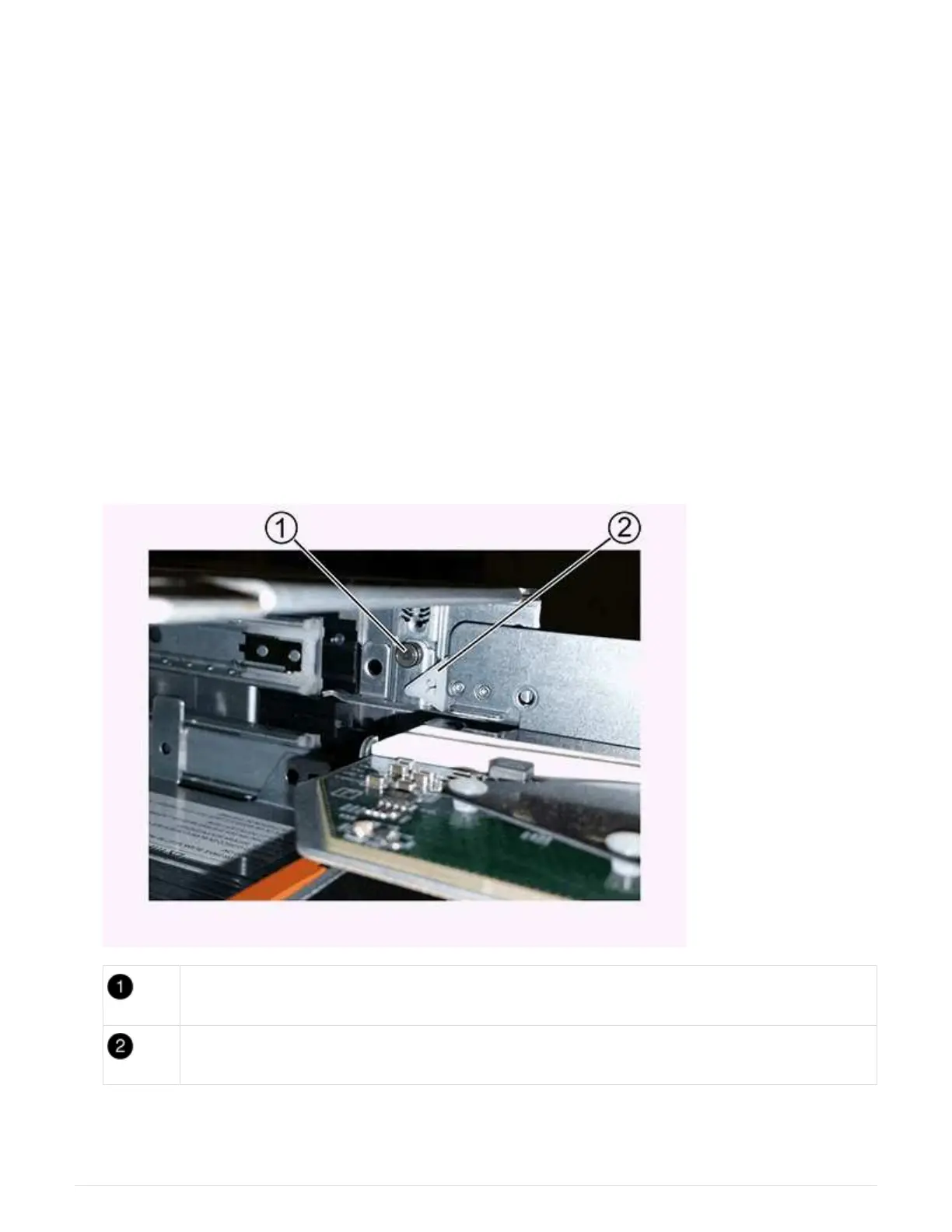

Lock-out tumbler
Drawer guide
2. Position the replacement drive drawer in front of the empty slot and slightly to the right of center.
24

NetApp DS224C Specifications

General

Form Factor	2U
Drive Bays	24
Drive Type	2.5-inch SAS
Maximum Raw Capacity	368 TB
Connectivity	12 Gbps SAS
Power Supply	Redundant power supplies
Cooling	Redundant fans
Storage Type	HDD and SSD
Compatibility	NetApp FAS and AFF systems
