NetApp E Series Hardware Maintainence Manual

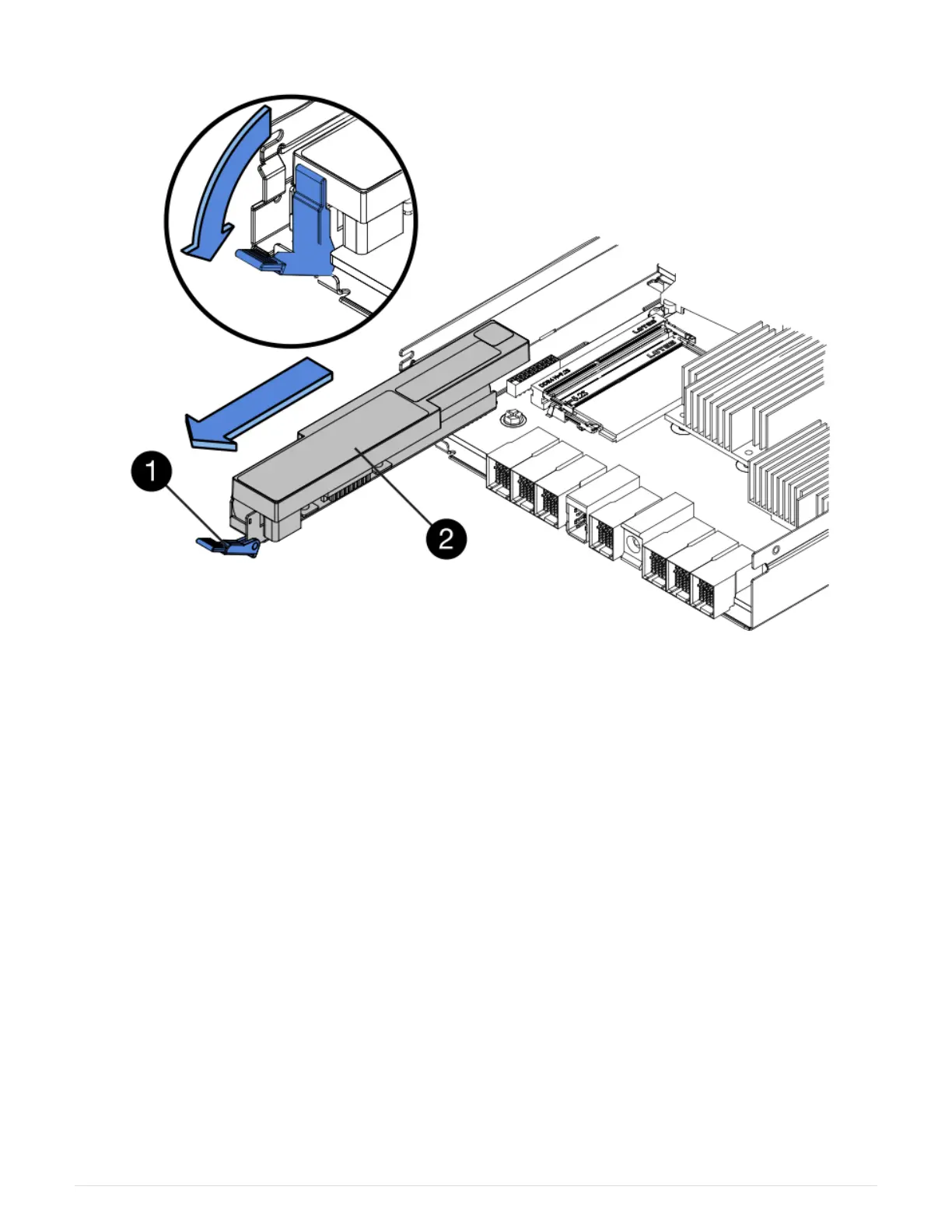

(1) Battery release latch
(2) Battery
5. Lift up on the battery, and slide it out of the controller canister.
Step 2c: Remove host interface card (duplex)
If the controller canister includes a host interface card (HIC), you must remove the HIC from the original
controller canister, so you can reuse it in the new controller canister.
Steps
1. Using a #1 Phillips screwdriver, remove the screws that attach the HIC faceplate to the controller canister.
There are four screws: one on the top, one on the side, and two on the front.
134

NetApp E Series Specifications

General

Form Factor	2U, 4U
Drive Types	SSD
Host Interface	SAS, iSCSI, FC, IB
RAID Levels	RAID 0, 1, 5, 6, 10
Operating System Compatibility	Windows, Linux, VMware
Management Software	SANtricity
