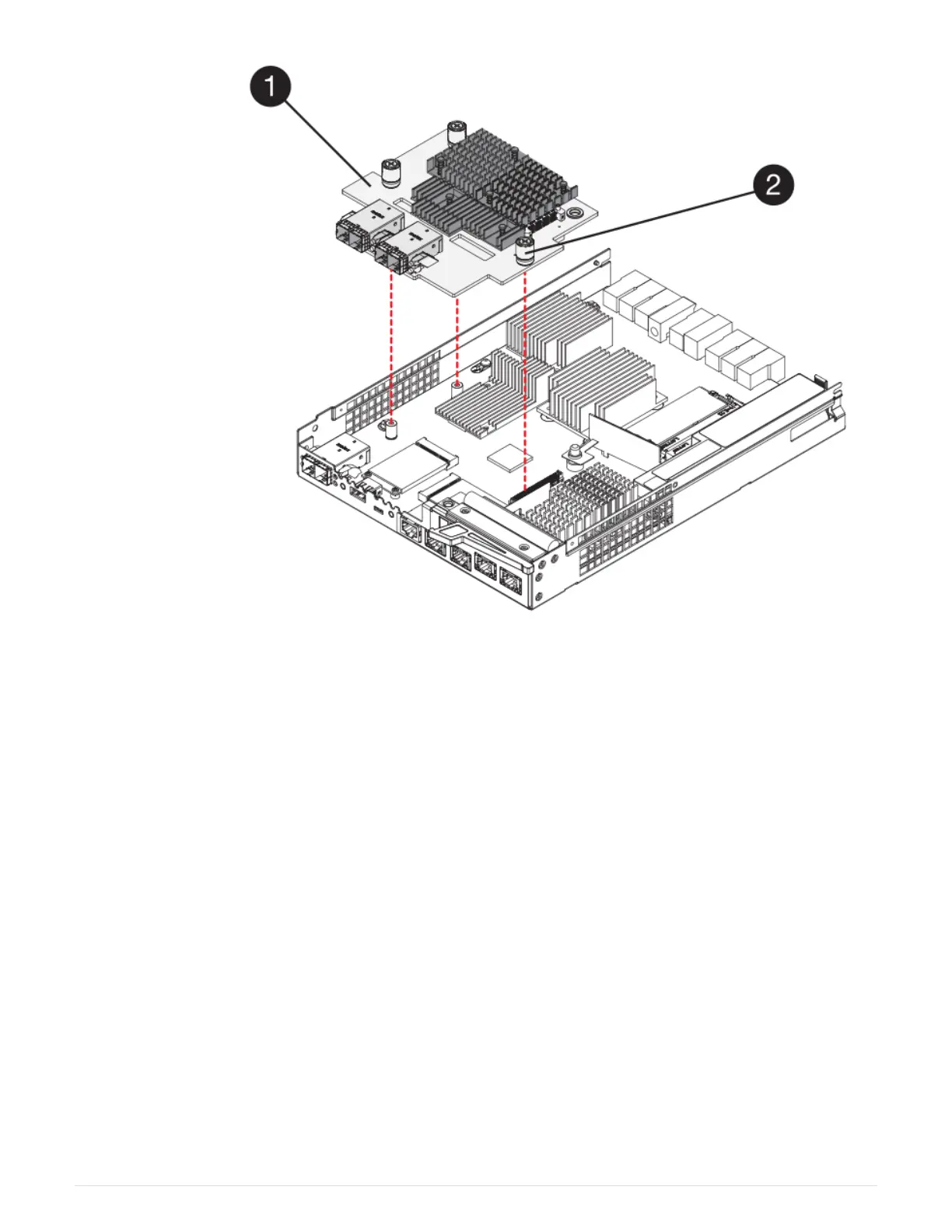

(1) Host interface card
(2) Thumbscrews
5. Place the HIC on a static-free surface.
Step 3: Install new controller (simplex)
Install a new controller canister to replace the failed one.
Step 3a: Install battery (simplex)
Install the battery into the replacement controller canister. You can install the battery that you removed from the
original controller canister or install a new battery that you ordered.
Steps
1. Unpack the replacement controller canister, and set it on a flat, static-free surface so that the removable
cover faces up.
Save the packing materials to use when shipping the failed controller canister.
2. Press down on the cover button, and slide the cover off.
3. Orient the controller canister so that the slot for the battery faces toward you.
4. Insert the battery into the controller canister at a slight downward angle.
151
