NETGEAR AX4200 User Manual

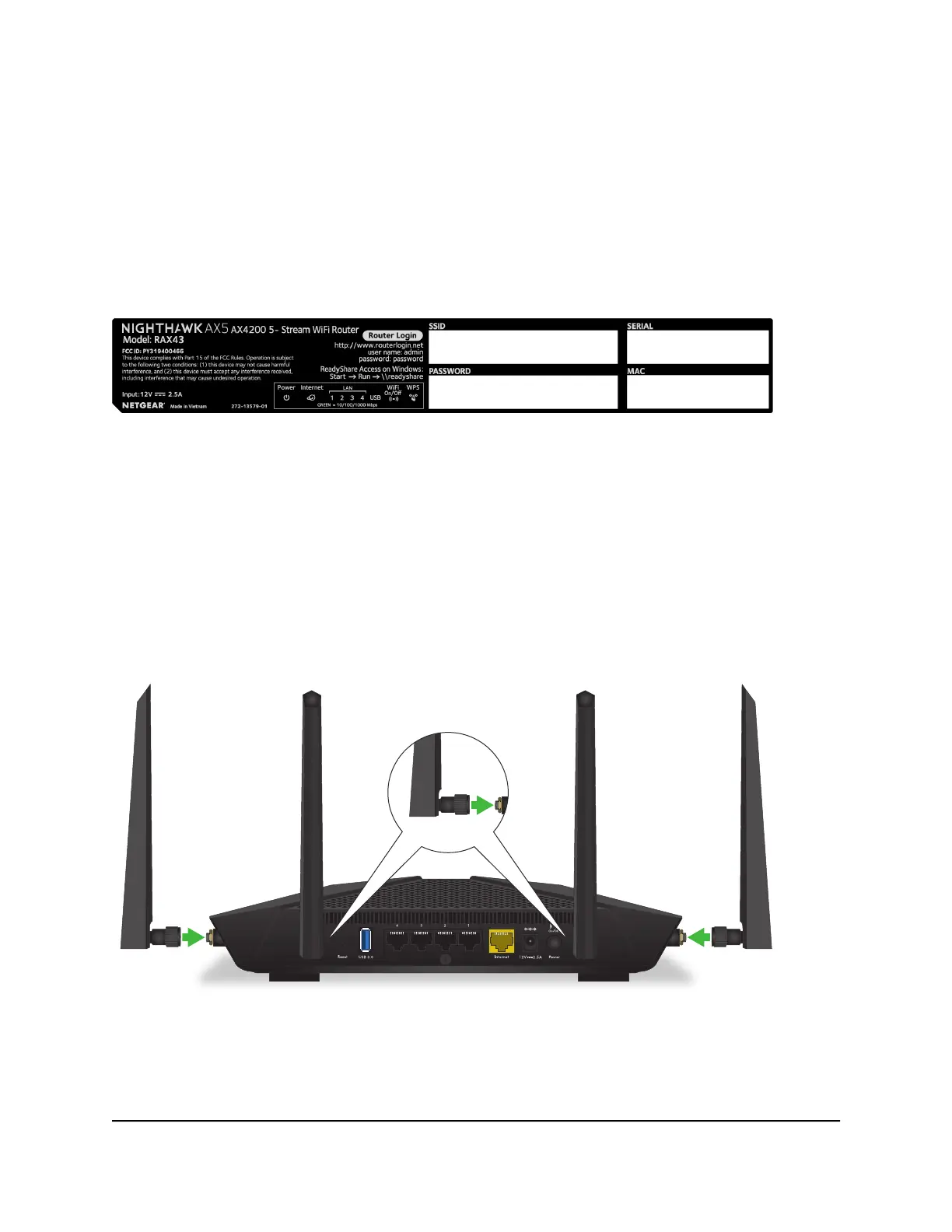

Router label
The router label shows the login information, WiFi network name (SSID), password,
serial number, and MAC address.
Figure 4. Router label
Attach and position the antennas
Before you install your router, attach the antennas to the router.
Note: Make sure to match the labels on the antennas with the labels on the router. The
antennas must be attached to the correct antenna post on the router.
After you are done attaching the antennas, position the antennas as shown.
Figure 5. Attach and position the antennas
User Manual13Hardware Setup
Nighthawk AX5 5-Stream AX4200 WiFi Router

NETGEAR AX4200 Specifications

General

WiFi Technology	WiFi 6 (802.11ax)
WiFi Performance	AX4200
Number of Bands	Tri-Band
Combined Speed	4.2 Gbps
USB Ports	1 x USB 3.0
Antenna	6 internal antennas
MU-MIMO	Yes
OFDMA	Yes
Beamforming	Yes
Ethernet Ports	1 WAN + 4 LAN Gigabit Ethernet ports
Security	WPA3
Memory	512MB RAM and 256MB Flash
