Wireless Cable Voice Gateway Model CBVG834G Adminstrators User Manual
Managing Your Network 4-3
v1.0, February 2008

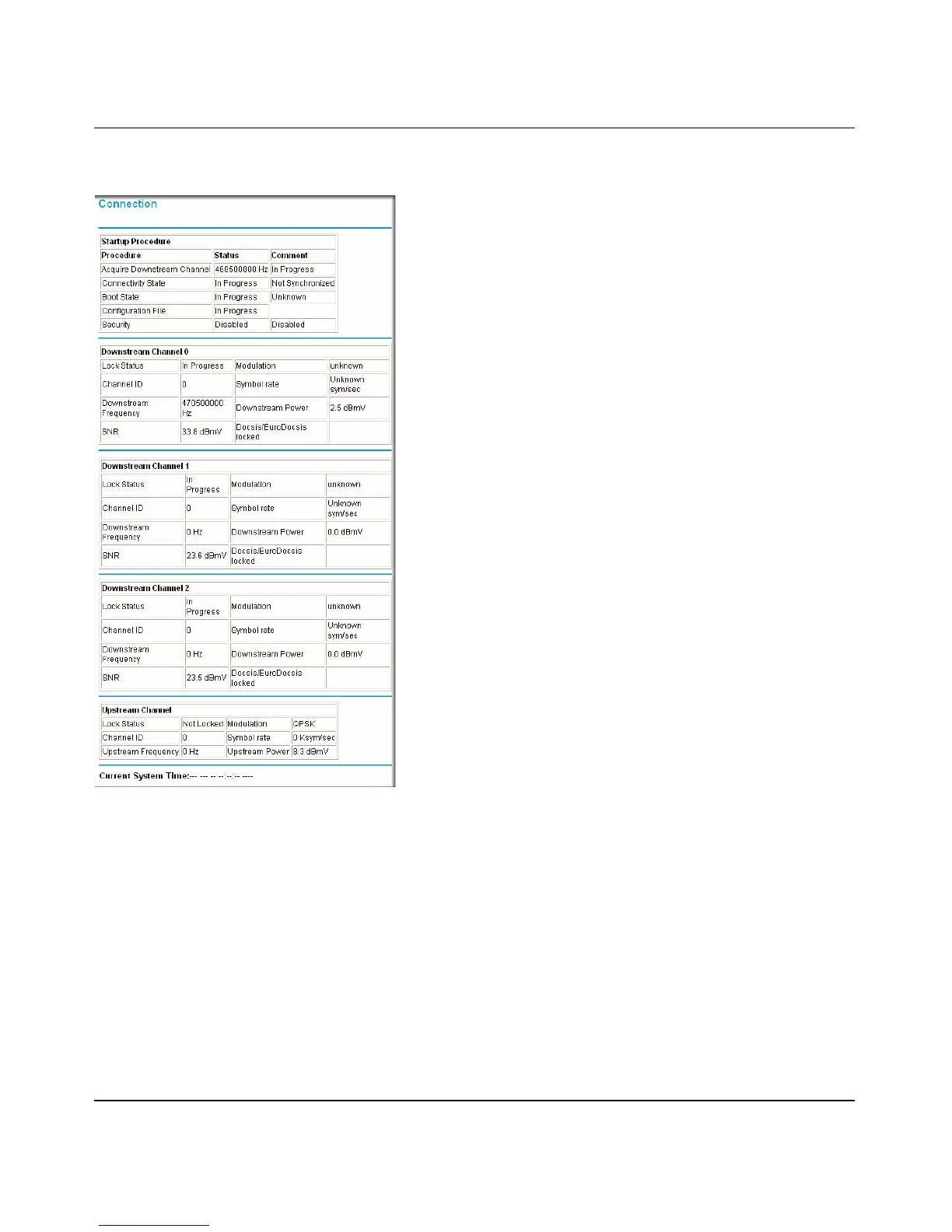

On the main menu, select Connection. The Connection screen displays:
This screen shows detailed information about the status of your cable service provider connection
that can be used for troubleshooting. The gateway goes through these steps to be provisioned:
1. Acquire and lock Downstream Channel.
2. Acquire upstream parameters and range.
3. Lock Upstream Channel.
4. Acquire IP Address through DHCP.
The date and time is acquired from your cable service provider as part of the registration
procedure.
Figure 4-2
