NETGEAR EX3700 User Manual

Extender Network Settings
23
AC750 WiF Range Extender
 To turn off the SSID broadcast to create a hidden network:
1. On a computer or WiFi device that is connected to the extender network, launch a web
browser
.
2. In the address field of your browser
, enter www.mywifiext.net.
3. When prompted, enter your email address and password.
4. Click the Menu icon
.
The extender menu displays.

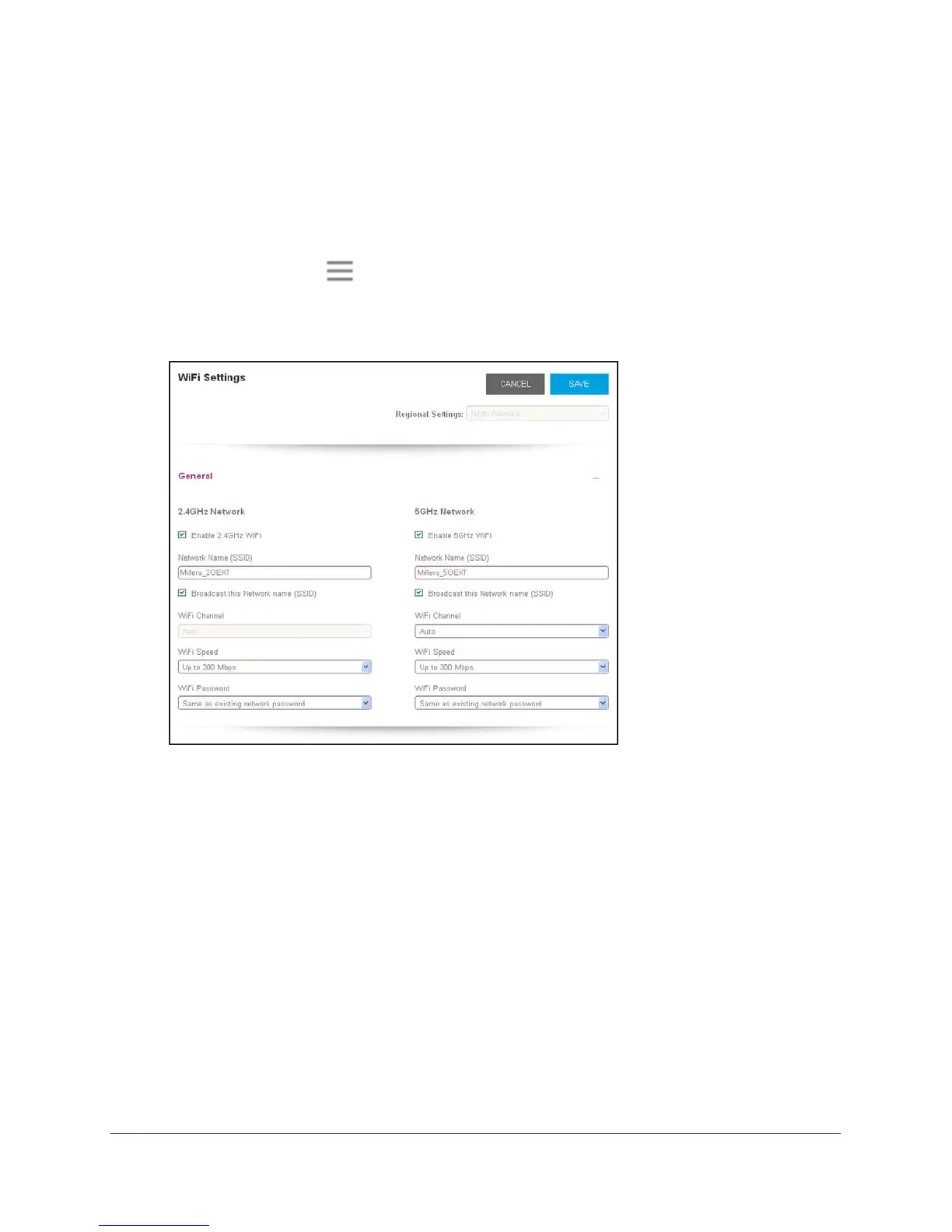

5. Select Settings > W
iFi.
6. Clear the Broadcast the Network name (SSID) check box.
7. Click the SA
VE button.
Your settings are saved.
Disable or Enable the WiFi Radios
By default, the extender’s WiFi radios broadcast signals in the 2.4 GHz and 5 GHz bands. If
you disable the WiFi radios, then no one can connect with WiFi to the extender.
 To disable or enable the WiFi radios:
1. On a computer or WiFi device that is connected to the extender network, launch a web
browser
.
2. In the address field of your browser
, enter www.mywifiext.net.
3. When prompted, enter your email address and password.

NETGEAR EX3700 Specifications

General

Type	-
Maximum transfer distance	- m
Windows operating systems supported	Yes
Power over Ethernet (PoE)	No
Product color	White
Antennas quantity	2
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPS
Wi-Fi data rate (max)	750 Mbit/s
Ethernet LAN (RJ-45) ports	1
Package depth	178 mm
Package width	143 mm
Package height	99 mm
Package weight	310 g
Shipping (inner) case width	390 mm
Shipping (inner) case height	339 mm
Shipping (inner) case length	333 mm
Shipping (inner) case net weight	4550 g
Number of layers per pallet (air)	4 pc(s)
Number of layers per pallet (sea)	6 pc(s)
Number of cartons per pallet layer	9 pc(s)
Quantity per shipping (inner) case	12 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	67.17 mm
Width	55.17 mm
Height	39 mm
Weight	130 g
