NETGEAR EX6100 Quick Start

13

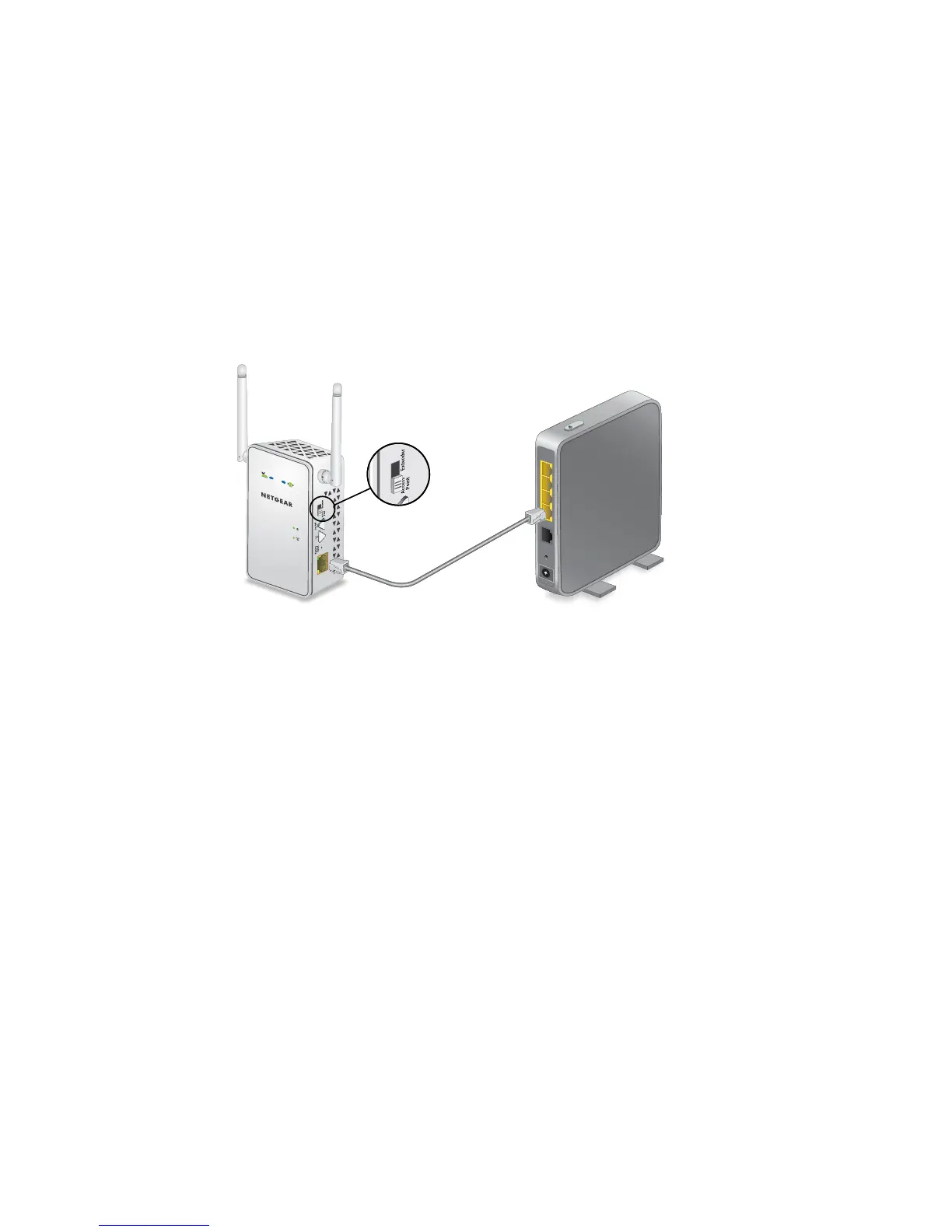

Use the Extender in Access Point Mode
You can use the extender as a WiFi access point, which creates a new WiFi
hotspot by using a wired Ethernet connection.
1. Set the Access Point/Extender switch to the Access Point
position.
2. Use an Ethernet cable to connect the Ethernet port on the extender
to an Ethernet LAN port on a router or a remote Ethernet LAN jack
with LAN access.
3. Plug the extender into an electrical outlet and wait for the Power LED
to light green.
4. If the Power LED does not light, press the Power On/Off button.
5. Use a WiFi network manager on a computer or WiFi device to find and
connect to the EX6100_NETGEAR_2GEXT or the
EX6100_NETGEAR_5GEXT WiFi network.

NETGEAR EX6100 Specifications

Weight and Dimensions

dimensions	4.80 x 2.91 x 1.50 in (122 x 74 x 38 mm)
weight	0.47 lb (0.213 kg)
