NETGEAR EX6100 User Manual

Extender Network Settings
21
AC750 WiFi Range Extender
7. Select a radio button:
• Router-to-Extender in 2.4 GHz only and Extender-to-Device in 5 GHz only
• Router to Extender in 5 GHz only and Extender-to-Device in 2.4 GHz only
8. Click the Save button.
Your settings are saved.

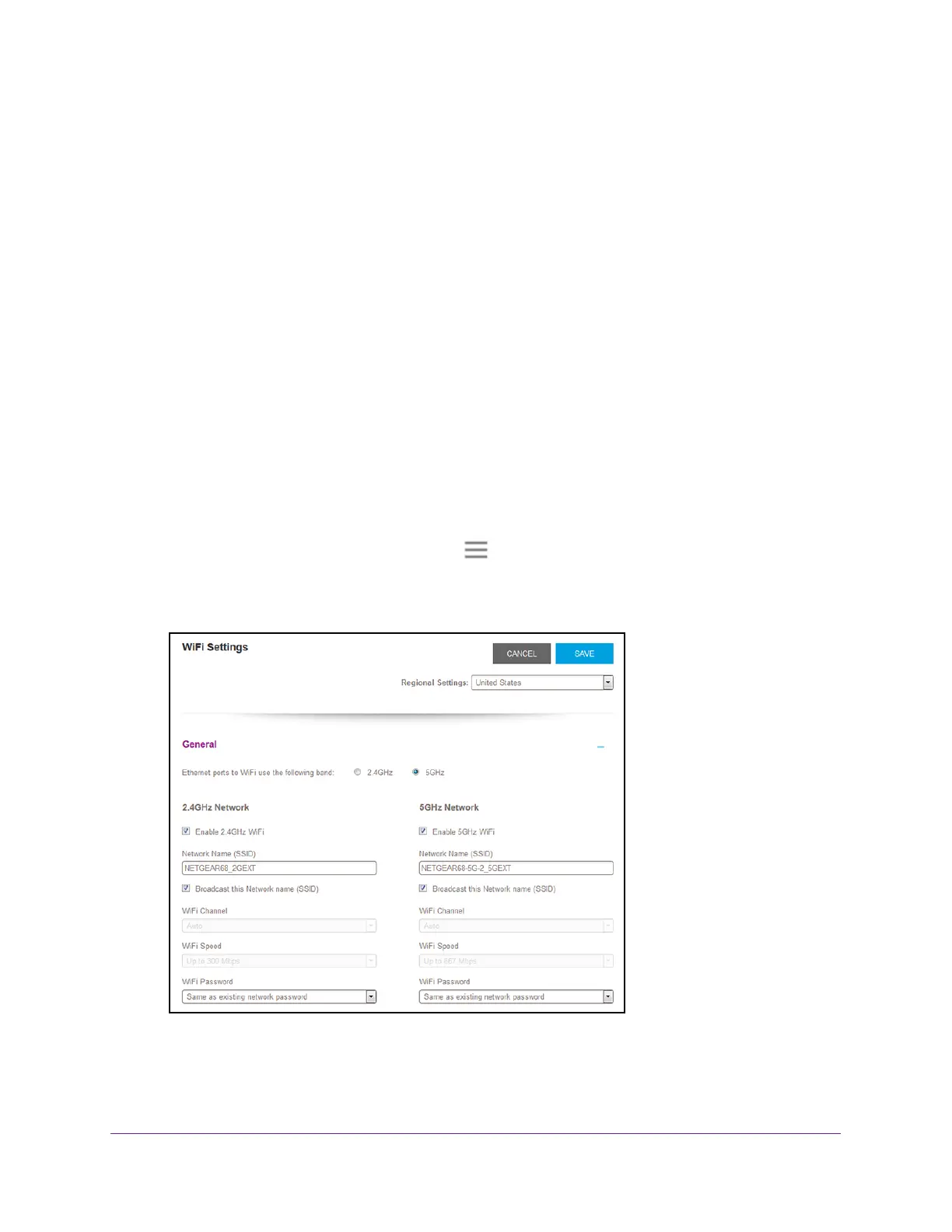

View WiFi Settings
 To view the WiFi settings:
1. On a computer or WiFi device that is connected to the extender network, launch a web
browser
.
2. In the address field of your browser
, enter www.mywifiext.net.
A login page opens.
3. Enter your user name and password and click the LOG IN button.
The Status page displays.
4. If your browser displays the Menu icon
, click it.
The extender menu displays.
5. Select Settings > W
ireless.

NETGEAR EX6100 Specifications

Weight and Dimensions

dimensions	4.80 x 2.91 x 1.50 in (122 x 74 x 38 mm)
weight	0.47 lb (0.213 kg)
