Extender Network Settings
23
Nighthawk X4 AC2200 WiFi Range Extender

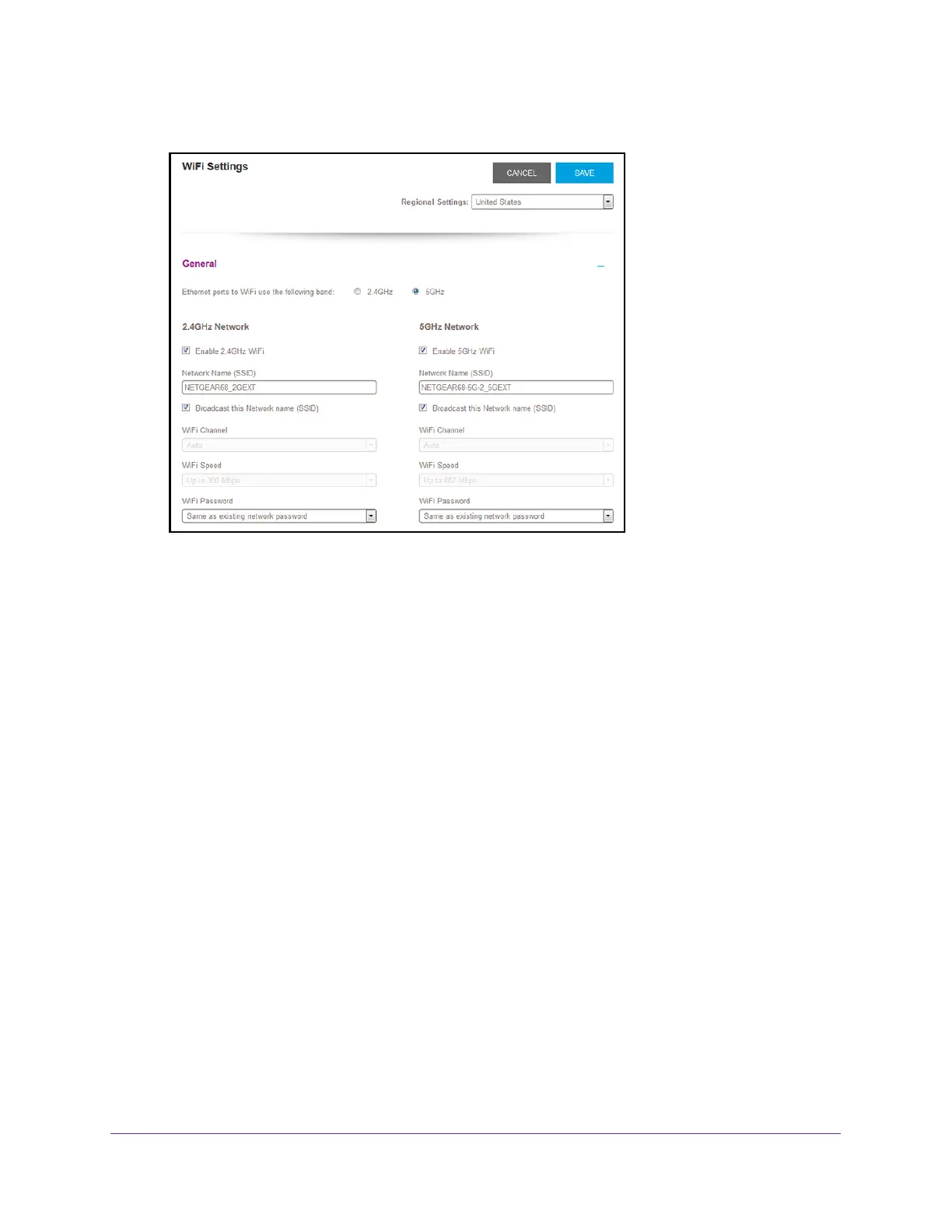

5. Select Settings > Wireless.
6. Clear the Broadcast the Network name (SSID) check box.
7. Click the SA
VE button.
Your settings are saved.
Disable or Enable the WiFi Radios
By default, the extender’s WiFi radios broadcast signals in the 2.4 GHz and 5 GHz bands. If
you disable the WiFi radios, then no one can connect with WiFi to the extender.
To enable or disable the WiFi radios:
1. On your WiFi-enabled device, open the WiFi connection manager and locate and
connect to the new extender WiFi network.
2. Launch a web browser
.
3. Enter www
.mywifiext.net in the address field of the browser.
A login window opens.
4. Enter your user name and password and click the LOG IN button.
The Status page displays.
