4.2.2. Configure the NETGEAR FS726TP Differentiated Services Values
Open the NETGEAR web interface and select Quality of Server (QoS) from the left window.
Then select DSCP from the pull down list in the right menu. The default values are to treat all
Differentiated Services (DiffServ) entries identically. Change the DiffServ entries for Call
Control (26, Assured Forwarding, AF 31 011010) and Audio (46, Expedited Forwarding EF
(101110)) to High as shown in the Figure 3 (Avaya QoS Configuration). Click Apply.
The Per Hop Behavior (PHB) Value used in on the Avaya Communications Manager (Figure 3),
is the decimal value of the DSCP entry in the NETGEAR table. The Audio PHB of 46 decimal
is 101110 binary. The Control PHB of 26 decimal is 011010 binary.

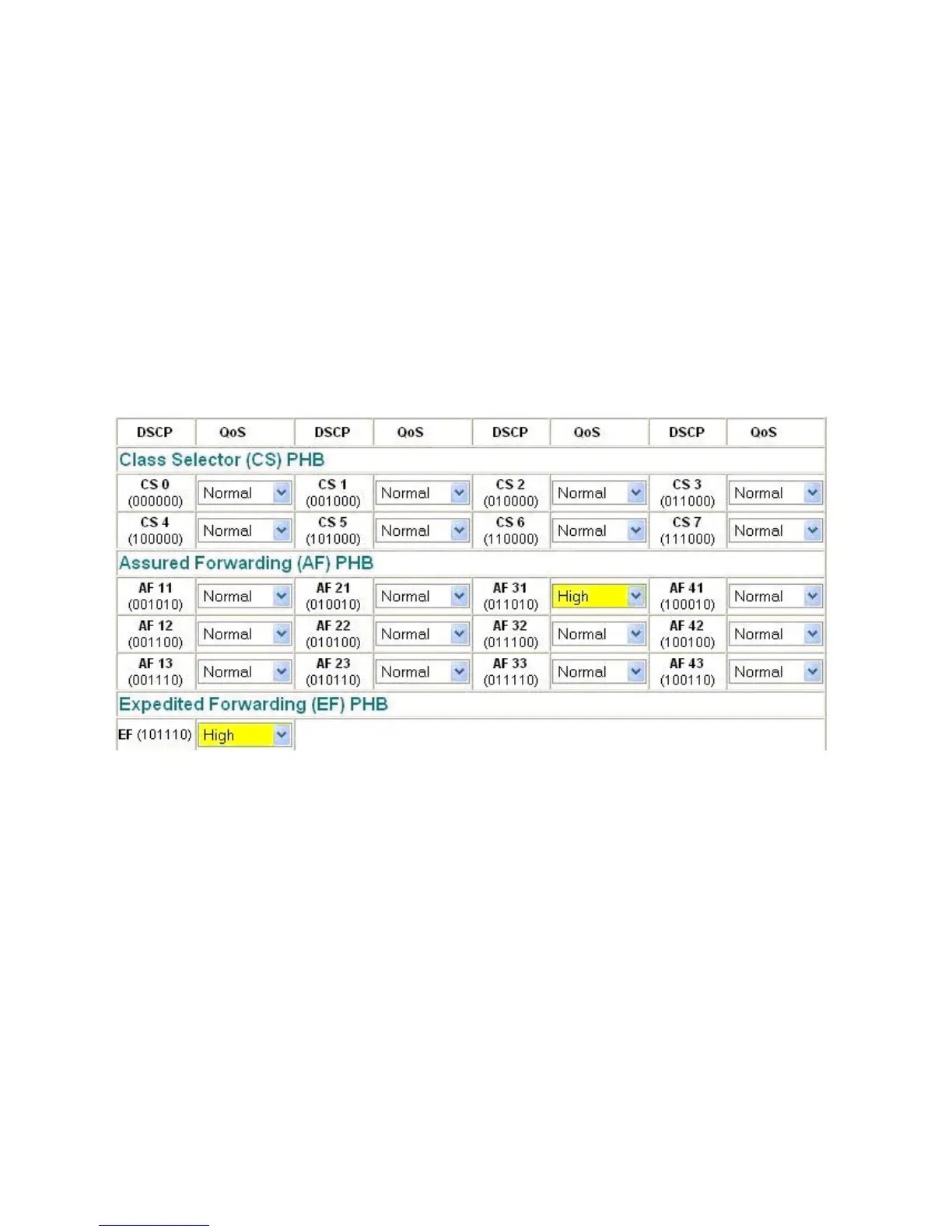

Figure 7: NETGEAR FS726TP DiffServ Configuration
