NETGEAR FVS124G Reference Manual

FVS124G ProSafe VPN Firewall 25 Reference Manual
1-7
v1.0, January 2007
Router Rear Panel
The rear panel of the ProSafe VPN Firewall 25 with 4 Gigabit LAN and Dual WAN Ports
(Figure 1-2) contains the factory defaults reset button, LAN and WAN ports, and DC power input
connection.
Viewed from left to right, the rear panel contains the following elements:
Gigabit LAN
Port LEDs
Link/Act LED
On (Green)
Blinking (Green)
Off
The LAN port has detected a link with a connected Ethernet device.
Data is being transmitted or received by the LAN port.
The LAN port has no link.
Speed LED
On (Green)
On (Amber)
Off
The LAN port is operating at 1,000 Mbps.
The LAN port is operating at 100 Mbps.
The LAN port is operating at 10 Mbps.

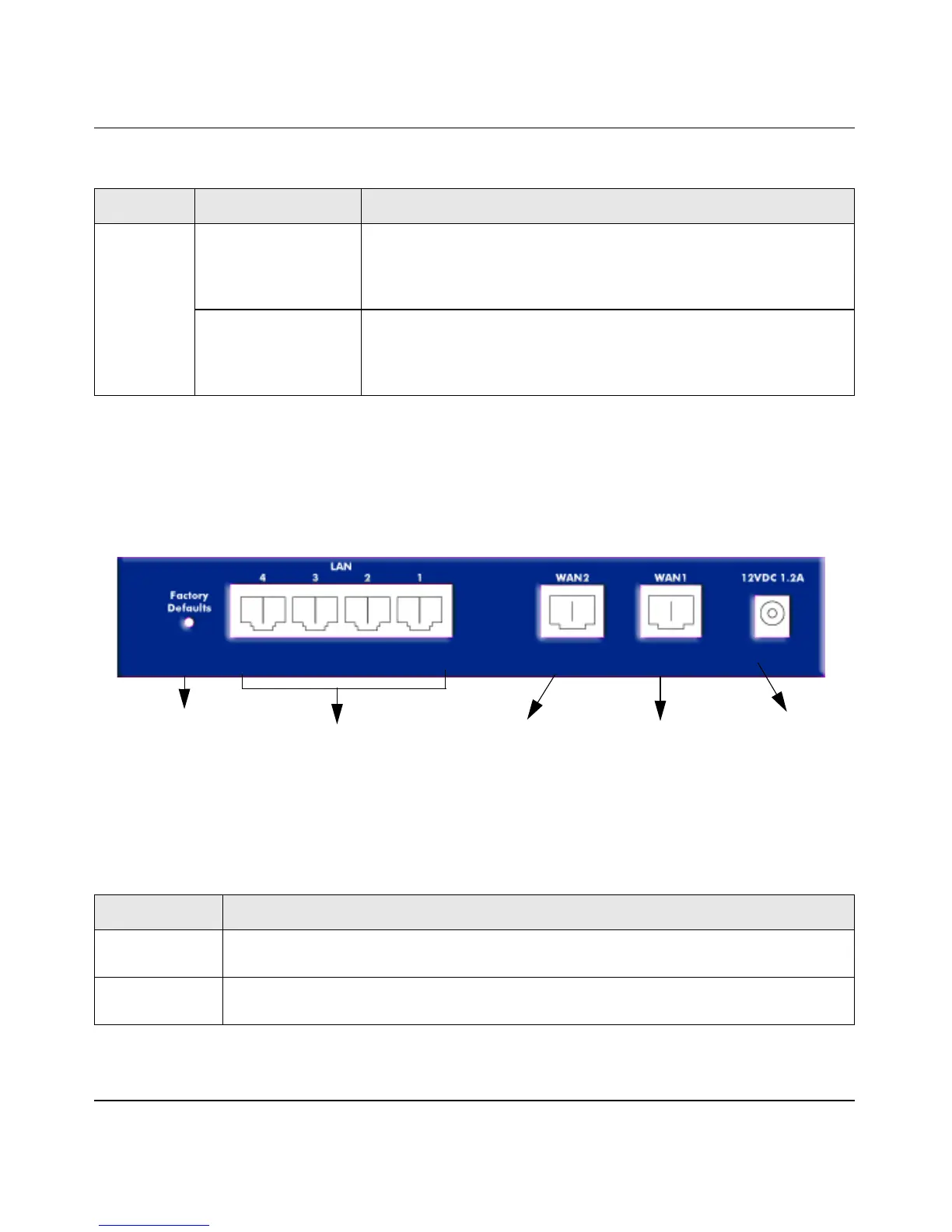

Figure 1-2
Table 1-2. FVS124G rear panel
Item Description
Factory Defaults
Button
Factory Defaults reset push button (see “” on page 1-9 for the factory defaults).
LAN Ports (local
ports)
4-port RJ-45 10/100/1000 Mbps Fast Ethernet Switch, N-way automatic speed
negotiation, auto MDI/MDIX.
Table 1-1. FVS124G front panel (continued)
Object Activity Description
Factory
Defaults
Button
LAN Ports
WAN2 Port
WAN1 Port
AC Power
Adapter
Connection

NETGEAR FVS124G Specifications

Power

power requirements	12V DC, 1.2A

System Memory

processor	200 MHz 32-bit RISC
memory	4MB Flash, 16MB DRAM

Ports & Interfaces

LAN ports	Four (4) 10/100/1000 Mbps auto-sensing, AutoUplink RJ-45 ports
WAN ports	Two (2) 10/100Mbps Ethernet RJ-45 ports

Weight and Dimensions

dimensions	7.45 x 4.85 x 1.26 in. (18.92 x 12.31 x 3.19 cm)
weight	1.37 lbs. (0.62 kg)
