NETGEAR GS716TP User Manual

Table 2. Front panel LEDs (Continued)
DescriptionLED
Solid green. The port LEDs function in Ethernet Mode.
Solid yellow. The port LEDs function in PoE Mode.
LED Mode LED
The LED Mode Select button is set to Link/ACT mode:
Off. No Ethernet link is established.
Solid green. A valid 1000 Mbps Ethernet link is established.
Blinking green. The port is transmitting or receiving packets at 1000 Mbps.
Solid yellow. A valid 10 Mbps or 100 Mbps Ethernet link is established.
Blinking yellow. The port is transmitting or receiving packets at 10 Mbps or 100
Mbps.
RJ-45 LEDs for ports 1–16
The LED behavior depends
on the position of the LED
Mode Select button.
The LED Mode Select button is set to PoE mode:
Off. The port is not delivering PoE.
Solid green. The port is delivering PoE.
Solid yellow. A PoE fault occurred. For more information, see PoE troubleshooting
suggestions on page 34.
Off. No SFP module link is established.
Solid green. A valid 1000 Mbps link is established.
Blinking green. The SFP port is transmitting or receiving packets at 1000 Mbps.
Link and ACT LEDs for ports
17 and 18
Back panel
The back panel provides a Kensington lock and AC power receptacle. (The switch uses
a fixed, internal power supply.)
The following figure shows the back panel for model GS716TP. The AC receptacle label
states 100-124V~50/60Hz, 3.8A max.

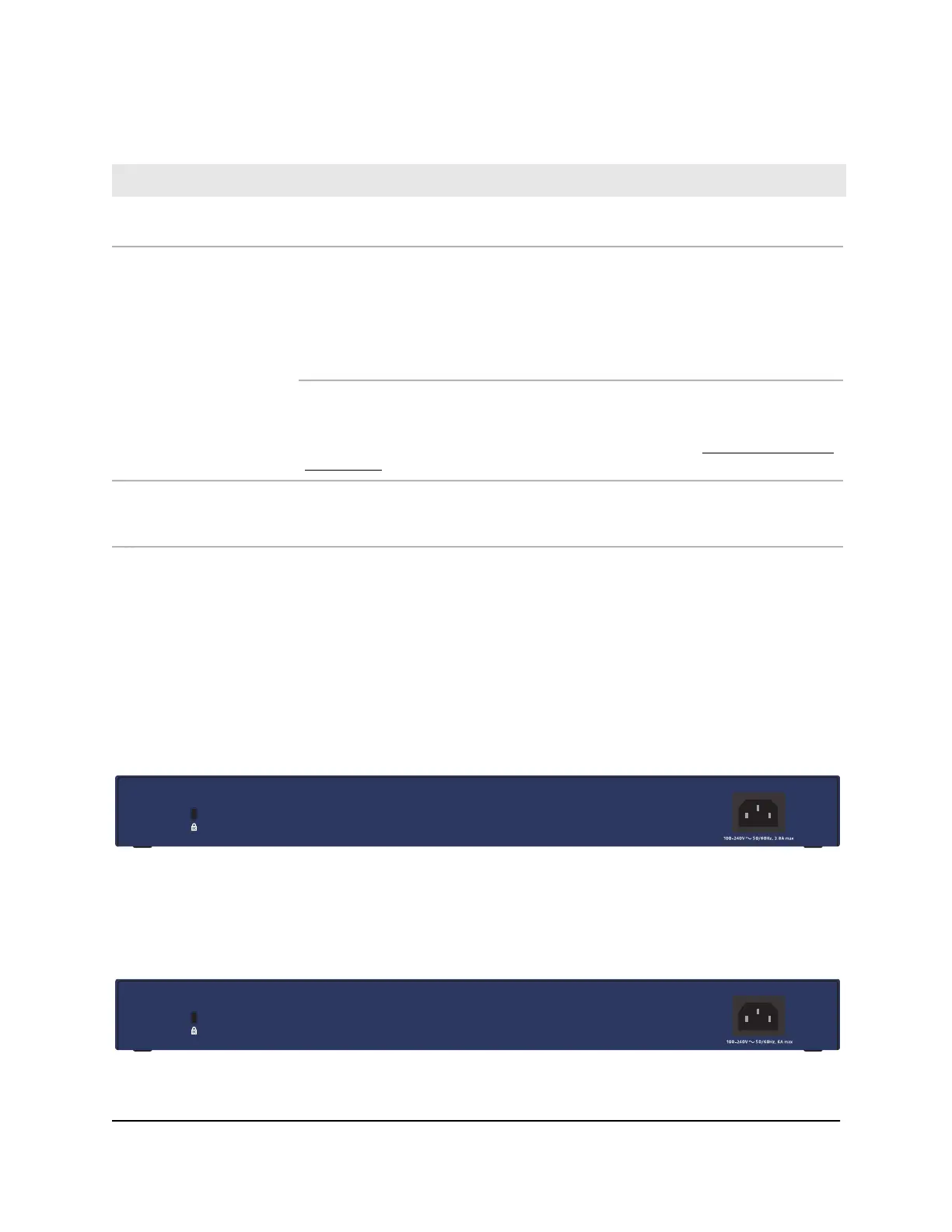

Figure 3. Back panel model GS716TP
The following figure shows the back panel for model GS716TPP. The AC receptacle
label states 100-124V~50/60Hz, 6A max.
Figure 4. Back panel model GS716TPP
Hardware Installation Guide14Hardware Overview
16-Port Gigabit (Hi-Power) PoE+ Ethernet Smart Managed Pro Switch with 2 SFP Ports

NETGEAR GS716TP Specifications

General

Switch type	Managed
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Yes
Installed SFP modules quantity	2
Installed SFP+ modules quantity	-
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Ethernet LAN data rates	10, 100, 1000 Mbit/s
MAC address table	16000 entries
Product color	Blue
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	3000 g
