NETGEAR R6300 User Manual

Administration
77
R6300 WiFi Router 802.11ac Dual Band Gigabit
View Logs of Web Access or Attempted Web Access
The log is a detailed record of the websites you have accessed or attempted to access. Up to
256 entries are stored in the log. Log entries appear only when keyword blocking is enabled
and no log entries are made for the trusted user
.

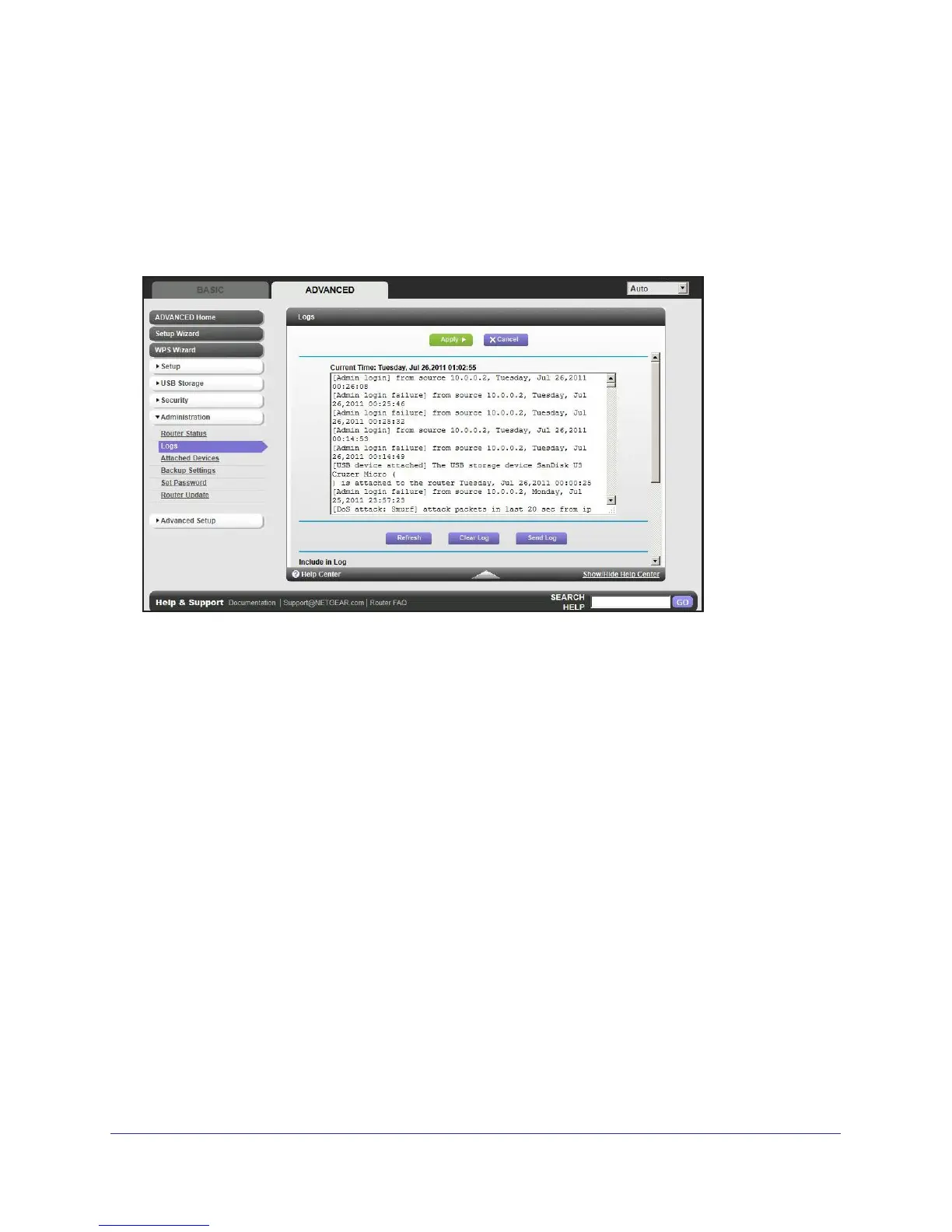

Select Advanced > Administration > Logs. The Logs screen displays.
The log screen shows the following information:
• Date and time.
The date and time the log entry was recorded.
• Source IP.
The IP address of the initiating device for this log entry.
• T
arget address. The name or IP address of the website or news group visited or to which
access was attempted.
• Action. Whether the access was blocked or allowed.
To refresh the log screen, click the Refresh button.
To clear the log entries, click the Clear Log button.
To email the log immediately, click the Send Log button.

NETGEAR R6300 Specifications

Ports & interfaces

USB ports	2 USB 2.0 ports
Ethernet ports	5 Gigabit Ethernet ports
WAN ports	1 WAN port

System Memory

flash memory	128 MB
RAM	128 MB
memory type	flash and RAM

Weight and Dimensions

dimensions	205 x 255 x 77 mm
weight	654 g
