Reference Manual for the RangeMax 240 Wireless Router WPNT834
2-8 Introduction
v1.1, January 2006
The Router’s Rear Panel
The rear panel of the WPNT834 router contains the items listed below.
Viewed from left to right, the rear panel contains the following features:
1. Four Local (LAN) 10/100 Mbps Ethernet ports for connecting the router to the local
computers.
2. Internet (WAN) Ethernet port for connecting the router to a cable or DSL modem.
3. Factory Default Reset push button for “Restoring the Default Configuration and Password” on
page 7-7.
4. AC power adapter outlet for 12V DC @ 1A output, 12W maximum.
5. Antennae.

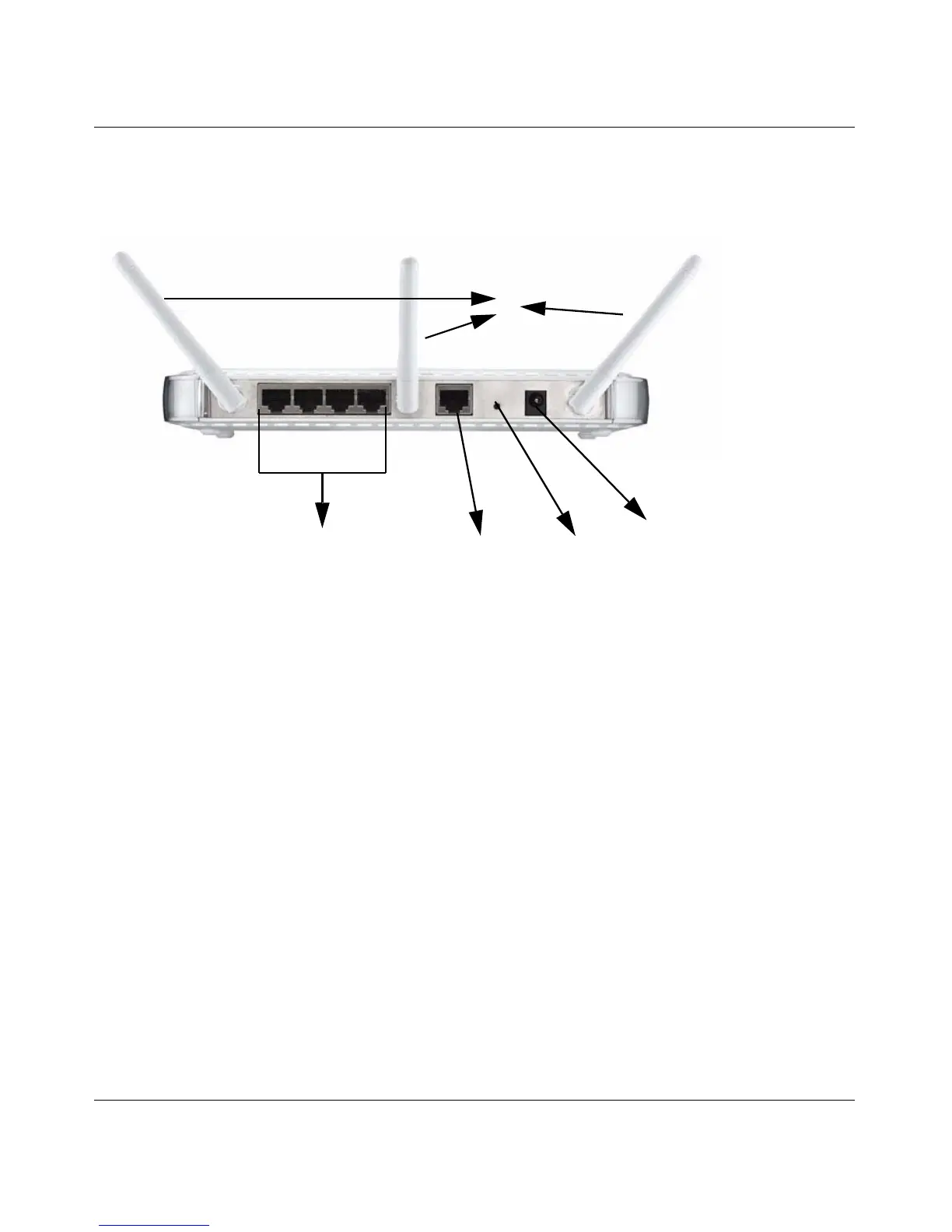

Figure 2-2
2
1
4
3
5
