NETGEAR RangeMax WPNT511 Installation Guide

October 26, 2005
This symbol was placed in accordance with the European Union Directive
2002/96 on the Waste Electrical and Electronic Equipment (the WEEE
Directive). If disposed of within the European Union, this product should be
treated and recycled in accordance with the laws of your jurisdiction
implementing the WEEE Directive.
© 2005 by NETGEAR, Inc. All rights reserved. NETGEAR is a registered trademark of NETGEAR, Inc. in the
United States and/or other countries. Other brand and product names are trademarks or registered trademarks of
their respective holders. Information is subject to change without notice.

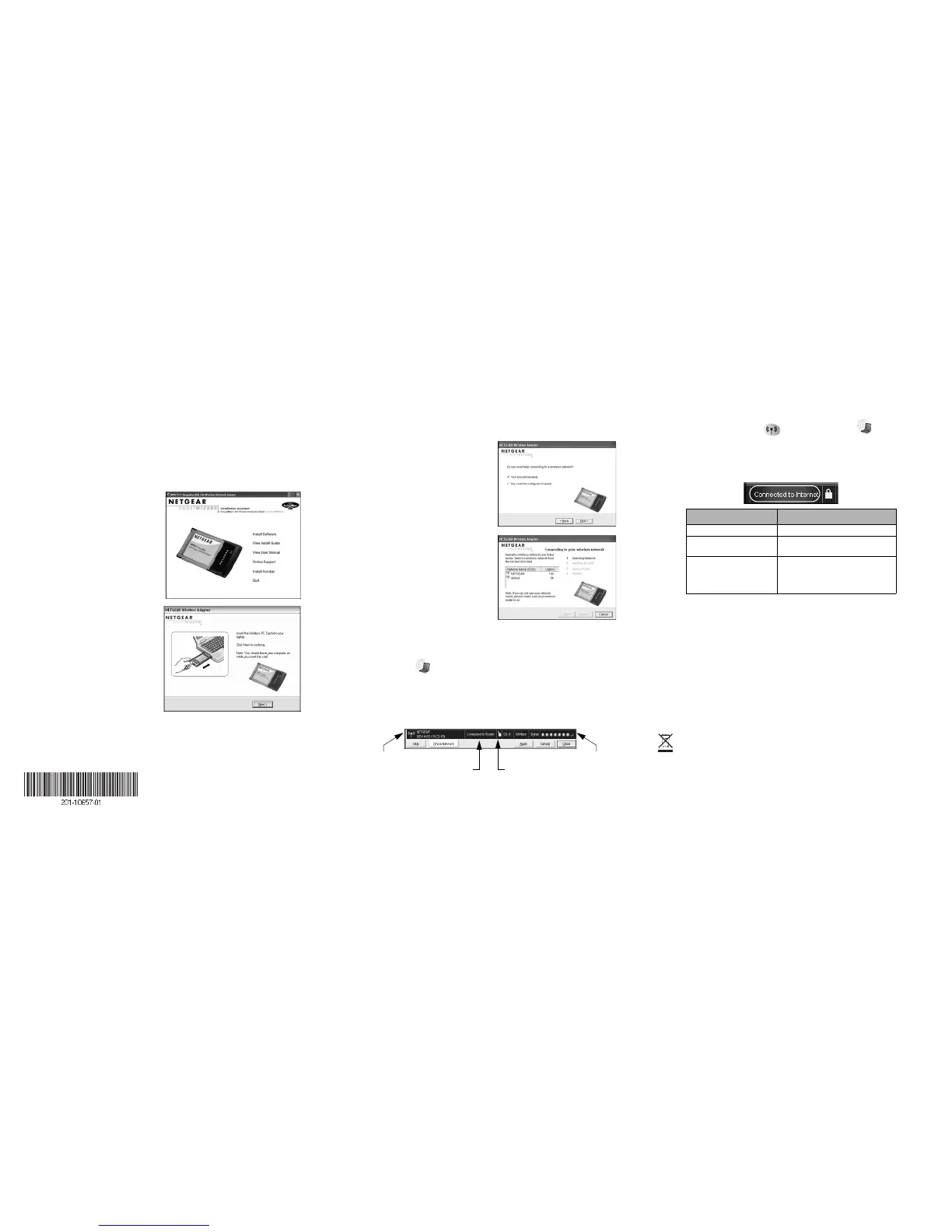

Windows 2000 SP4
Installation
1. First, install the WPNT511 software.
Insert the NETGEAR CD. If the CD
main page does not appear, double
click autorun.exe on
the CD.
a. Click the Install Software link
and the Smart Wizard starts.
b. Follow the Wizard steps, and click
Next to continue.
c. When the Installation Complete
message appears, click Next.
2. Now, insert the wireless
notebook adapter.
When prompted, insert your wireless
notebook adapter.
3. Use the Smart Wizard to set up your WPNT511.
a. You will be prompted to let the wizard
help you select a network
(recommended).
Click Next to accept.
b. Select the wireless network from the
drop-down list, and the wizard records
your choice.
Note: Hidden networks do not broadcast
the Network Name (SSID). These
networks are included in the drop-down
list, but the Network Name (SSID) is
blank.
If the network uses security, then the
Smart Wizard detects it.
c. Follow the Wizard steps for Security (if used) and for saving a Profile.
d. After you have reviewed the settings, click Finish.
The WPNT511 icon appears in the system tray and on the desktop; and the
Settings page opens. The wizard initiates your wireless connection. It could take up to
a minute for your wireless connection to be established.
4. Use the status bar to verify your wireless connectivity.
The status bar is located at the bottom of the Settings page.
connection
status
Internet/router unlocked: network
signal strength
indicator
connection indicator does not use security
• The connection status indicator and the WPNT511 icon show the status of
the connection.
• For details about the icons in the status bar, the WPNT511 LEDs, and troubleshooting
tips, see the User Manual on the NETGEAR CD.
• The Internet/Router connection indicator shows the progress of your connection.
Technical Support
Thank you for selecting NETGEAR products.
After completing the Smart Wizard configuration assistant, locate the serial number on the
bottom label of your product and use it to register your product at
http://www.NETGEAR.com/register.
Registration on the Web site or over the phone is required before you can use our
telephone support service. The phone numbers for worldwide regional customer support
centers are on the Warranty and Support Information card that came with your product.
Go to
http://kbserver.netgear.com for product updates and Web support.
Connection Indicator Description
Connected to Internet Wireless Internet connection OK.
Connected to Router Wireless connection to router OK
but no Internet connection at router.
___.___.___.___ or
169.254..x.x
Wireless connection to a router OK
but problem with the router. See the
online help or User Manual for
troubleshooting tips.

NETGEAR RangeMax WPNT511 Specifications

Frequency Range

frequency (US)	2.412 ~ 2.462 GHz
frequency (Japan)	2.412 ~ 2.472 GHz
frequency (Europe ETSI)	2.412 ~ 2.472 GHz

Wireless Speeds

wireless speeds	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 72, 96, 108, 126, 240 Mbps
compatible standards	802.11b, 802.11g

Weight and Dimensions

dimensions	4.84 x 2.13 x .33 in (123 x 54 x 8.5 mm)
weight	1.9 oz (56g)
