Rear Panel ReadyNAS 628X
The following figure shows the rear panel of the ReadyNAS 628X.

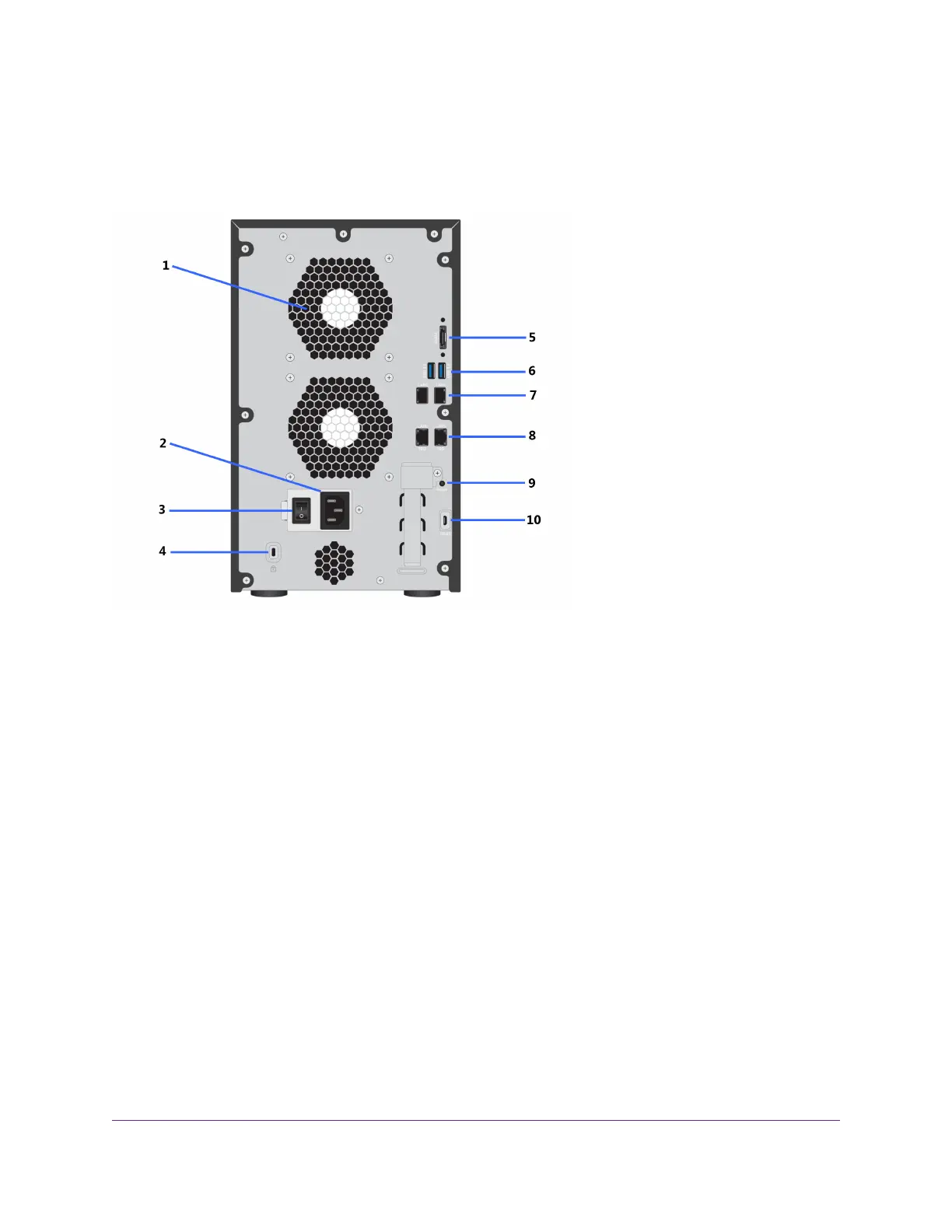

Figure 55. Rear panel ReadyNAS 628X
1. Exhaust fan
2. Power cable socket
3. Power switch
4. Kensington lock
5. eSATA port
6. USB 3.0 ports
7. 1 GbE LAN ports with LED status indicators
8. 10 GbE LAN ports with LED status indicators
9. Reset button
10. Micro USB console connector (marked as UART)
NETGEAR ReadyNAS 528X and 628X
143
ReadyNAS OS 6 Desktop Storage Systems
