Front and Side Panels
The following figure shows the front and side panels of the ReadyNAS 212.

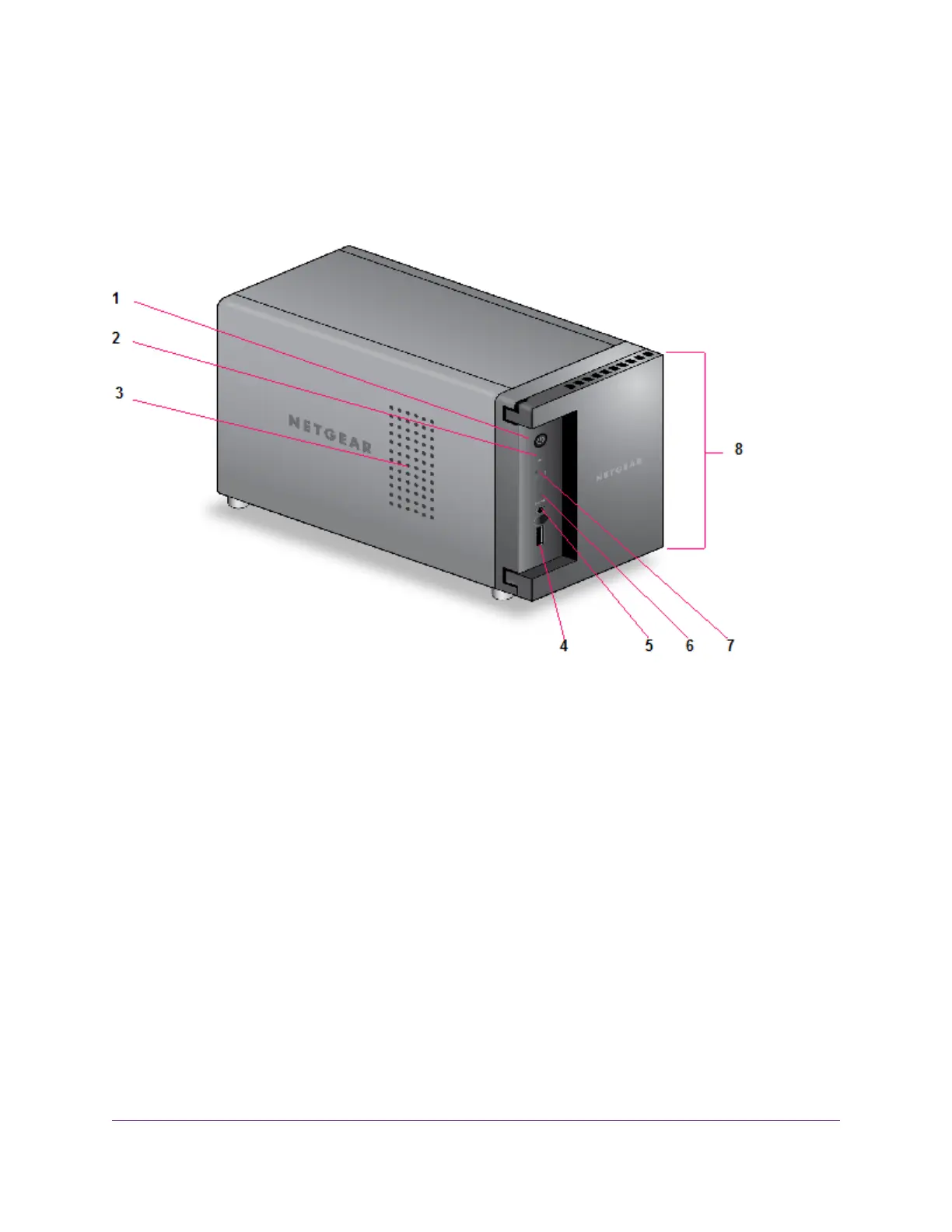

Figure 14. ReadyNAS 212 front and side panels
1. Power button and LED
2. Disk activity LED
3. Exhaust vent
4. USB 3.0 port
5. Backup button
6. USB and backup status LED
7. Disk 1 and Disk 2 LEDs
8. Drive bay door
Drive Bays
The following figure shows the drive bays of the ReadyNAS 212.
NETGEAR ReadyNAS 212
46
ReadyNAS OS 6 Desktop Storage Systems
